SUN-70/75/80/90/100/110K-G03(Bangladesh)

Three Phase | 70-110kW | 6 MPPT

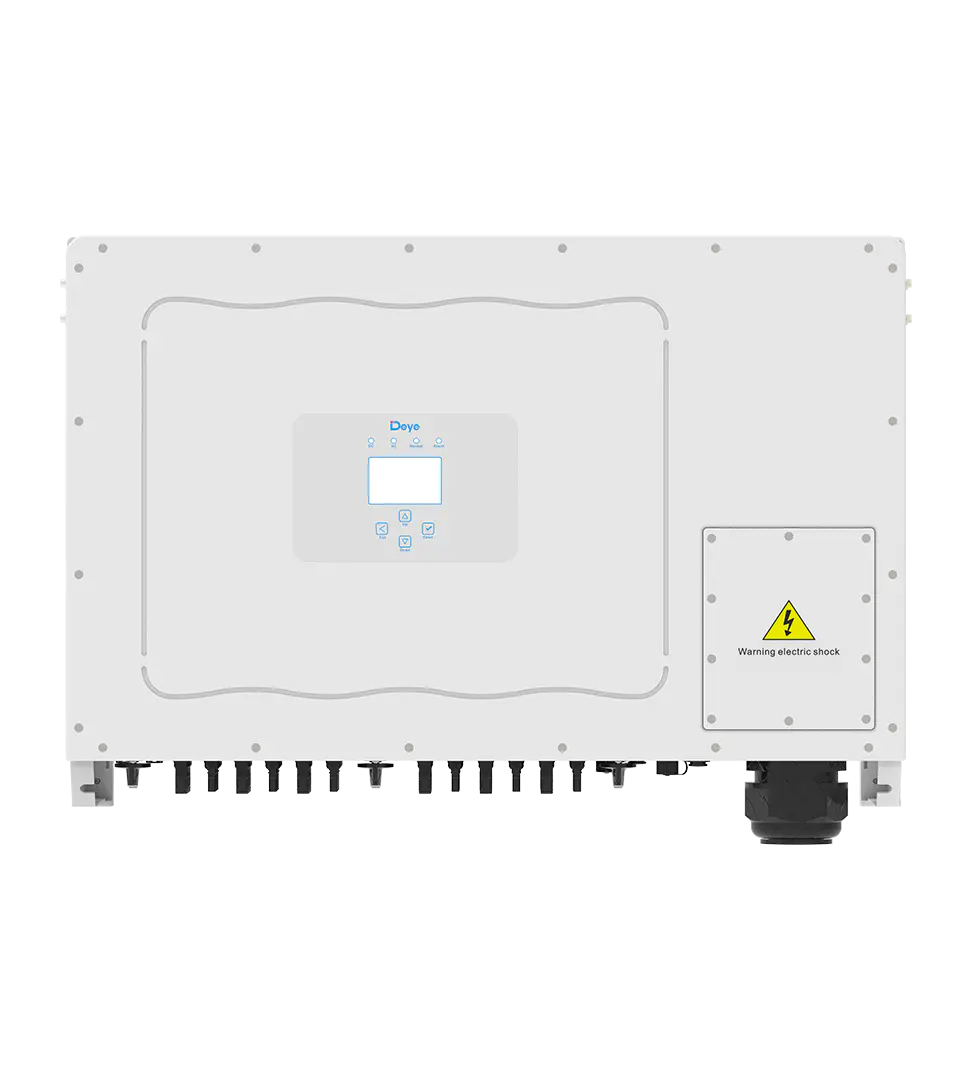

SUN-70/75/80/90/100/110K-G03(Bangladesh)
  • SUN-70/75/80/90/100/110K-G03(Bangladesh)
  • SUN-70/75/80/90/100/110K-G03(Bangladesh)
  • SUN-70/75/80/90/100/110K-G03(Bangladesh)
  • SUN-70/75/80/90/100/110K-G03(Bangladesh)
  • Max. 6 MPP trackers, Max. efficiency up to 98.8%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Type II DC/AC SPD
  • Anti-PID function (Optional)
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(70-110)K-G03
  • Feedback
Model SUN-70K-G03 SUN-75K-G03 SUN-80K-G03 SUN-90K-G03 SUN-100K-G03 SUN-110K-G03
PV String Input Date
Max. PV Input Power(kW) 91 97.5 104 135 150 150
Max. PV Input Voltage(V) 1000
Start-up Voltage(V) 250
MPPT voltage range(V) 200-850
Rated PV Input voltage(V) 600
Max. Input Short Circuit Current (A) 60+60+60+60 60+60+60+60+60+60
Max. Operating PV Input Current(A) 40+40+40+40 40+40+40+40+40+40
No. of MPP Trackers/No. of Strings per MPP Tracker 4/4+4+4+4 6/4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(kW) 70 75 80 90 100 110
Max. AC Output Apparent Power(kVA) 77 82.5 88 99 110 121
Rated AC output current (A) 106.1/101.5 113.6/108.7 121.2/115.9 136.4/130.4 151.5/144.9 166.7/159.4
Max. AC Output Current(A) 116.7/111.6 125/119.6 133.3/127.5 150/143.5 166.7/159.4 183.3/175.4
Rated output voltage/range (V) 220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.70% 98.80%
Euro Efficiency 98.10% 98.20%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection Yes
Residual Current Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch Yes
Interface
Communication Interface

RS485/RS232 /WiFi/LAN

LCD/LED Display

LCD 240 × 160
General Data
Operating Temperature Range (°C) -25 to +60℃
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤ 55
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 824mm*516mm*312.7mm（Excluding connectors and brackets）
Weight [kg] 81
Warranty [year] Standard 5 years, extended warranty
Type Of Cooling Intelligent air cooling
Grid Regulation

IEC 61727,IEC 62116,CEI 0-21,CEI 0-16,EN 50549， NRS 097,RD 140,UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105,VDE-AR-N 4110
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
