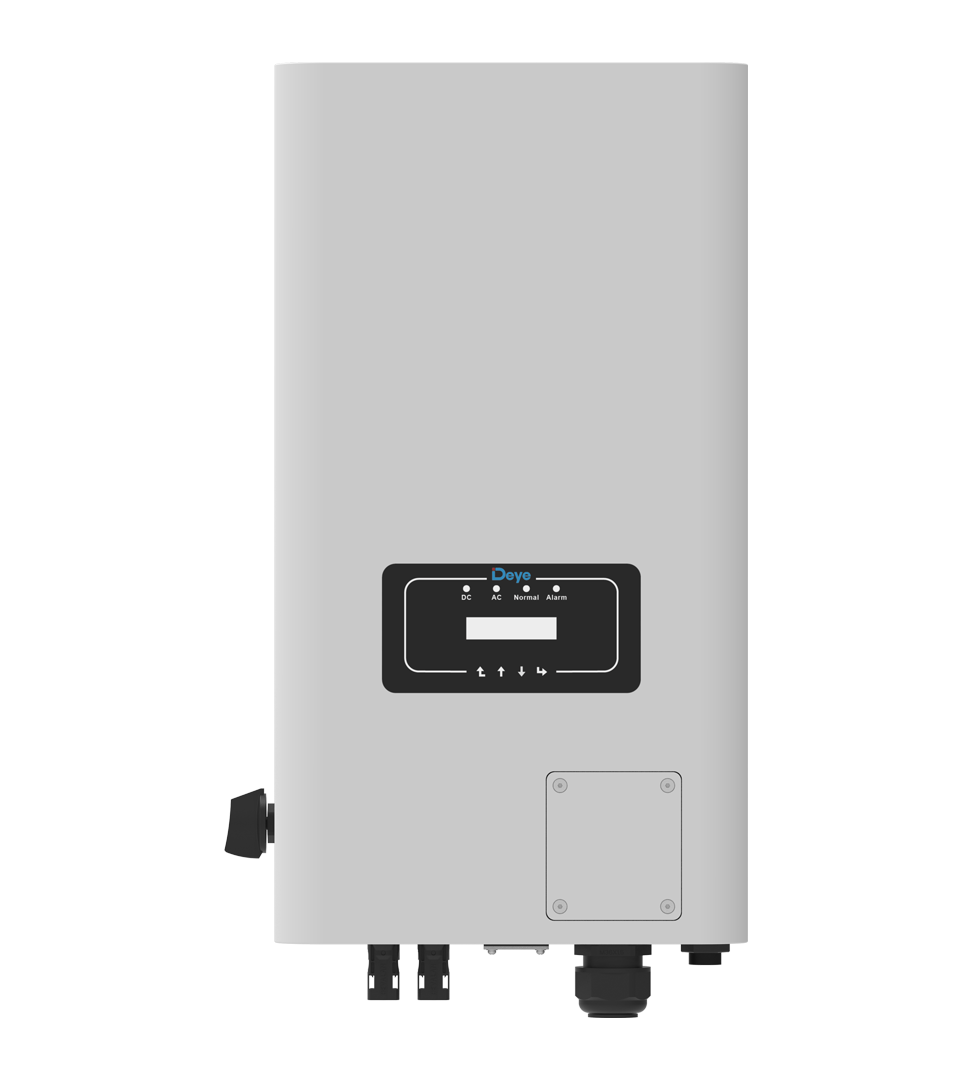

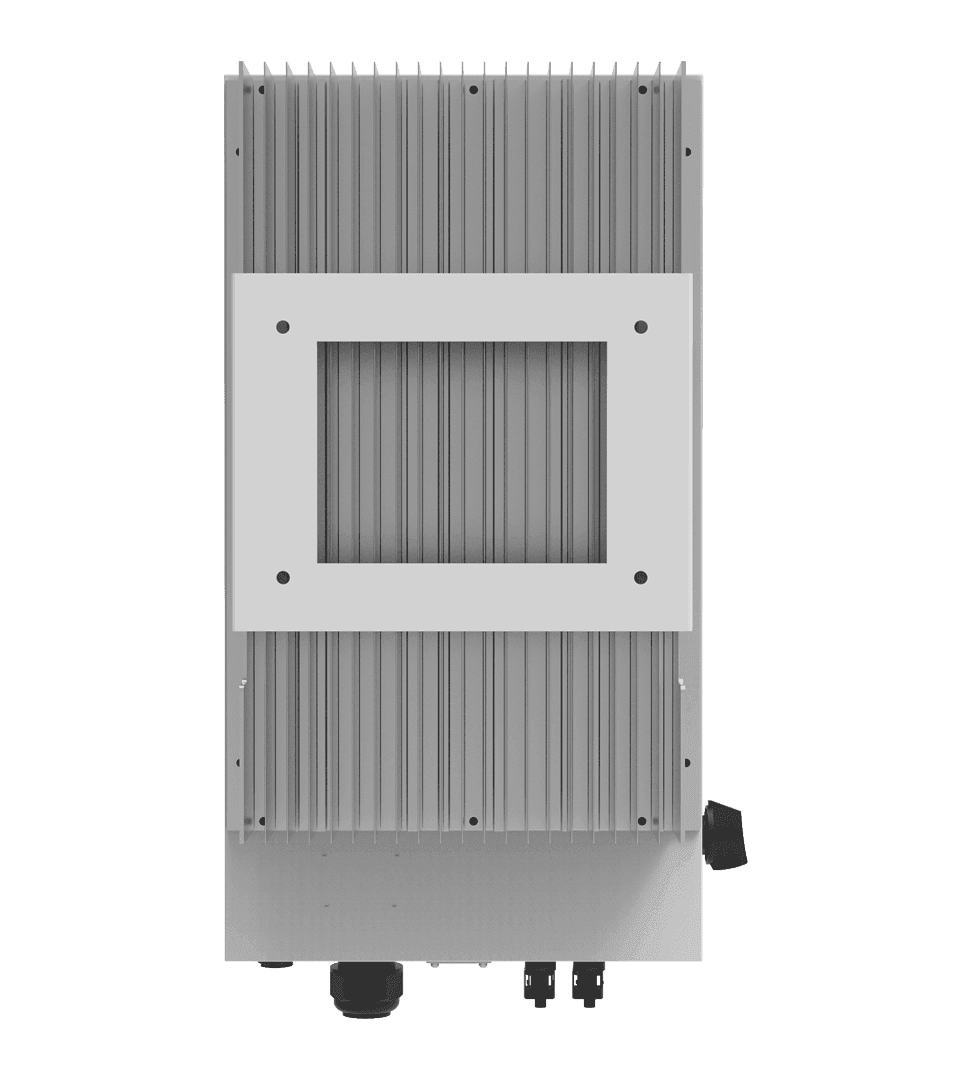

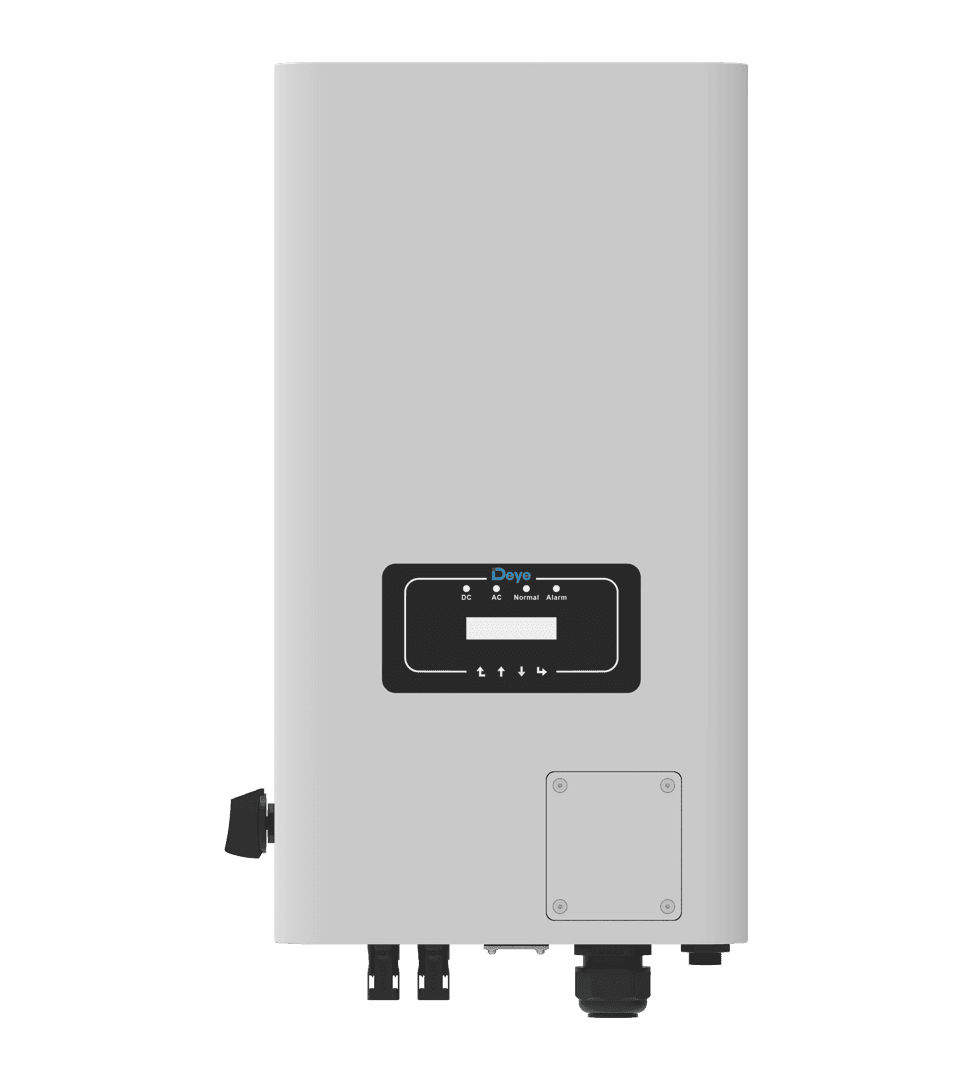

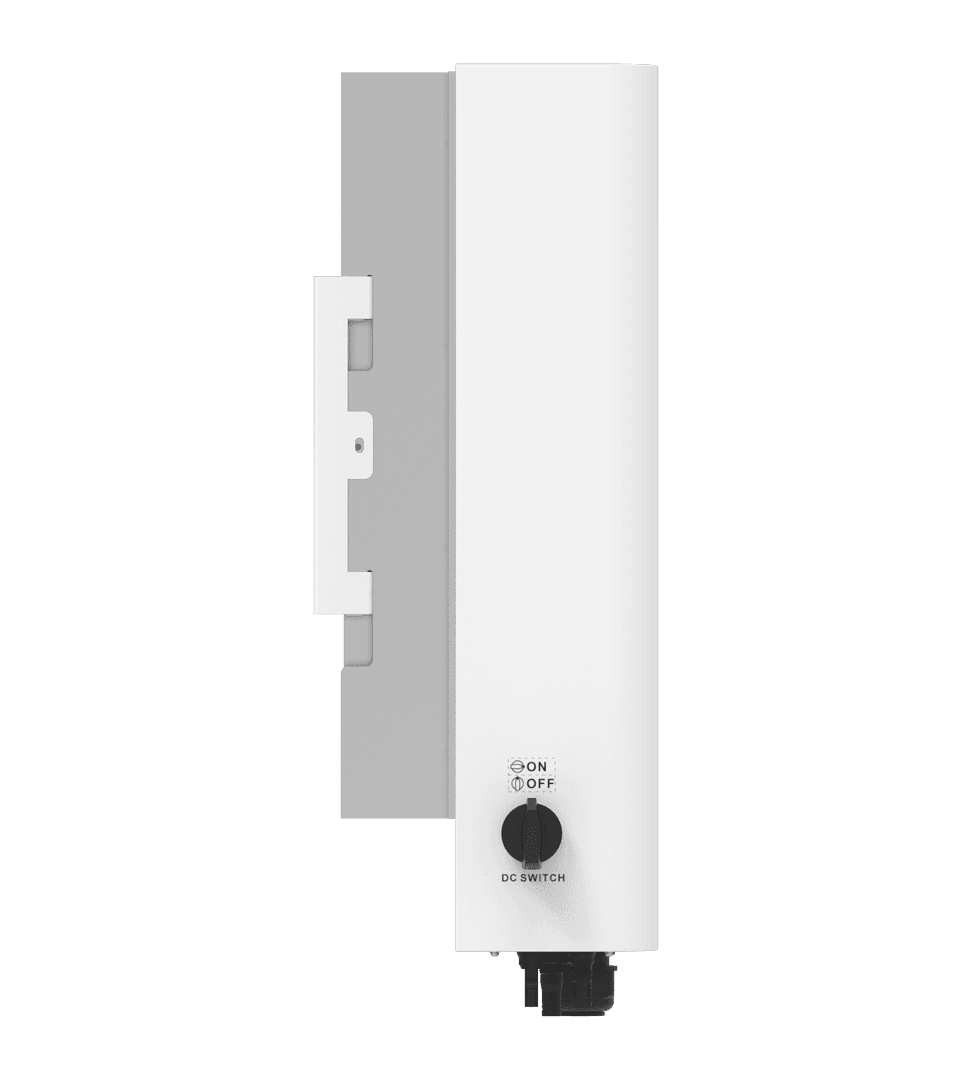

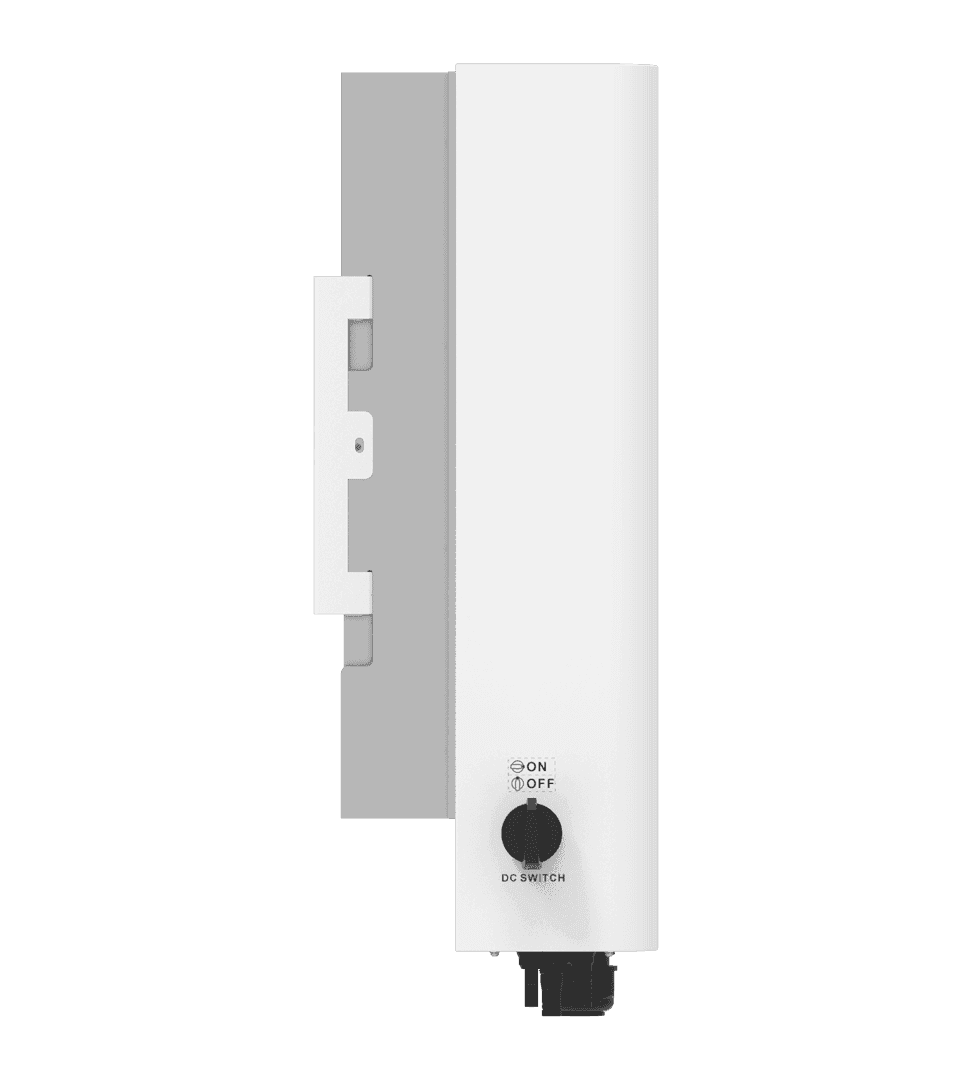

SUN-6/8K-G06P3-EU-BM2-LV-P1

Three Phase  | 6-8kW |  2 MPPT | Low Voltage | 127/220Vac

SUN-6/8K-G06P3-EU-BM2-LV-P1
  • SUN-6/8K-G06P3-EU-BM2-LV-P1
  • SUN-6/8K-G06P3-EU-BM2-LV-P1
  • SUN-6/8K-G06P3-EU-BM2-LV-P1
  • SUN-6/8K-G06P3-EU-BM2-LV-P1
  • SUN-6/8K-G06P3-EU-BM2-LV-P1
  • 127V/220V, 133V/230V and
    50/60Hz, Three phase system
  • 2 MPP trackers, Max. efficiency up to 98.3%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<
>> Download Certificate <<

certificate_en62109-5

certificate_iec62116+iec61727-1
eudeclaration-sun-3-15k-g06p3-eu-am2+sun-6-8k-g06-lv+231014007

Technical Specifications

  • SUN-(6-8)K-G06-EU-BM2-LV-P1
  • Feedback
Model SUN-6K-G06P3-EU-BM2-LV-P1 SUN-8K-G06P3-EU-BM2-LV-P1
PV String Input Date
Max. PV Input Power(kW) 9 12
Max. PV Input Voltage(V) 800
Start-up Voltage(V) 250
MPPT voltage range(V) 200-700
Rated PV Input voltage(V) 500
Max. Operating PV Input Current (A) 20+20 20+26
Max. Input Short Circuit Current (A) 30+30 30+39
No. of MPP Trackers/No. of Strings per MPP Tracker 2/1+1 2/1+2
AC Output Side
Rated AC Output Active Power(kW) 6 8
Max. AC Output Apparent Power(kVA) 6 8
Rated AC output current (A) 15.8/15.1 21/20.1
Max. AC Output Current(A) 15.8/15.1 21/20.1
Rated output voltage/range (V) 127V/220V, 133V/230V 0.85UN-1.1UN
Grid Connection Form 3L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.3%
Euro Efficiency 97.8% 98%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI)
Optional

Anti-islanding Protection

 Yes
Residual Current Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch
 Yes
Interface
Communication Interface RS485/RS232 /WiFi/LAN
LCD/LED Display
 LCD1602
General Data
Operating Temperature Range (°C) -25 to -60℃
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤45
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 283×463×178 (Excluding Connectors and Brackets)
Weight [kg] 11.5
Warranty [year] 5 years
Type Of Cooling Natural Cooling
Grid Regulation NBR 16149, NBR 16150, EN 50549, RD 140
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
