SUN-33/35/40/45/50K-G04P3-EU-AM4-LV

Three Phase| 33-50kW | 4 MPPT | Low Voltage | 127/220Vac

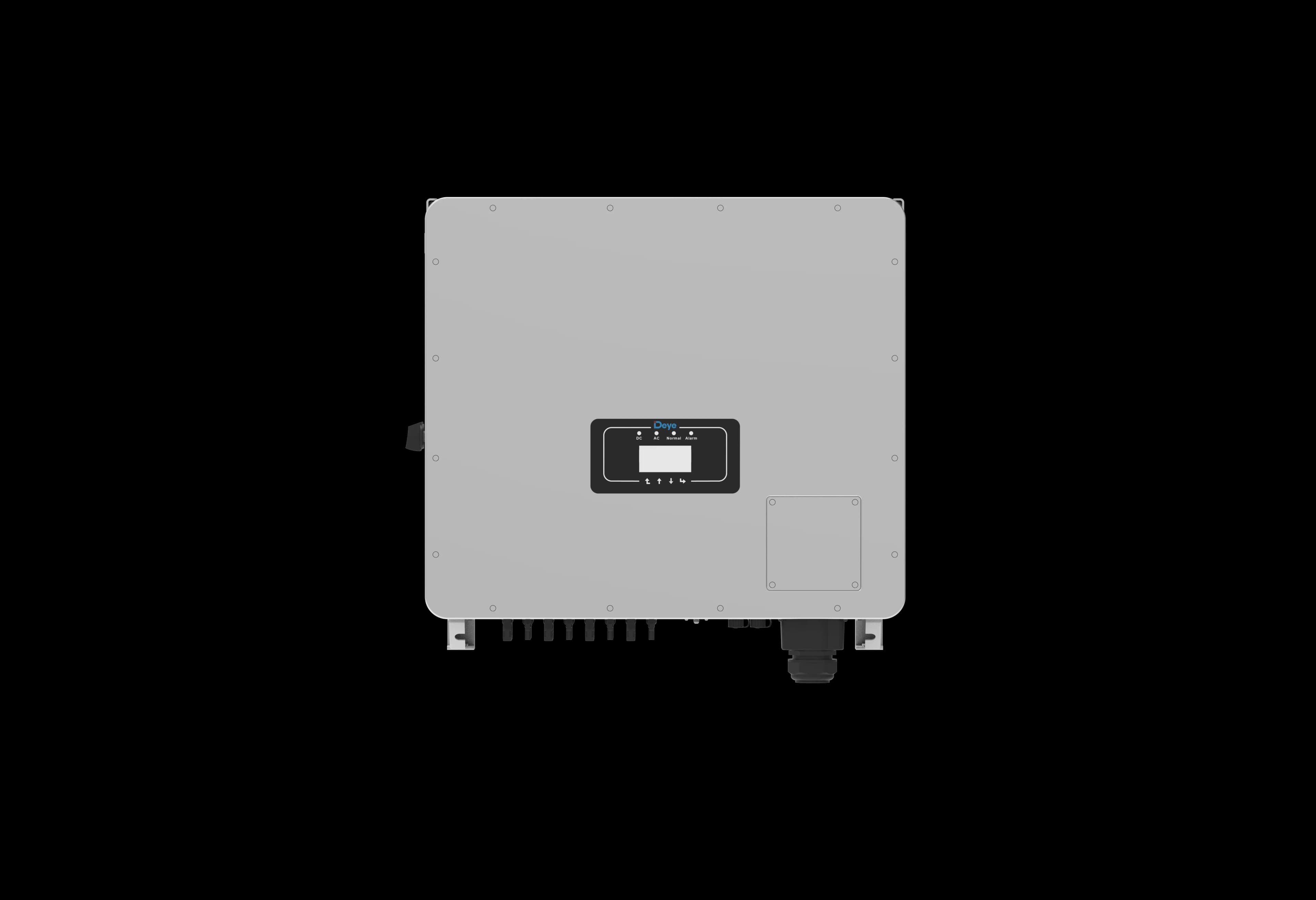

SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
  • 127V/220V, 133V/230V and
    50/60Hz, Three phase system
  • 4 MPP tracker, Max. efficiency up to 98.7%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<
>> Download Certificate <<

certificate_norway+nek-en50549-1-1

sun-60-80k-gsun-33-50k-g-lv

Technical Specifications

  • SUN-(33-50)K-G04P3-EU-AM4-LV
  • Feedback
Model SUN-33K-G04P3-EU-AM4-LV SUN-35K-G04P3-EU-AM4-LV SUN-40K-G04P3-EU-AM4-LV SUN-45K-G04P3-EU-AM4-LV SUN-50K-G04P3-EU-AM4-LV
PV String Input Date
Max. PV Input Power(kW) 49.5 52.5 60 67.5 75
Max. PV Input Voltage(V) 800
Start-up Voltage(V) 250
MPPT voltage range(V) 200-700
Rated PV Input voltage(V) 500
Max. Operating PV Input Current (A) 40+40+40+40
Max. Input Short Circuit Current (A) 60+60+60+60
No. of MPP Trackers/No. of Strings per MPP Tracker 4/3+3+3+3 4/4+4+4+4
AC Input/Output Side
Rated AC Output Active Power(kW) 33 35 40 45 50
Max. AC Output Apparent Power(kVA) 33 35 40 45 50
Rated AC output current (A) 86.7/82.8 91.9/87.8 105/100.3 118.2/112.8 131.3/125.4
Max. AC Output Current(A) 86.7/82.8 91.9/87.8 105/100.3 118.2/112.8 131.3/125.4
Rated output voltage/range (V) 127V/220V, 133V/230V 0.85UN-1.1UN
Grid Connection Form 3L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.6%  98.70%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection Yes
Residual Current Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch Yes
Interface
Communication Interface RS485/RS232
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C) -25 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤55 dB(A)
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 698×5613×236.5 (Excluding Connectors and Brackets)
Weight [kg] 53.7
Warranty [year] 5 years
Type Of Cooling Intelligent Air Cooling
Grid Regulation NBR 16149, NBR 16150, EN 50549, RD 140
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
 Seguridad EMC/Estándar   IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
