SUN-5/6/8/10/12K-SG01HP3-EU-DM2

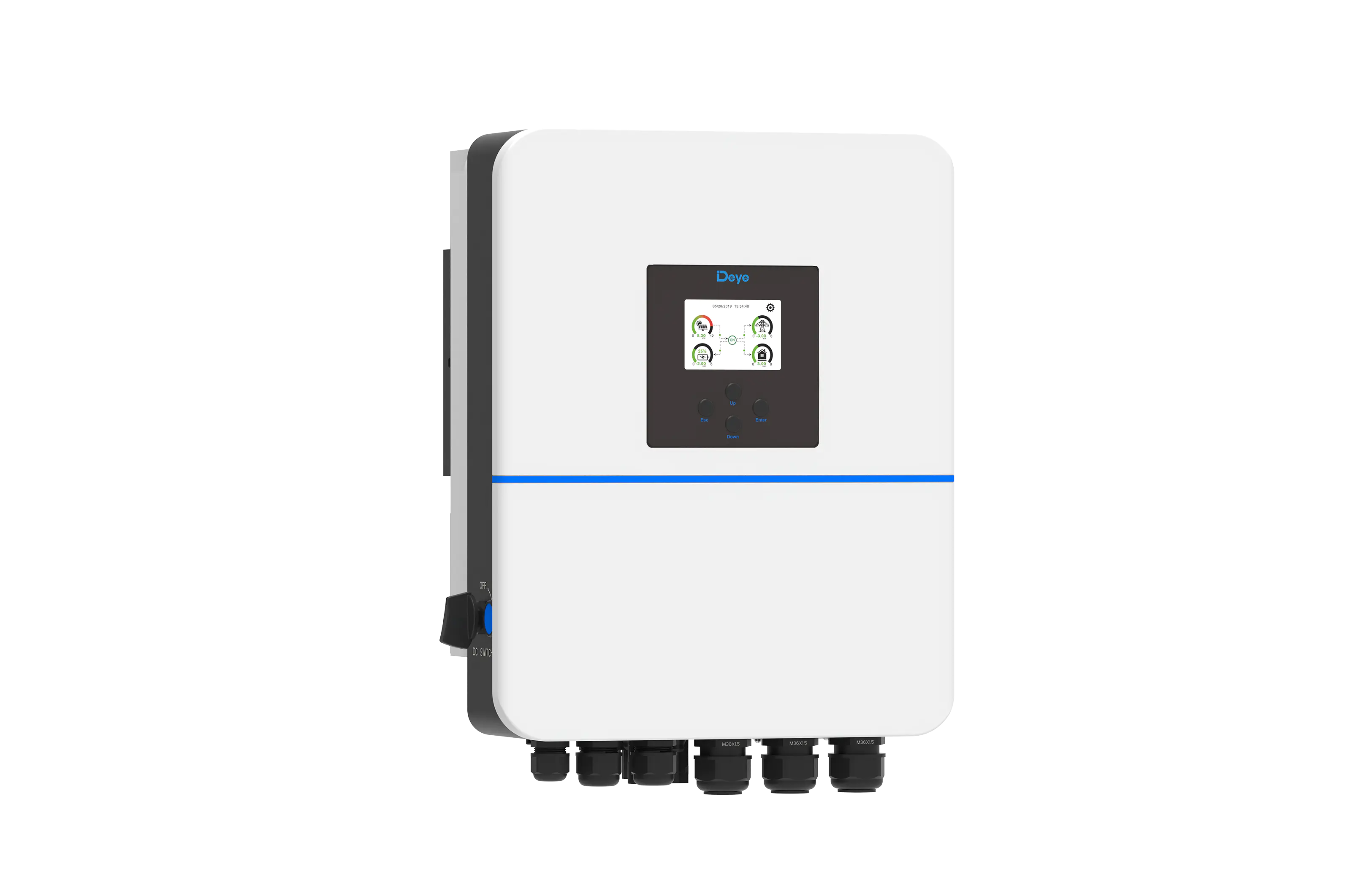

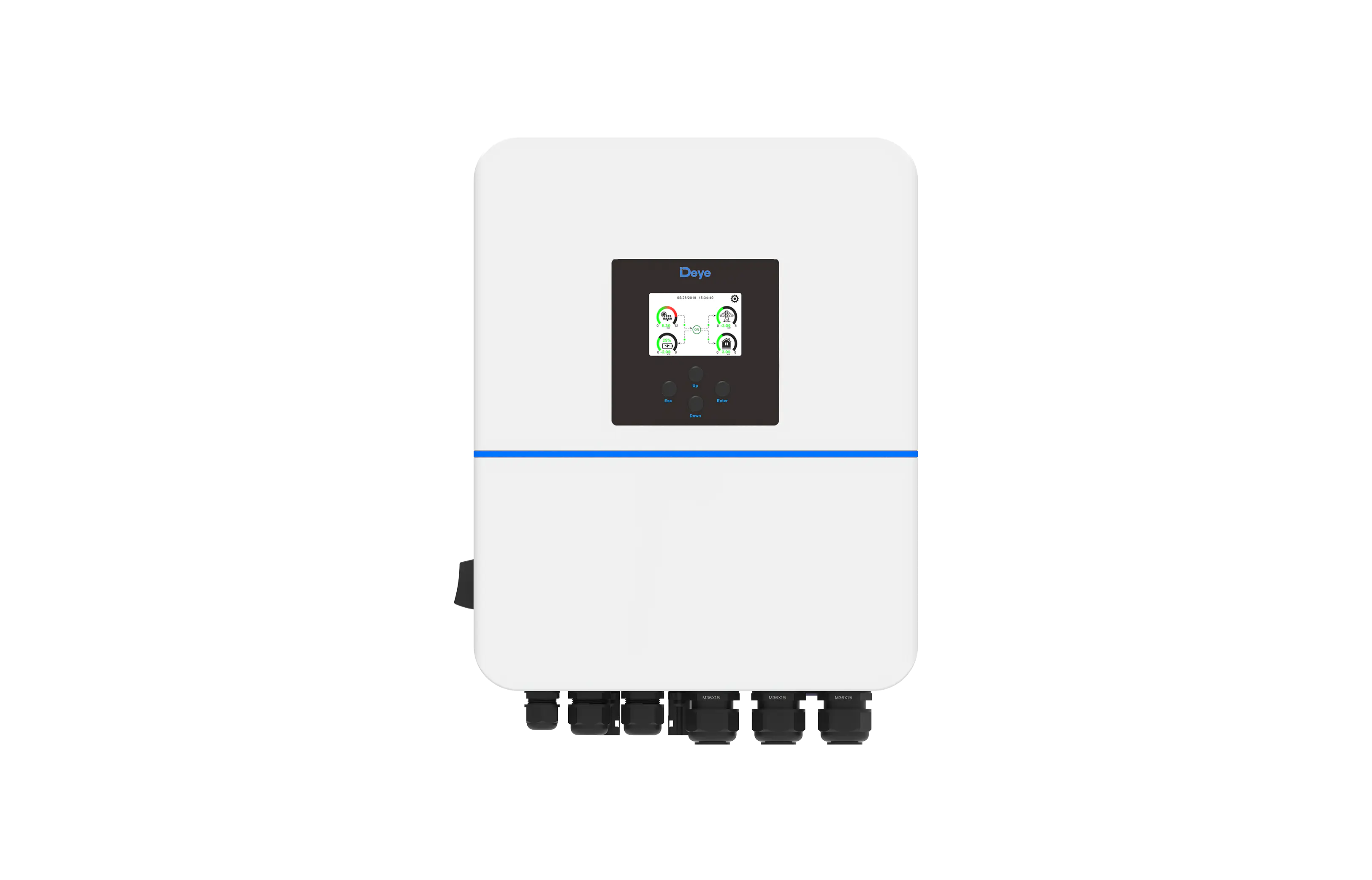

Three Phase Hybrid Inverter | 5-12kW | 2 MPPT | HV Battery Supported

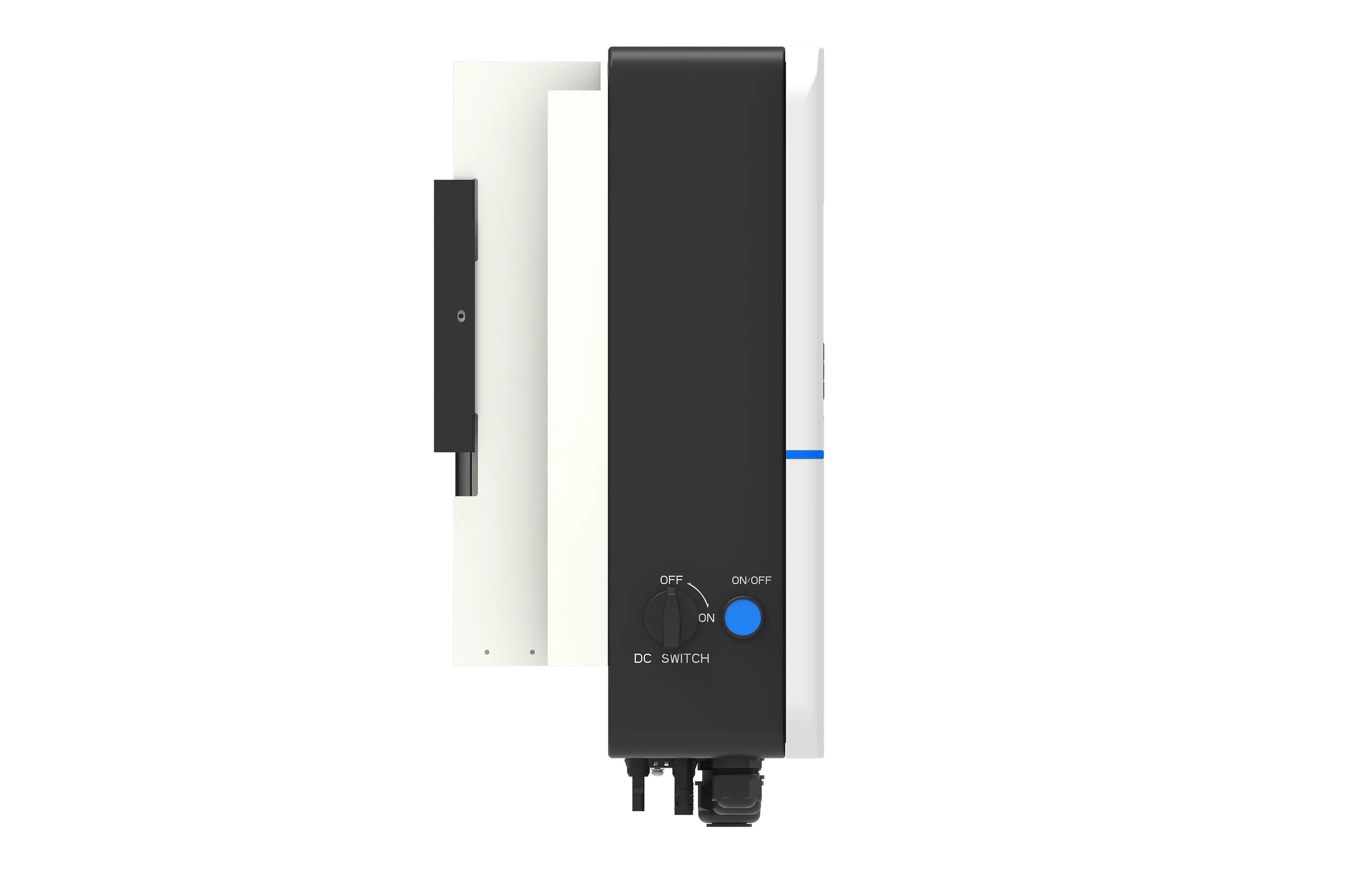

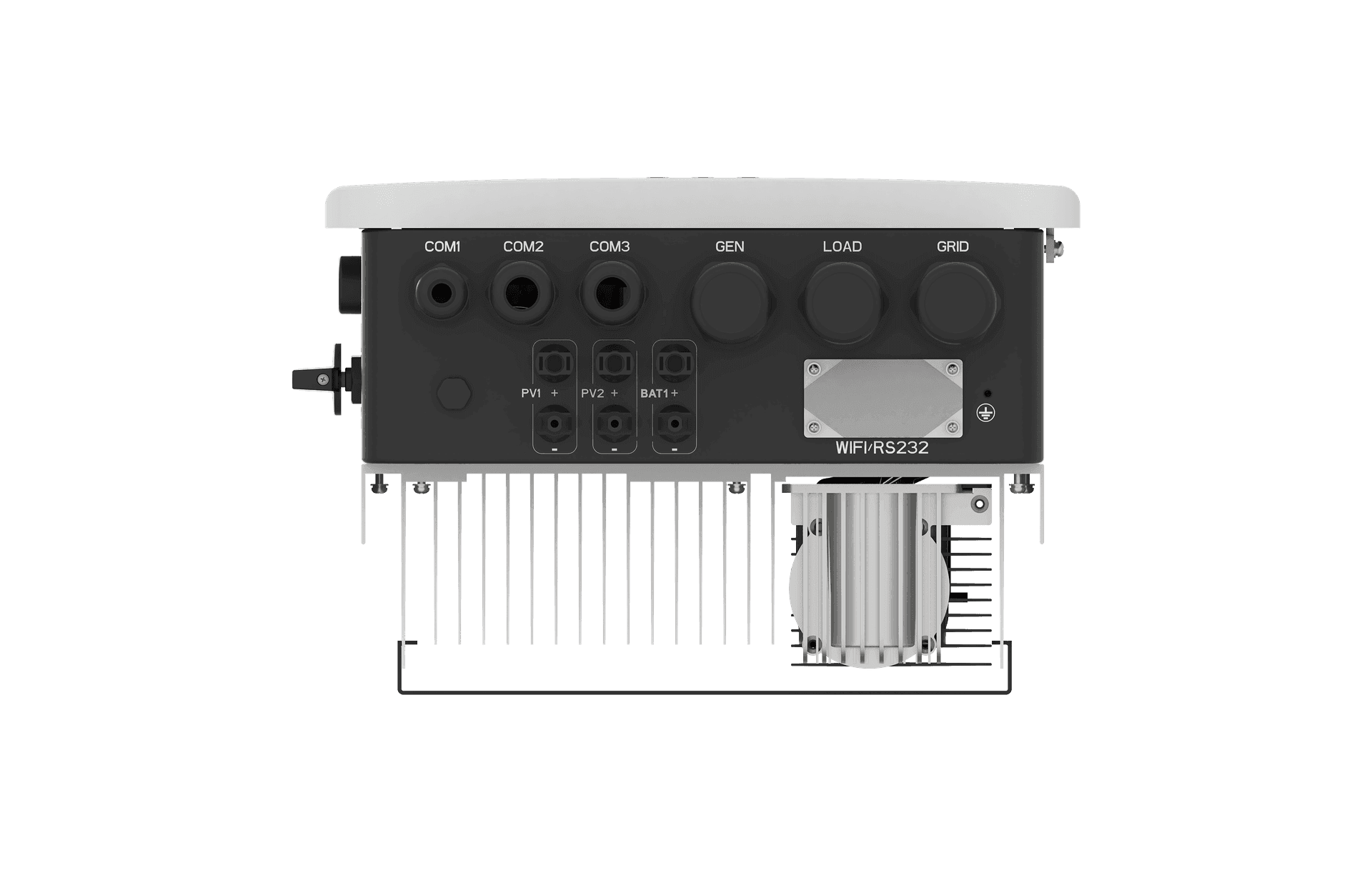

SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • SUN-5/6/8/10/12K-SG01HP3-EU-DM2
  • 100% unbalanced output
  • AC couple to retrofifit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
  • Max. charging/discharging current of 37A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(5-12)K-SG01HP3-EU-DM2

  • Feedback
Model SUN-5K-SG01HP3-EU-DM2 SUN-6K-SG01HP3
-EU-DM2		 SUN-8K-SG01HP3
-EU-DM2		 SUN-10K-SG01HP3
-EU-DM2		 SUN-12K-SG01HP3
-EU-DM2
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range(V) 160-700
Max.Charging Current(A) 37
Max.Discharging Current(A) 37
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W)
 10000 12000 16000 20000 24000
Max DC Input Power（W） 8000 9600 12800 16000 19200
Max DC Input Voltage（V） 1000
Start-up Voltage（V） 180
MPPT Voltage Range（V） 150-850
Rated DC Input Voltage(V) 600
Max Input Short-Circuit Current（A） 18+18
Max Operating PV Input Current（A） 27+27
No.of MPP Trackers/No.of String Per MPP Tracker 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power（W） 50000 6000 8000 10000 12000
Max AC Input/Output Apparent Power （VA） 5500 6600 8800 11000 13200
Peak Power (off-grid)（W） 1.5 times of rated power,10s
Rated AC Input/Output Current（A） 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4
Max AC Input/Output Current（A） 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2
Max Continuous AC Passthrough (grid to load)（A） 35
Rated Input/Output Voltage/Range(V) 220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.60%
Euro Efficiency 97.0%
MPPT Efficiency ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit
Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,
Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
Communication Interface WIFI, RS485, CAN
General Data
Operating Temperature Range -40℃+60℃,＞45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 2000m
Noise ≤ 45
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 376*470*244.5（Excluding connectors and brackets）
Weight[kg] 24
 24.5
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Natural Cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
