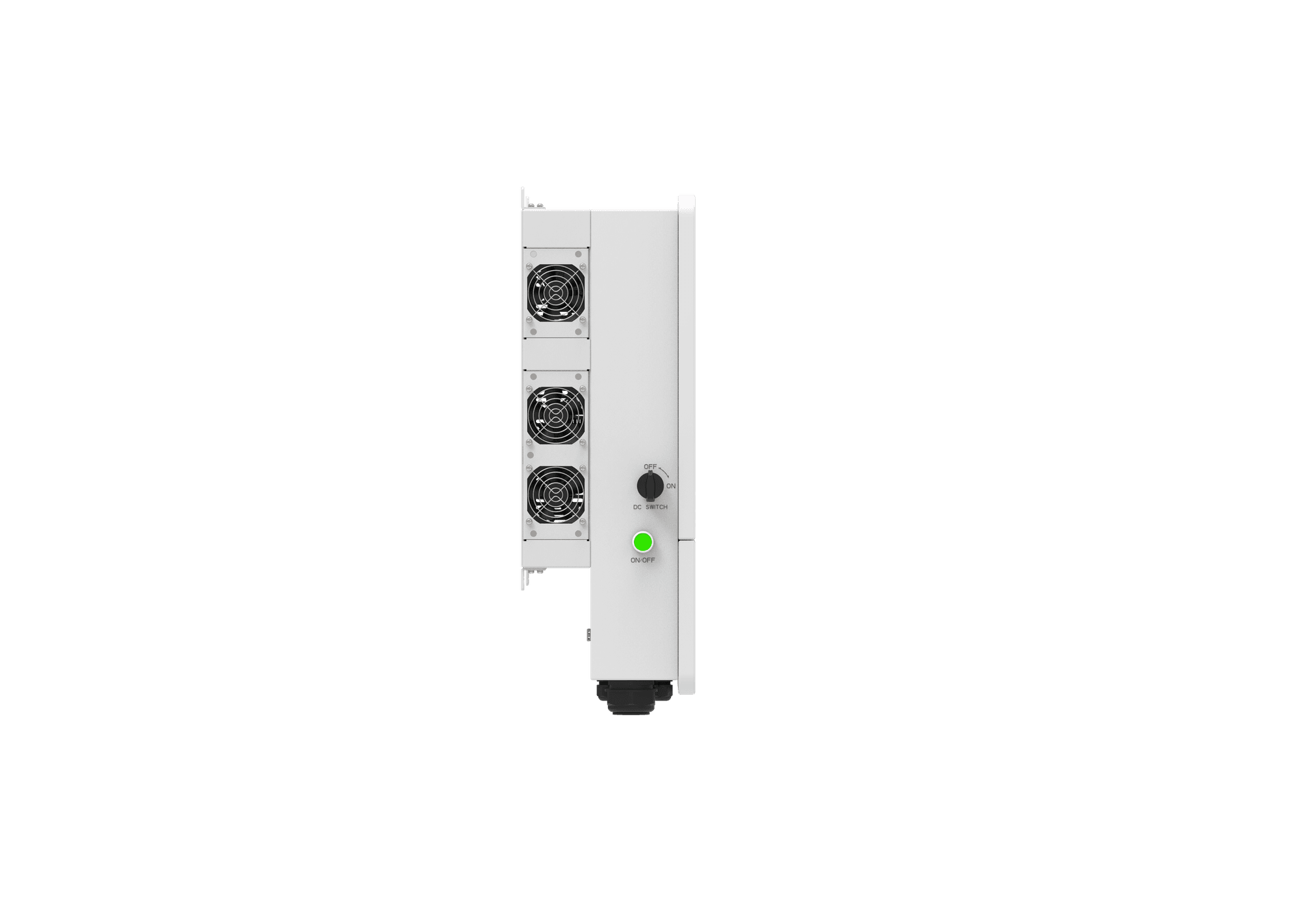

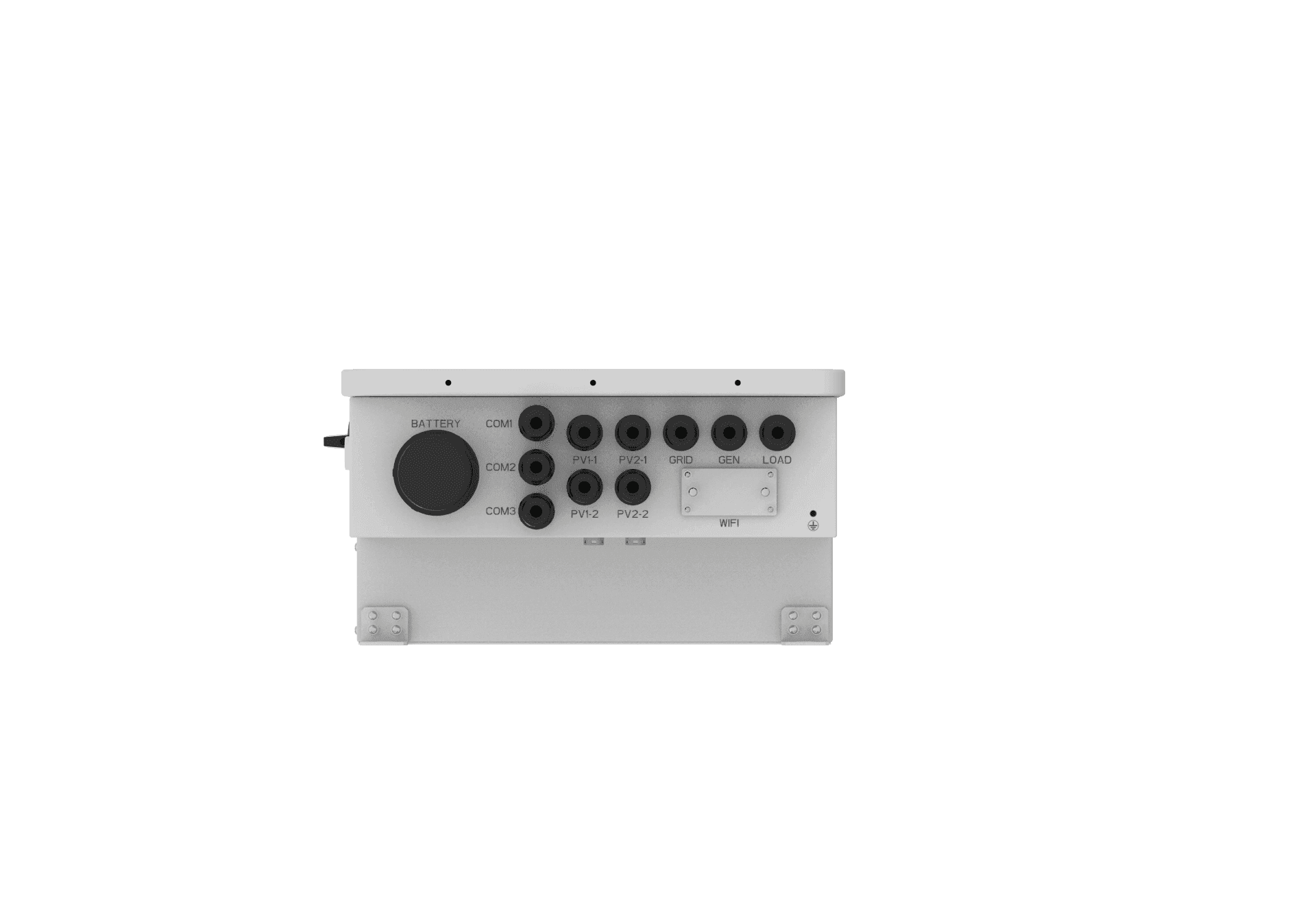

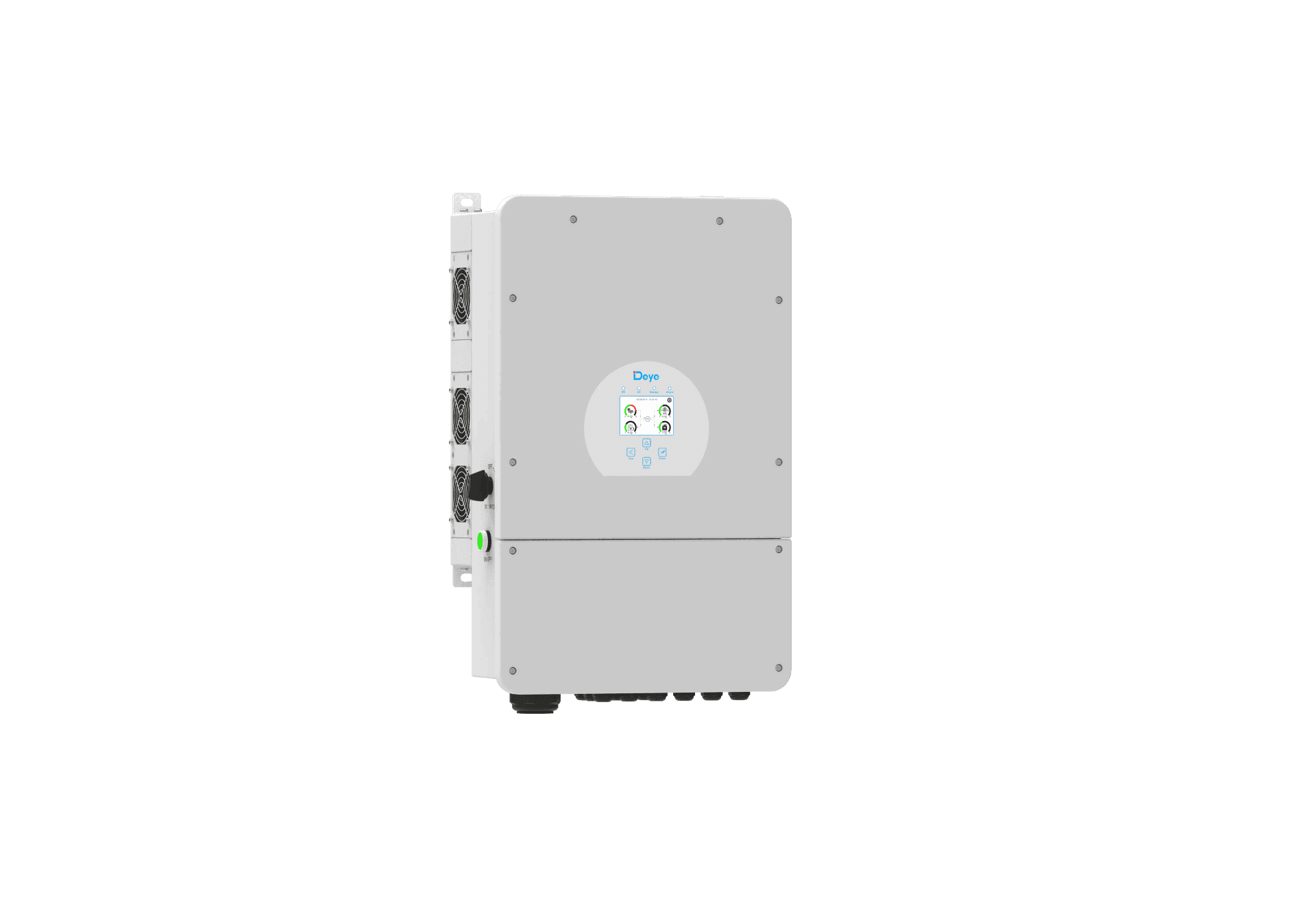

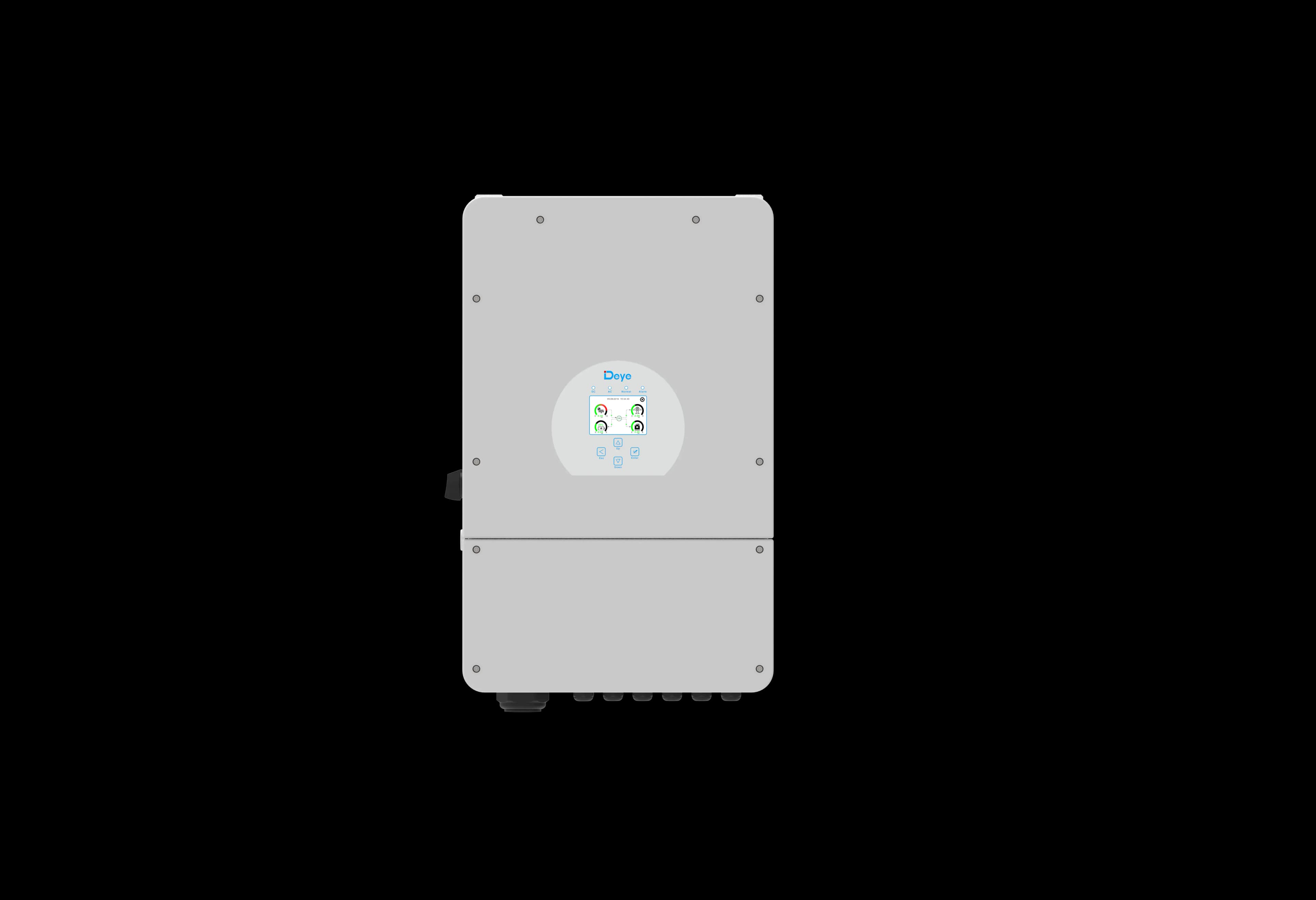

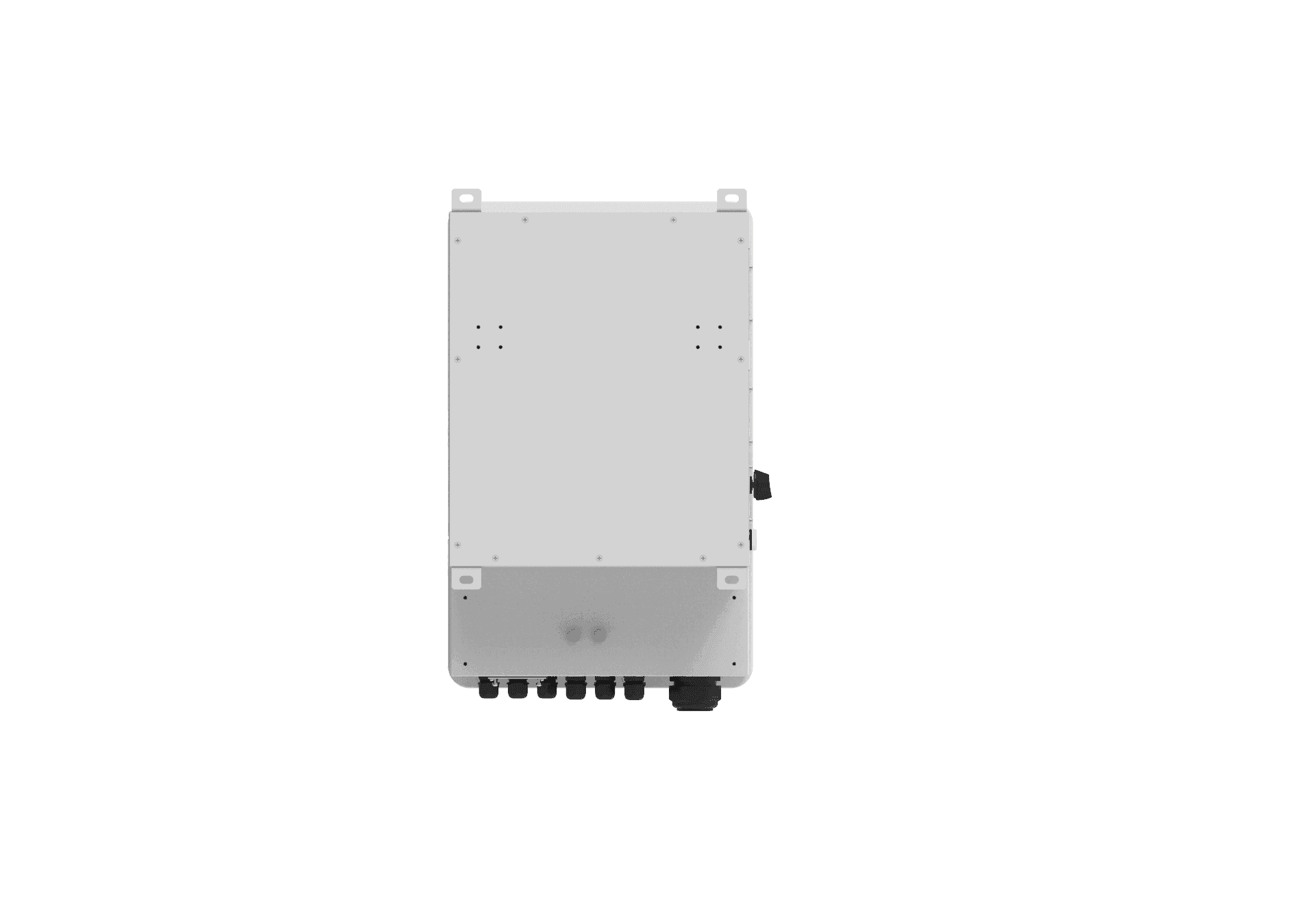

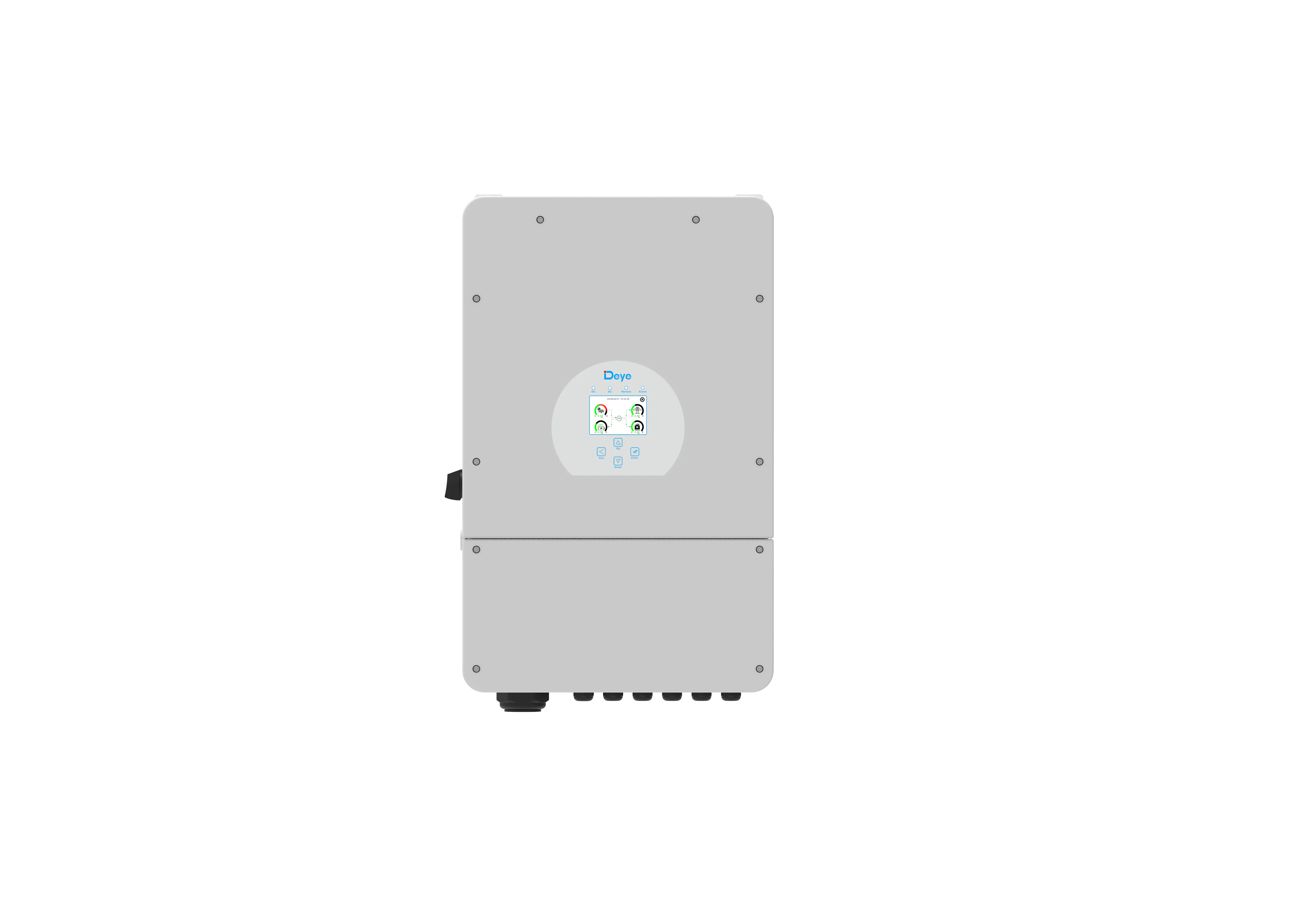

SUN-5/6/7.6/8K-SG01LP1-US

Split Phase Hybrid Inverter | 5-8kW | 2 MPPT | LV Battery Supported

SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • SUN-5/6/7.6/8K-SG01LP1-US
  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Max. 16 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(5-8)K-SG01LP1-US
  • Feedback
Model SUN-5K-SG01LP1-US SUN-6K-SG01LP1-US SUN-7.6K-SG01LP1-US SUN-8K-SG01LP1-US
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging/Discharging Current(A) 120 135 190 190
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Input Power（W） 6500 7800 9880 10400
Max. PV Input Voltage（V） 500
Start-up Voltage（V） 125
MPPT Voltage Range（V） 150-425
Rated PV Input Voltage(V) 370
Max. Operating PV Input Current（A） 13+13 26+13 26+26
Max. Input Short-Circuit Current（A） 22+22 44+22 44+44
No.of MPP Trackers/No.of Strings MPP Tracker 2/1+1 2/2+1 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W） 5000 6000 7600 8000
Max. AC Input/Output Apparent Power （VA） 5500 6600 8360 8800
Rated AC Input/Output Current（A） 20.8 25 31.7 33.3
Max. AC Input/Output Current（A） 22.9 27.5 34.8 36.7
Max Continuous AC Passthrough (grid to load)（A） 40 50
Peak Power (off-grid)（W） 2 times of rated power,10s
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Rated Input/Output Voltage 120/240; 208 0.88Un＜ U＜ 1.1Un 2L+N+PE
Rated Input/Output Grid Frequency/Range 60Hz/55Hz-65Hz
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display LCD
Communication Interface
 WIFI,RS485
General Data
Operating Temperature Range(℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 2000m
Noise(dB) ＜30
Ingress Protection(IP) Rating TYPE3R
Inverter Topology Non-Isolated (solar), Isolated (battery)
Over Voltage Category OVC II(DC),OVC IV(AC)
Cabinet size（W*H*D）[mm] 420×670×233（Excluding connectors and brackets）
Weight[kg] 30
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation EN 50549,UNE 217002,NRS 097,IEEE 1547.1,SRD V2.0
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
