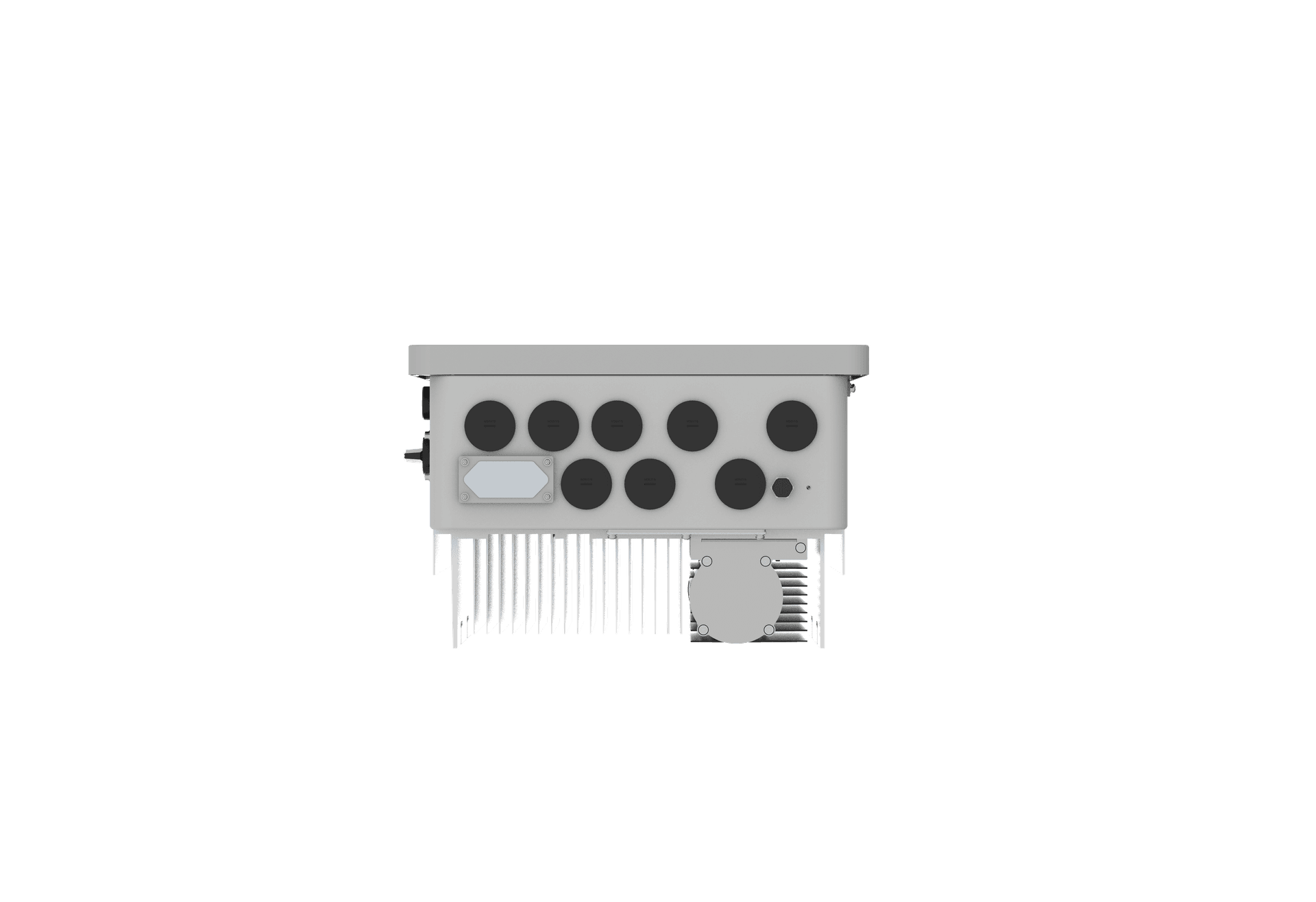

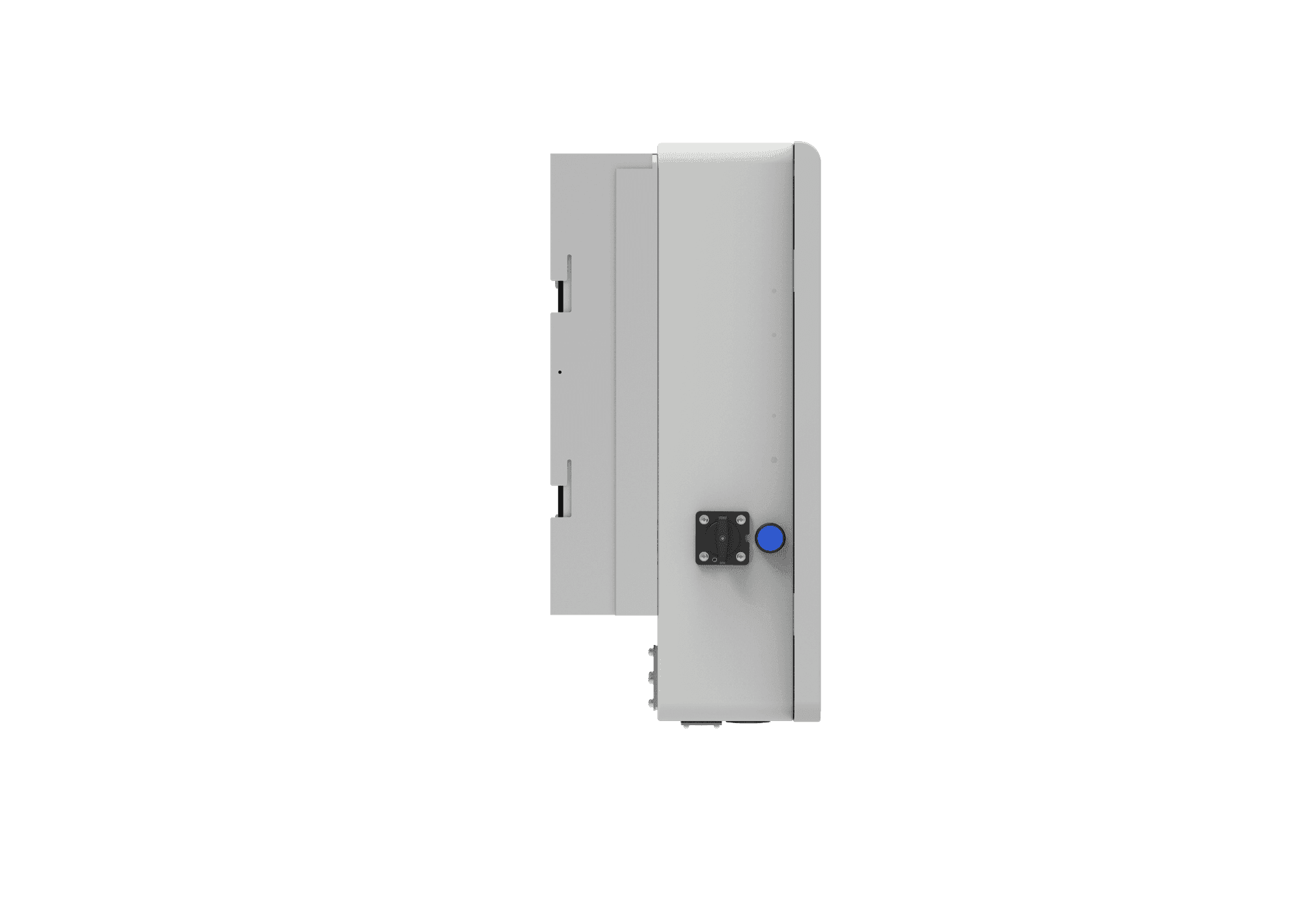

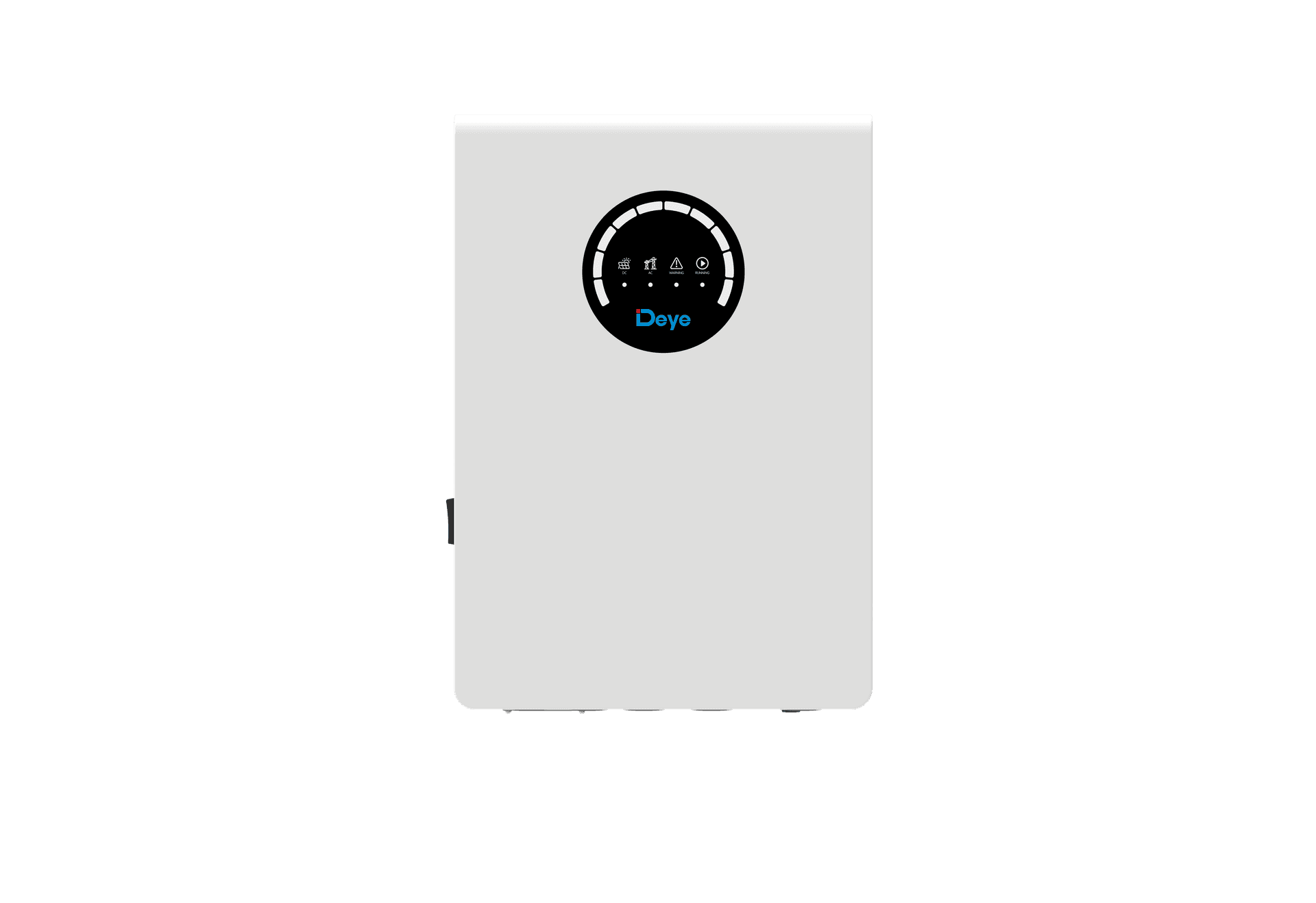

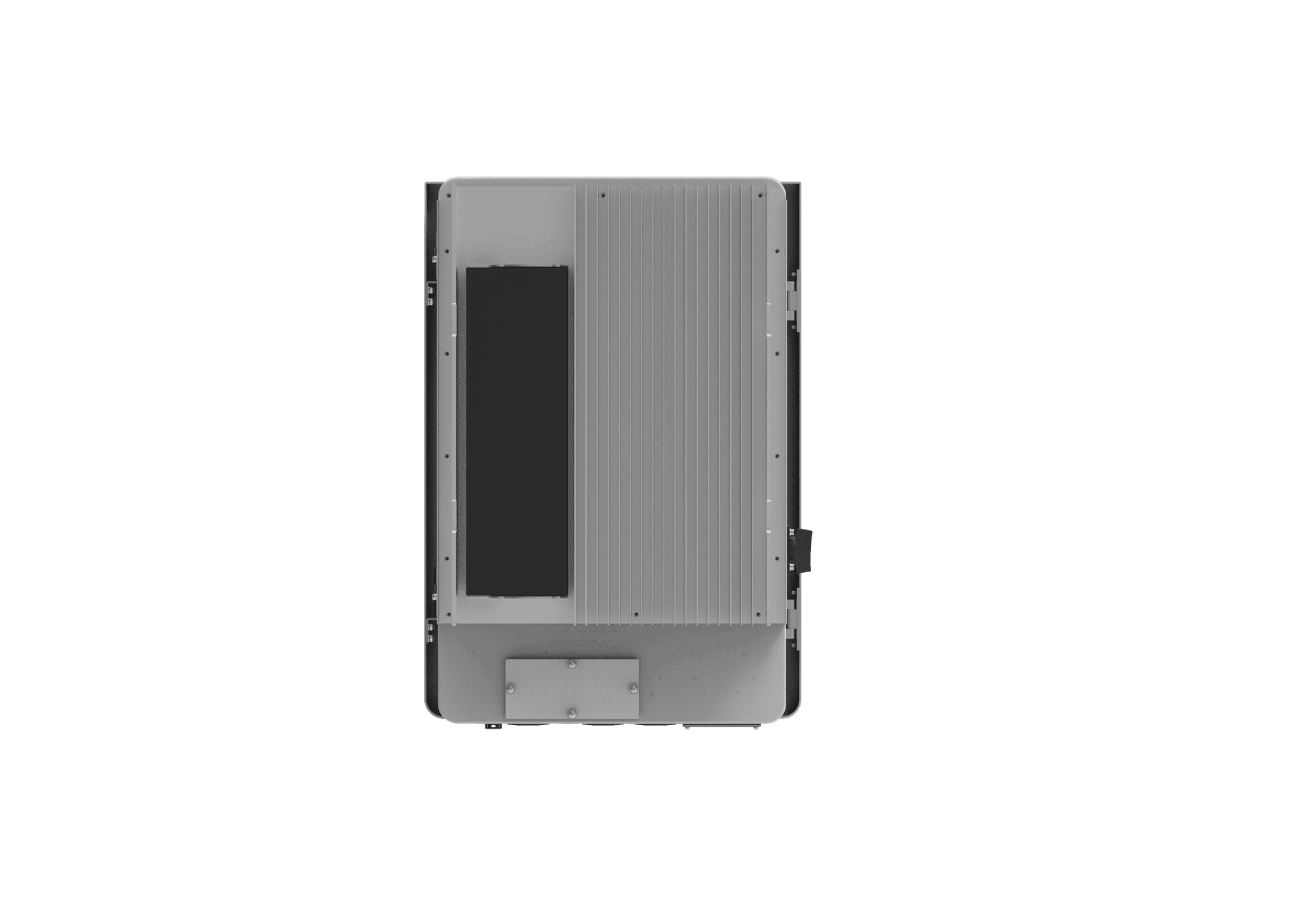

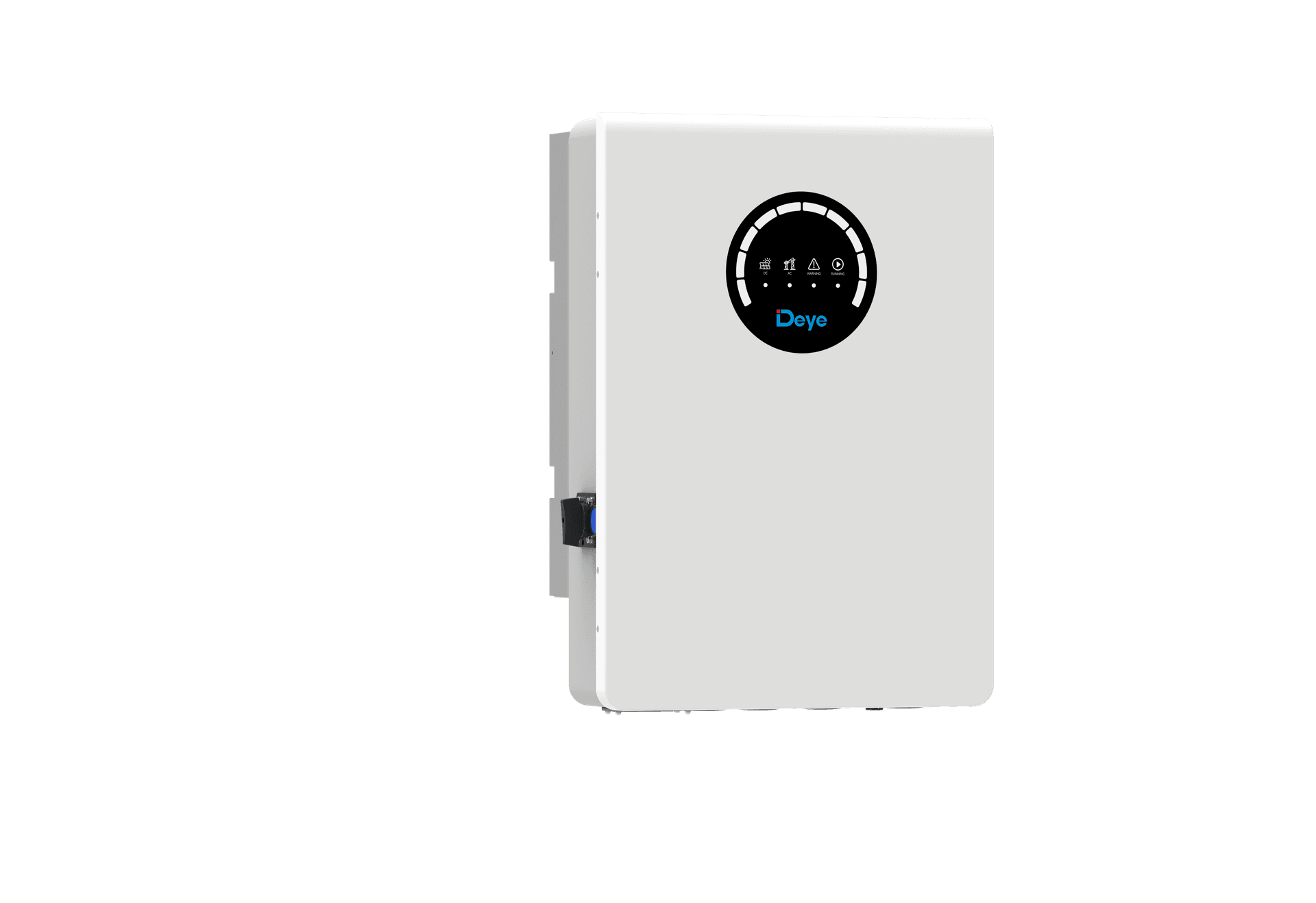

SUN-4.95/5.5/8K-SG02HP2-JP-FM4

Single Phase Hybrid Inverter | 4.95-8kW  | 4 MPPT | HV Battery Supported

SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4
  • SUN-4.95/5.5/8K-SG02HP2-JP-FM4

  • Equipped with stand-alone operation and grid-connected operation functions

  • Anti-reverse power flow function measures

  • Supports 101V/202V loads

  • Supports single-function and full-load operation

DOWNLOAD AREA
>> Download Datasheet <<

Technical Specifications

  • SUN-(4.95-8)K-SG02HP2-JP-FM4

  • Feedback
Model SUN-4.95K-SG02HP2-JP-FM4 SUN-5.5K-SG02HP2-JP-FM4 SUN-8K-SG02HP2-JP-FM4
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 80-500
Max. Charging Current (A) 50
Max. Discharging Current (A) 50
Battery Charging Method Self-adaptation to BMS
Number of Battery Inputs 1
PV Input Data
Max. DC Allowable Connected Power (W) 10000 11000 16000
Max. DC Input Power (W) 8000 8800 12600
Max. DC Input Voltage (V) 500
Start-up Voltage (V) 70
MPPT Voltage Range (V) 50-450
Rated DC Input Voltage (V) 350
Full Load MPPT Voltage Range (V) 250-450
Max. Input Short Circuit Current (A) 30+30+30+30
PV Input Current (A) 20+20+20+20
Number of MPPT Circuits
Number of Strings per MPPT		 4/1+1+1+1
AC Output Data
Rated AC Output Active Power (W) 4950 5500 8000
Max. AC Output Apparent Power (VA) 5440 6050 8800
Rated AC Output Current (A) 24.6 27.3 39.7
Max. AC Output Current (A) 27 30 43.6
Max. Continuous AC Bus Pass-Through Current (Grid to Load) (A) 80
Peak Power (Off-Grid) (W) 1.5times of rated power,10s
Power Factor Adjustment Range 0.8 leading – 0.8 lagging
Rated Output Voltage / Range (V) 101/202V, 0.85Un - 1.1Un
Rated Frequency / Range 50Hz / 45Hz-55Hz, 60Hz / 55Hz-65Hz
Electrical System Split Phase three-wire (supports 101V and 202V)
Current Harmonic Distortion (THDi) <3%
Grid DC Component <0.5% In
Protection Functions
Integrated Integrated DC reverse polarity protection, AC output overcurrent protection, overheat protection, AC output overvoltage protection, AC output short circuit protection, DC component detection, overvoltage load reduction protection, ground fault current detection, arc fault circuit interrupter (optional), power system monitoring and control, islanding detection, ground fault detection, DC input switch, DC terminal insulation resistance detection, residual current (RCD) detection, surge protection
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating
Allowable Humidity 0~100% (no condensation, no icing)
Altitude 3000m
Noise (dB) ≤50
Dust and Water Protection Rating IP 65
Inverter Topology Non-isolated
Overvoltage Category OVC II (DC), OVC II (AC)
Surge Protection Level TYPE III
Dimensions (W×H×D) [mm] 423 * 570 * 256.5 (excluding connectors and bracket)
Weight (kg) 32
Warranty Period Standard warranty 10 years, extended warranty available
Cooling Method Natural air cooling
Certification S-JET
