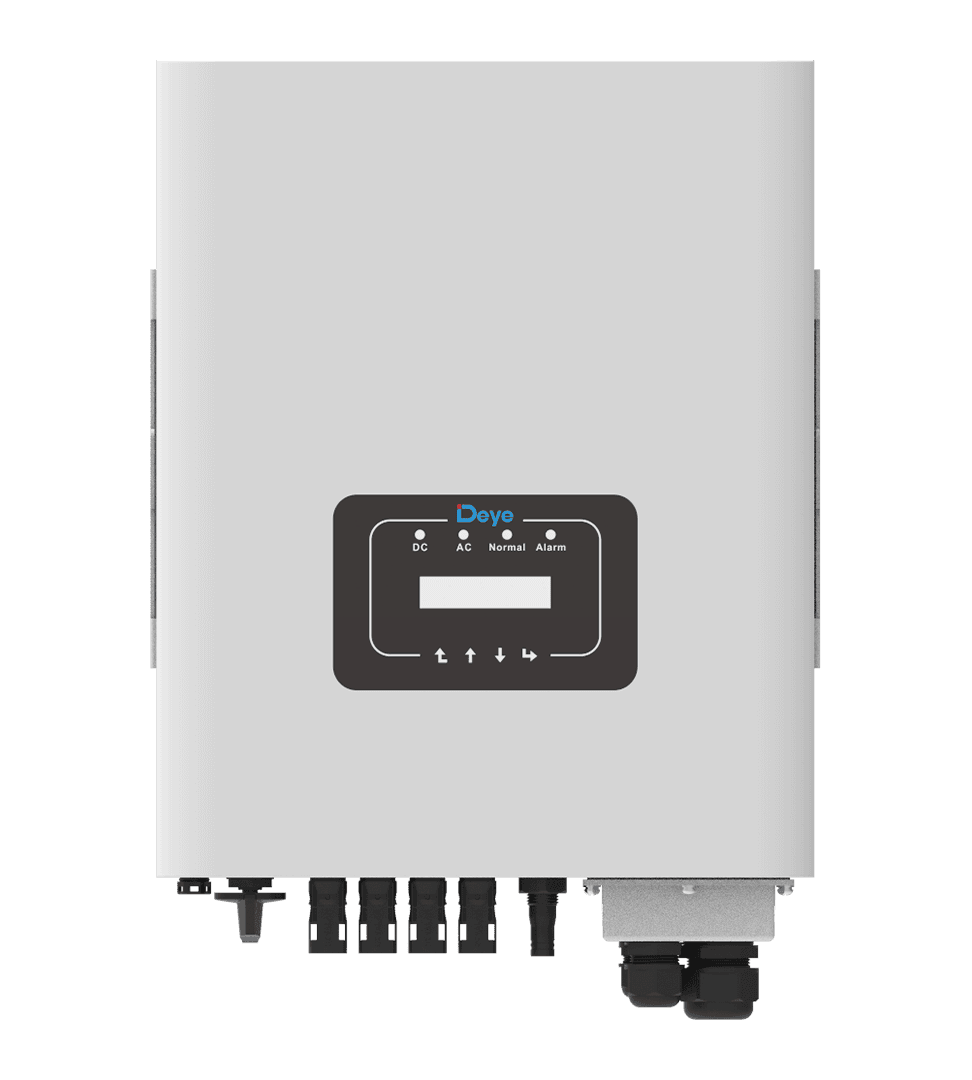

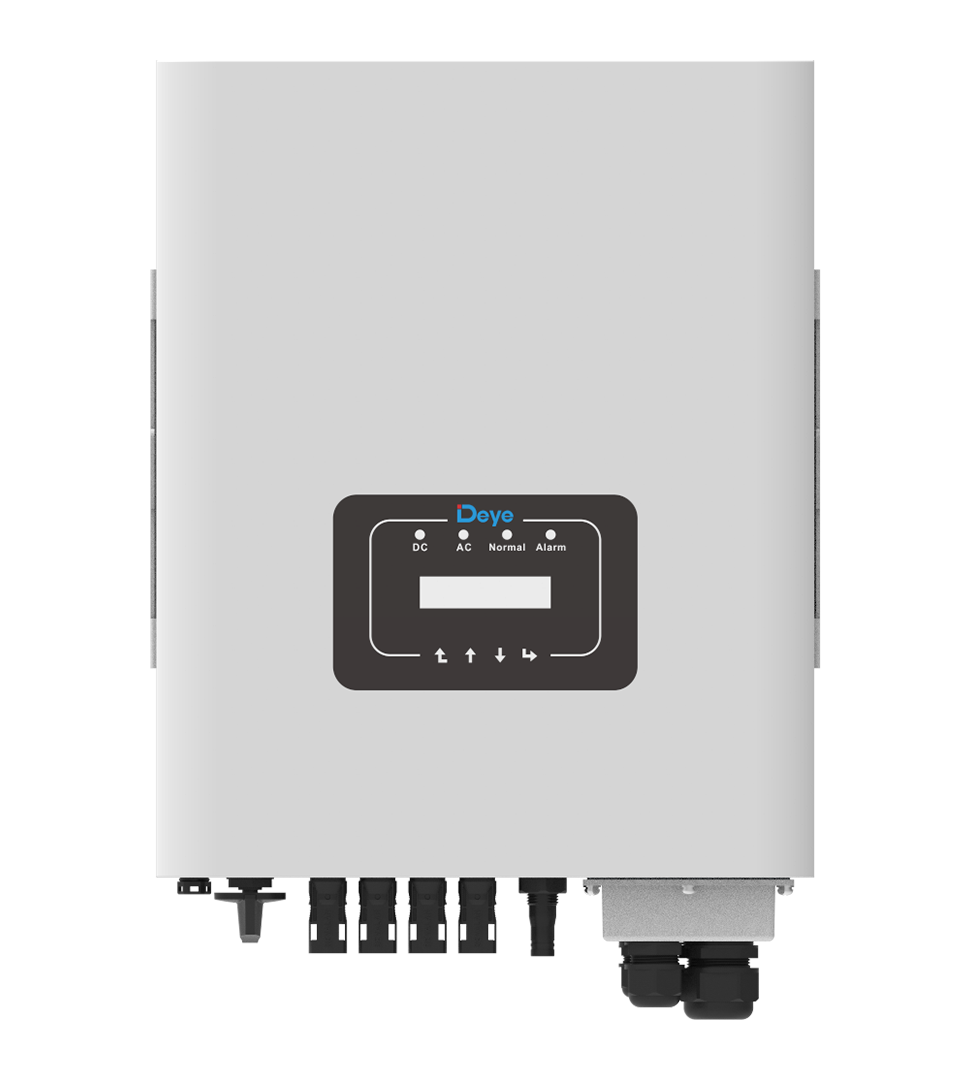

SUN-9/10/10.5K-G02P1-EU-AM2

Single Phase | 9-10.5kW | 2 MPPT
SUN-9/10/10.5K-G02P1-EU-AM2
  • SUN-9/10/10.5K-G02P1-EU-AM2
  • SUN-9/10/10.5K-G02P1-EU-AM2
  • SUN-9/10/10.5K-G02P1-EU-AM2
  • SUN-9/10/10.5K-G02P1-EU-AM2
  • SUN-9/10/10.5K-G02P1-EU-AM2
  • 2 MPP trackers, Max. efficiency up to 97.7%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)
  • Low start-up voltage of 80V
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<
>> Download Certificate <<

pvinverter_eudeclaration-sun-7-10.5k-g02p1-eu-am2+240315001

Technical Specifications

  • SUN-(9-10.5)K-G02P1-EU-AM2
  • Feedback
Model SUN-9K-G02P1-EU-AM2 SUN-10K-G02P1-EU-AM2 SUN-10.5K-G02P1-EU-AM2
PV String Input Date
Max. PV Input Power(kW) 13.5 15 15.8
Max. PV Input Voltage(V) 550
Start-up Voltage(V) 80
MPPT Voltage Range(V) 70-500
Rated PV Input voltage(V) 360
Max. Operating PV Input Current(A) 26+26
Max. Input Short Circuit Current (A) 39+39
No. of MPP Trackers/No. of Strings MPP Tracker 2/2+2
AC Output Side
Rated AC Output Active Power(kW) 9 10 10.5
Max. AC Output Apparent Power(kVA) 9.9 11 11.55
Rated AC Output Current (A) 41/39.2 45.5/43.5 47.8/45.7
Max. AC Output Current(A) 45/43.1 50/47.9 52.5/50.3
Rated Output Voltage 220/230 0.85Un-1.1Un L/N/PE
Rated Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 97.7%
Euro Efficiency 97.2%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection Yes
Residual Current Detection Yes
DC Switch Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display LCD1602
Communication Interface RS485/RS232 /WiFi/LAN
General Data
Operating Temperature Range (°C) -25 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 3000m
Noise (dB) ≤ 35
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 330*410*213.5（Excluding Connectors and Brackets）
Weight [kg] 14.8
Warranty  5 years
Type Of Cooling Natural Cooling
Grid Regulation IEC 61727,IEC 62116,EN 50549,NRS 097,RD 140,UNE 217002,G99
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
