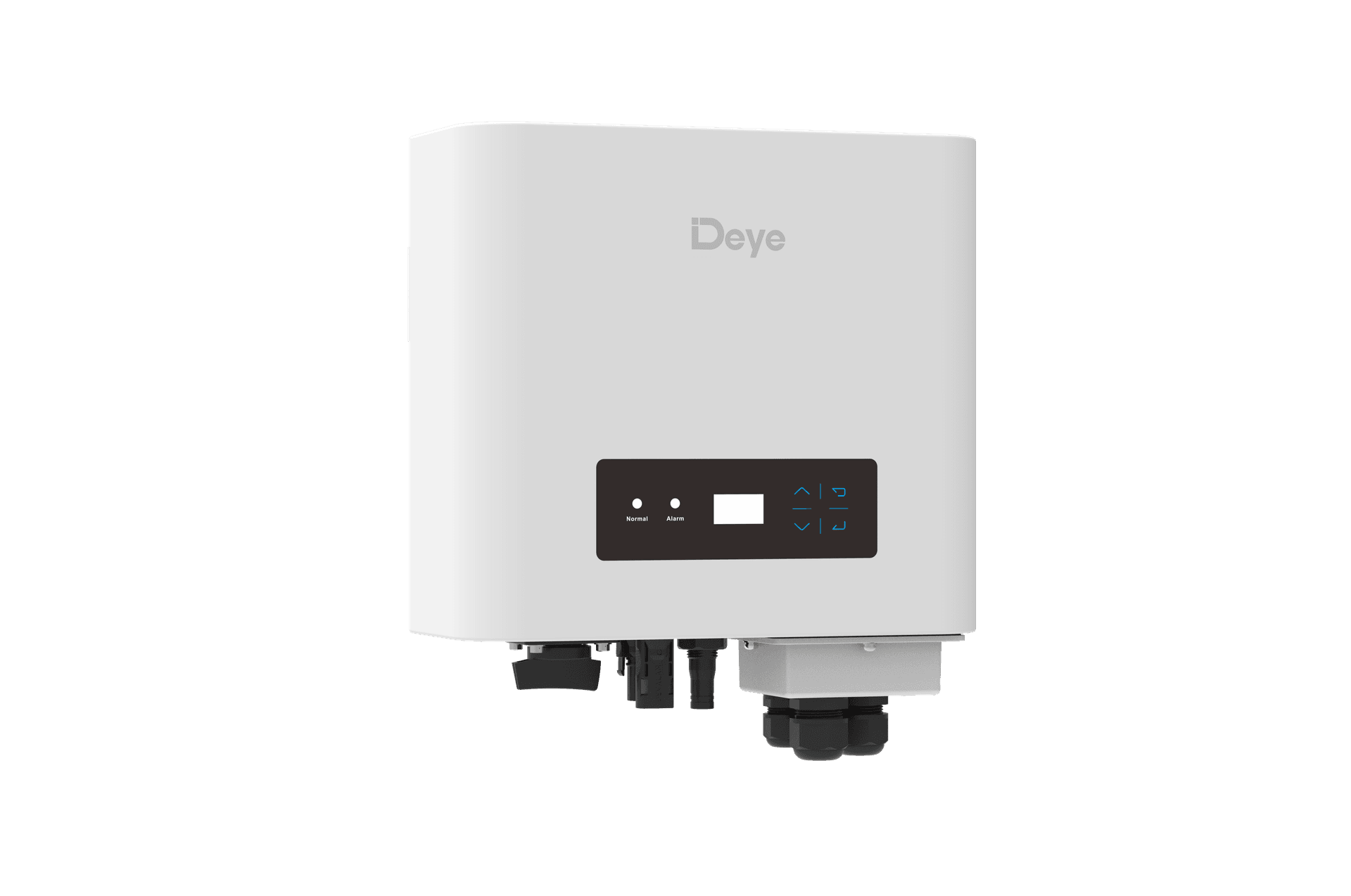

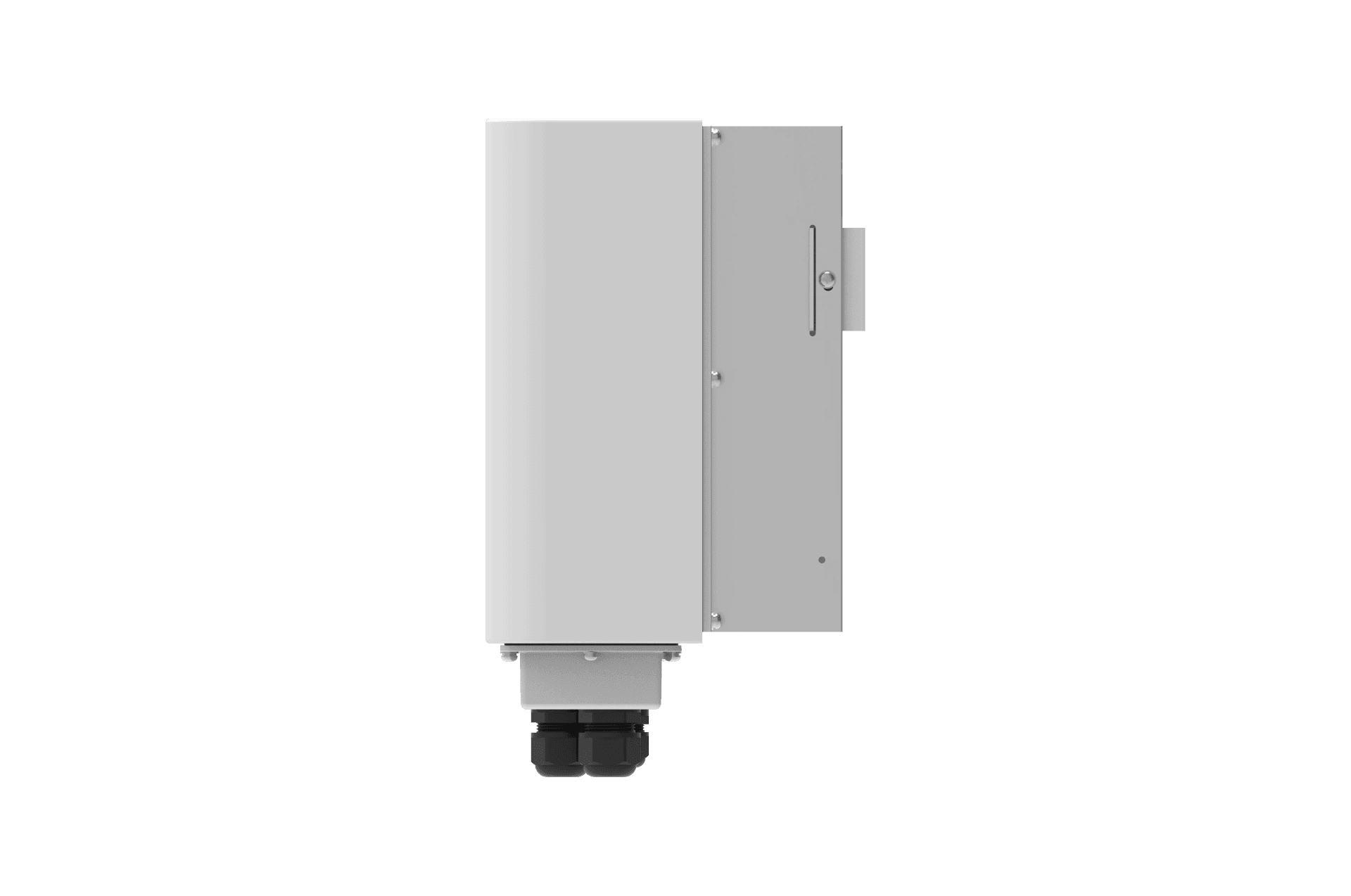

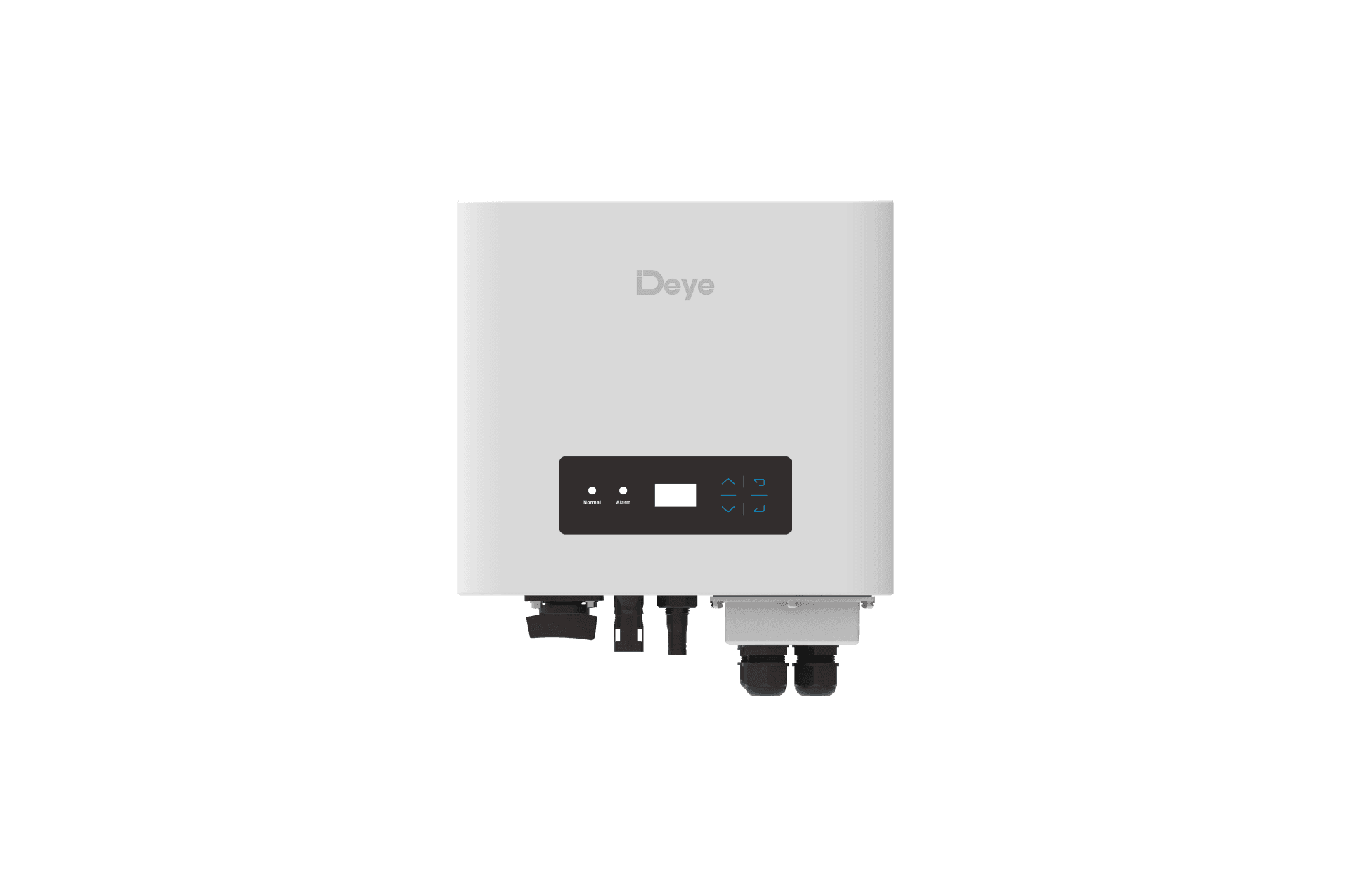

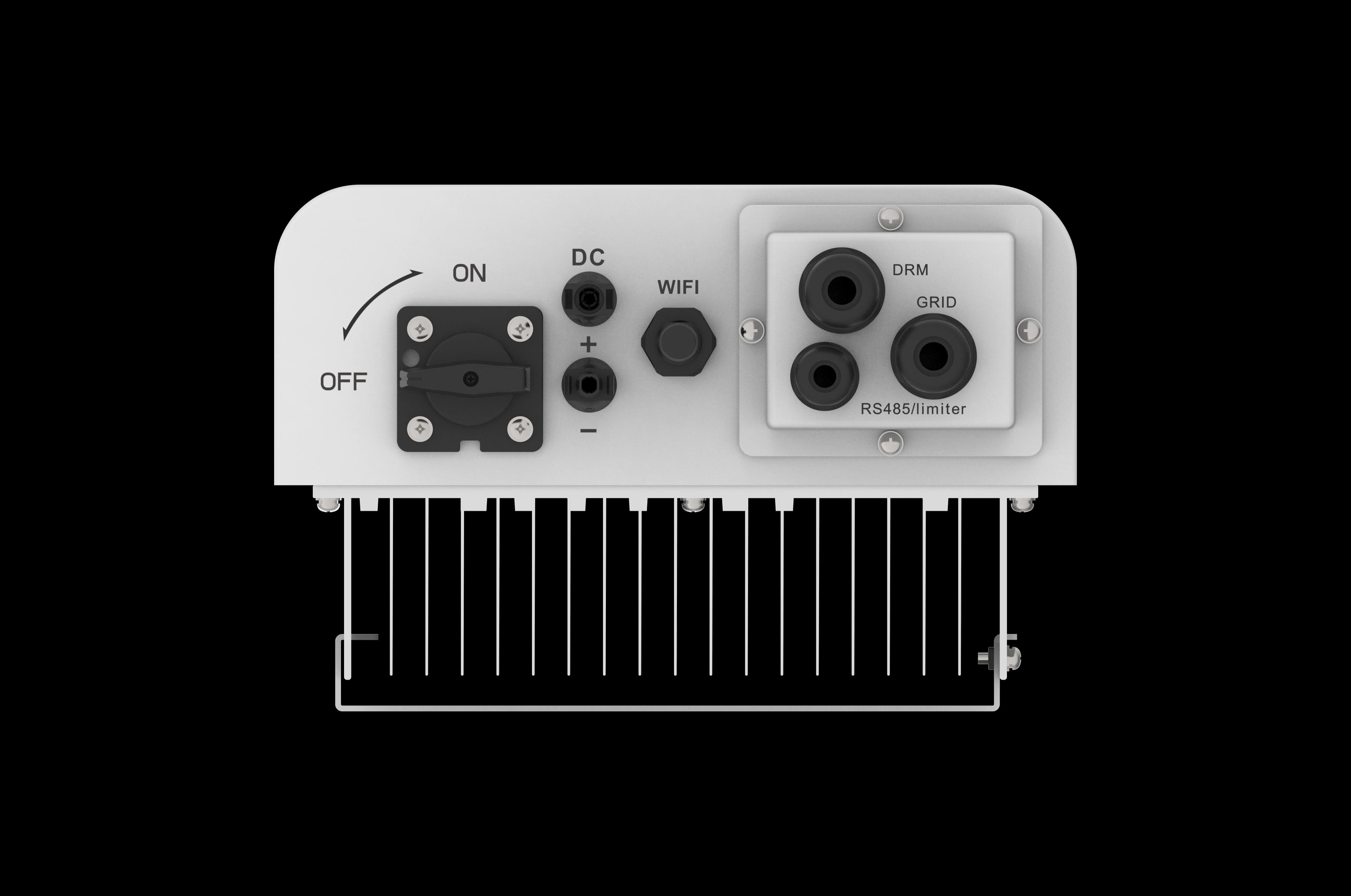

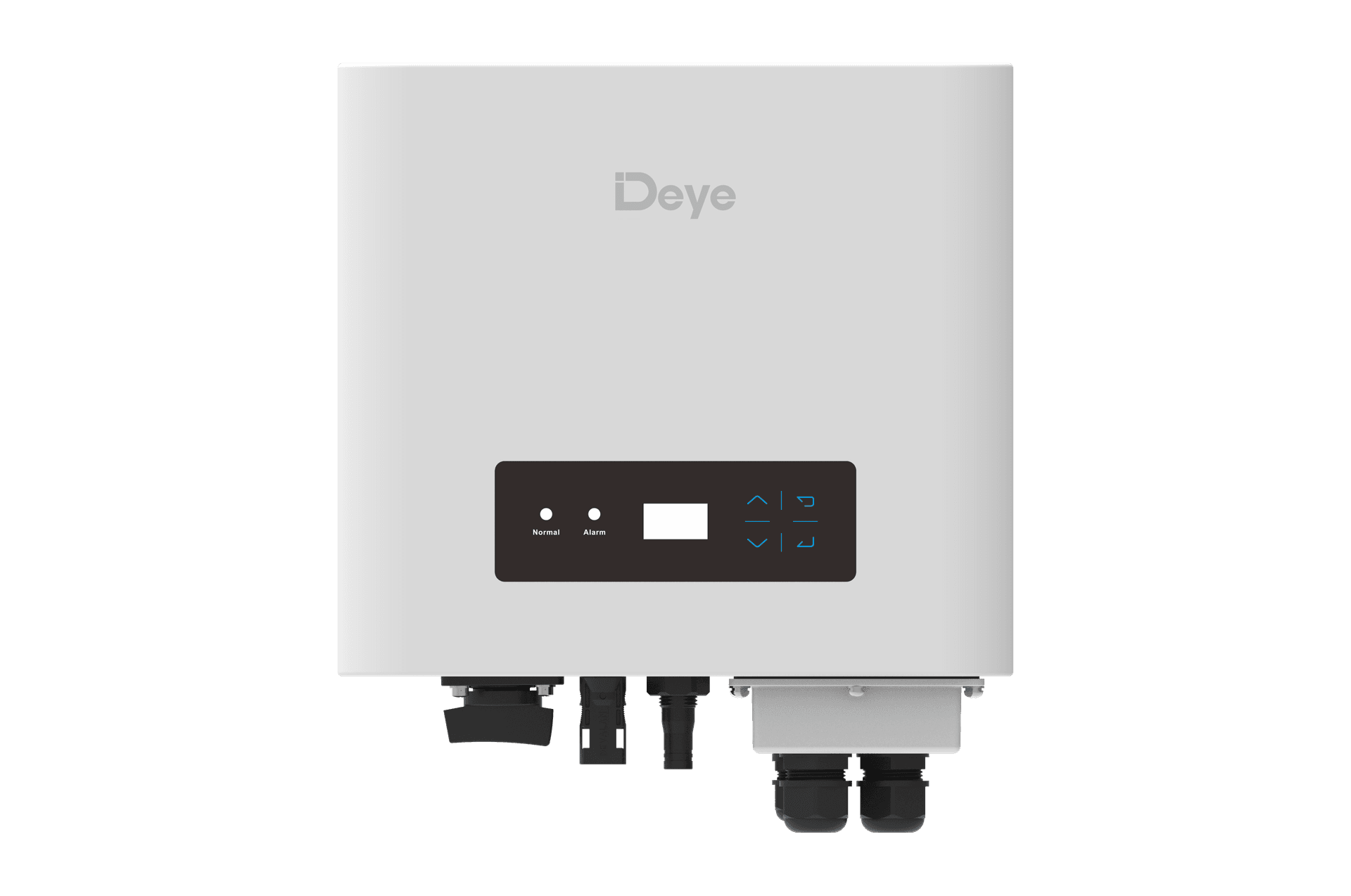

SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1

 Single Phase  | 1-4kW | 1 MPPT
SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G05P1-EU-CM1
  • 1 MPP tracker, Max. efficiency up to 97.5%
  • Zero export application,VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function(Optional)
  • Low start-up voltage of 50V
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(1-4)K-G05P1-EU-CM1

  • Feedback
Model SUN-1K-G05P1-EU-CM1 SUN-1.5K-G05P1-EU-CM1 SUN-2K-G05P1-EU-CM1 SUN-2.2K-G05P1-EU-CM1 SUN-2.5K-G05P1-EU-CM1 SUN-2.7K-G05P1-EU-CM1 SUN-3K-G05P1-EU-CM1 SUN-3.3K-G05P1-EU-CM1 SUN-3.6K-G05P1-EU-CM1 SUN-4K-G05P1-EU-CM1
PV String Input Date
Max. PV Input Power(kW) 1.5 2.3 3 3.3 3.8 4.1 4.5 5 5.4 6
Max. PV Input Voltage(V) 550
Start-up Voltage(V) 50
MPPT voltage range(V) 40-500
Rated PV Input voltage(V) 360 420
Max. Operating PV Input Current (A) 20
Max. Input Short Circuit Current (A) 30
No. of MPP Trackers/No. of Strings  MPP Tracker 97.00%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection Yes
Residual Current Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch Yes
Interface
LCD/LED display LCD+LED
Communication Interface

RS485/RS232 /WiFi/LAN
General Data
Operating Temperature Range (°C) -25 to +65℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤ 35
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 280mm*254.5mm*173mm（Excluding connectors and brackets）
Weight [kg] 5.7
Warranty  5 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,G99,VDE-AR-N 4105
Safety EMC/Standard

IEC/EN 62109-1,IEC/EN 62109-2，IEC/EN 61000-6-1,IEC/EN 61000-6-2,IEC/EN 61000-6-3,IEC/EN 61000-6-4
