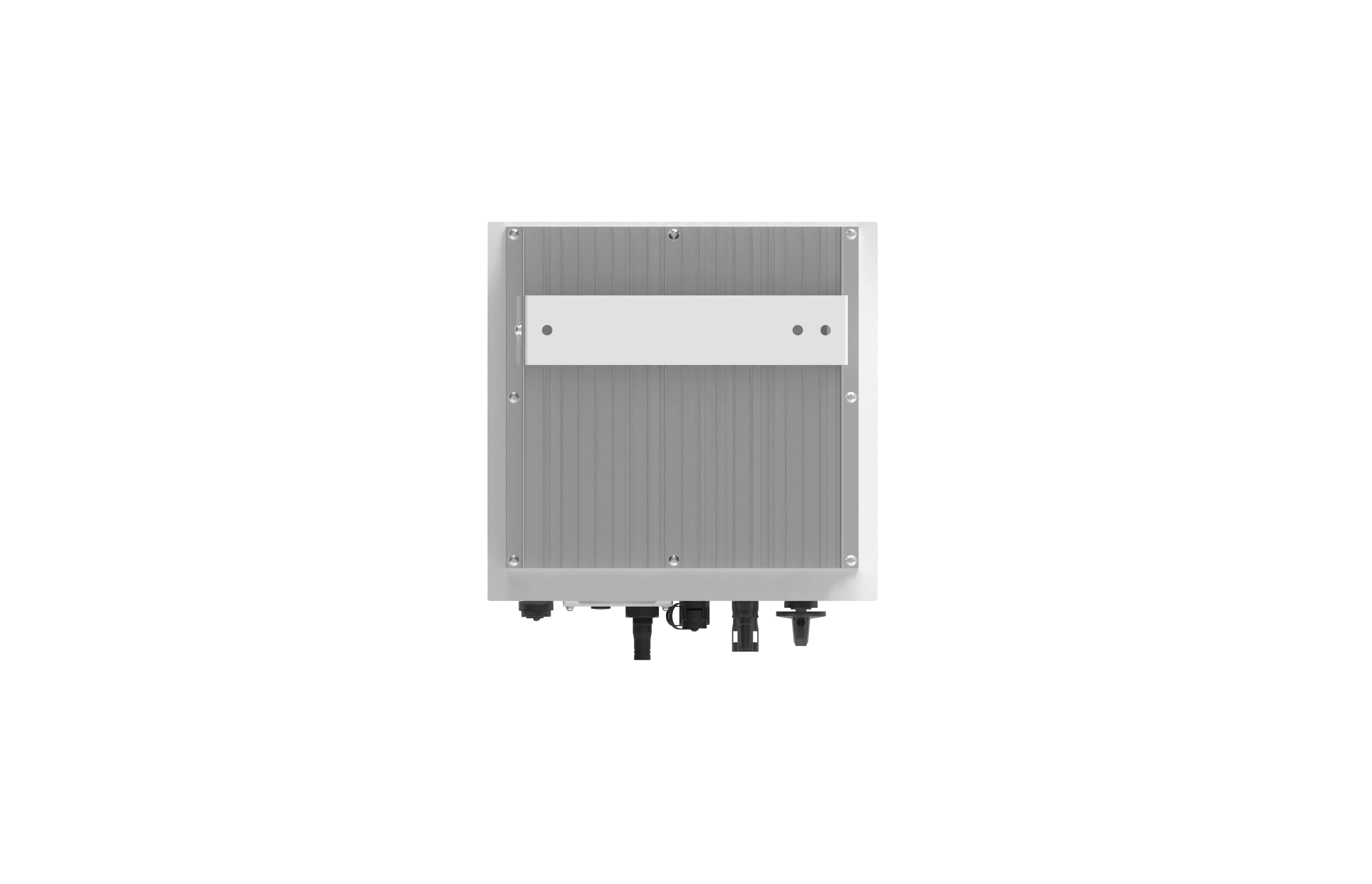

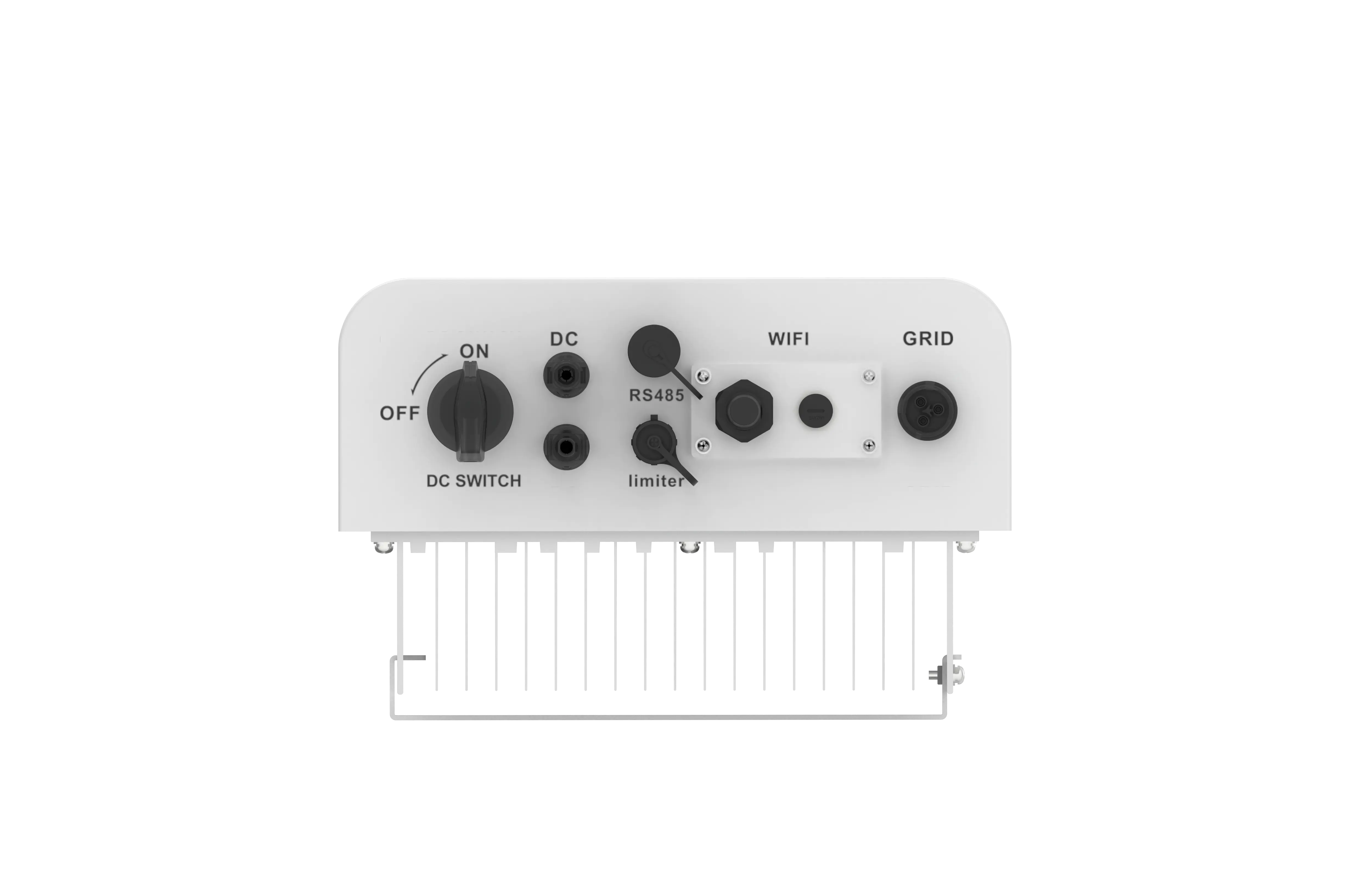

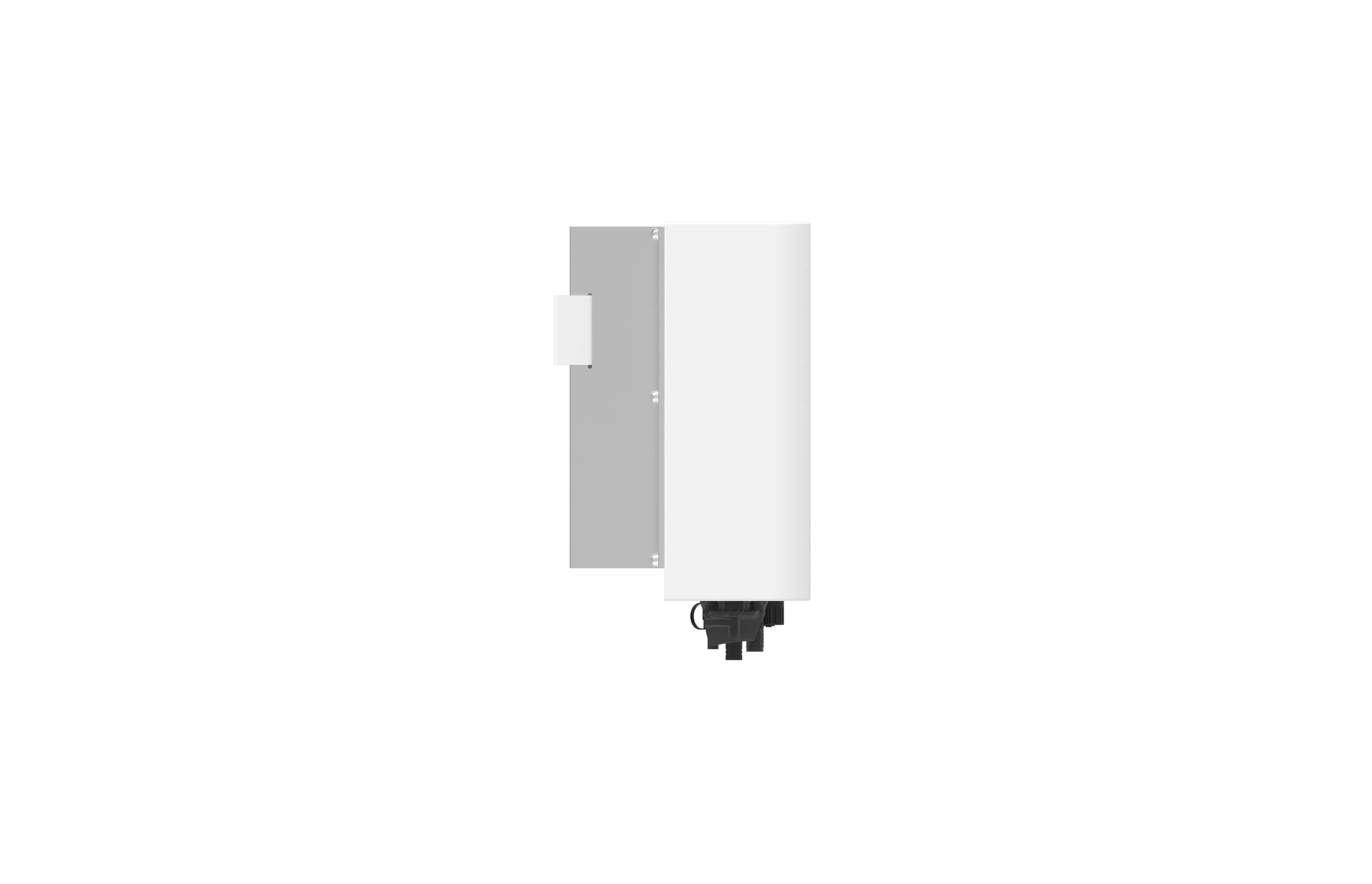

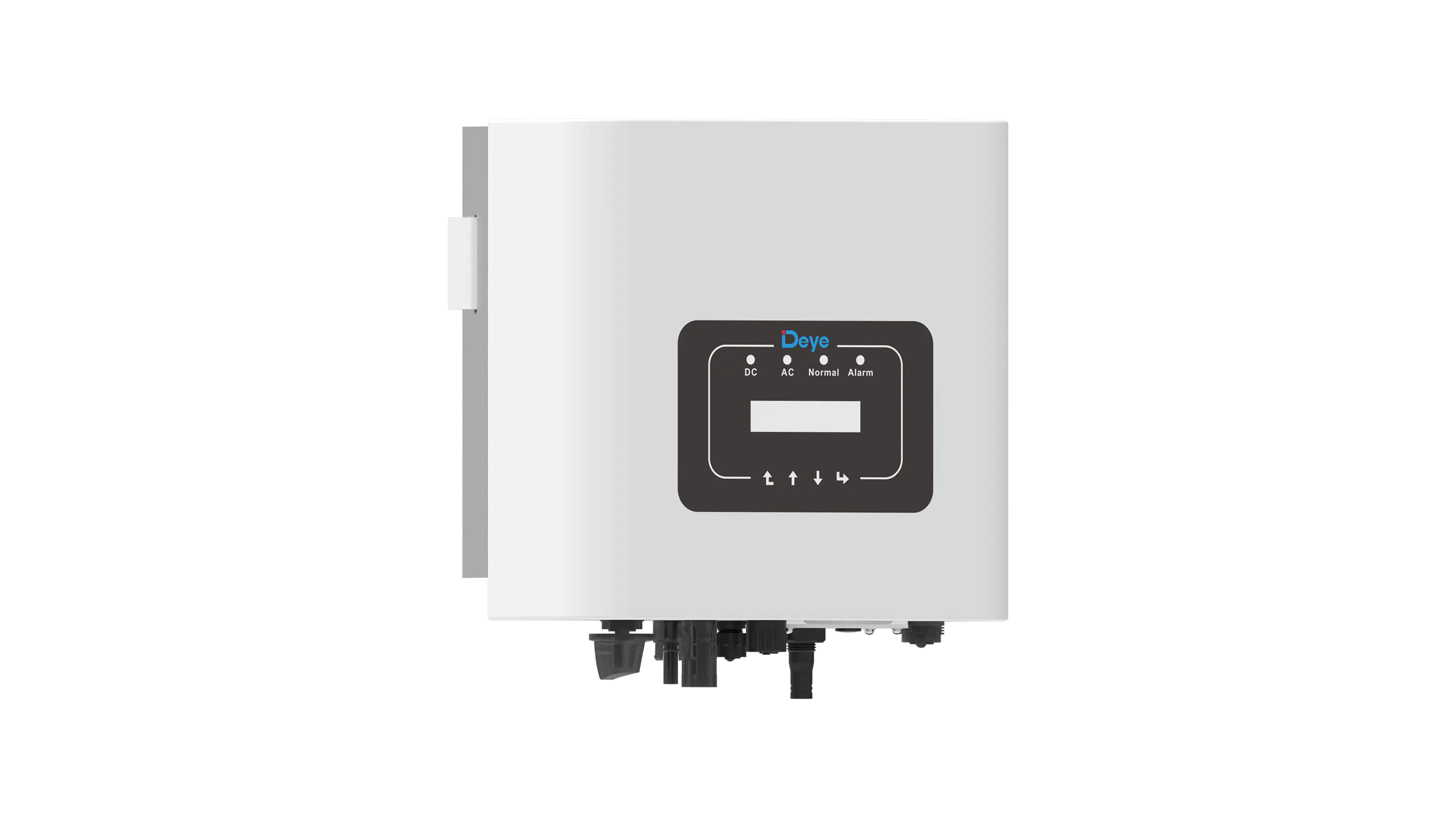

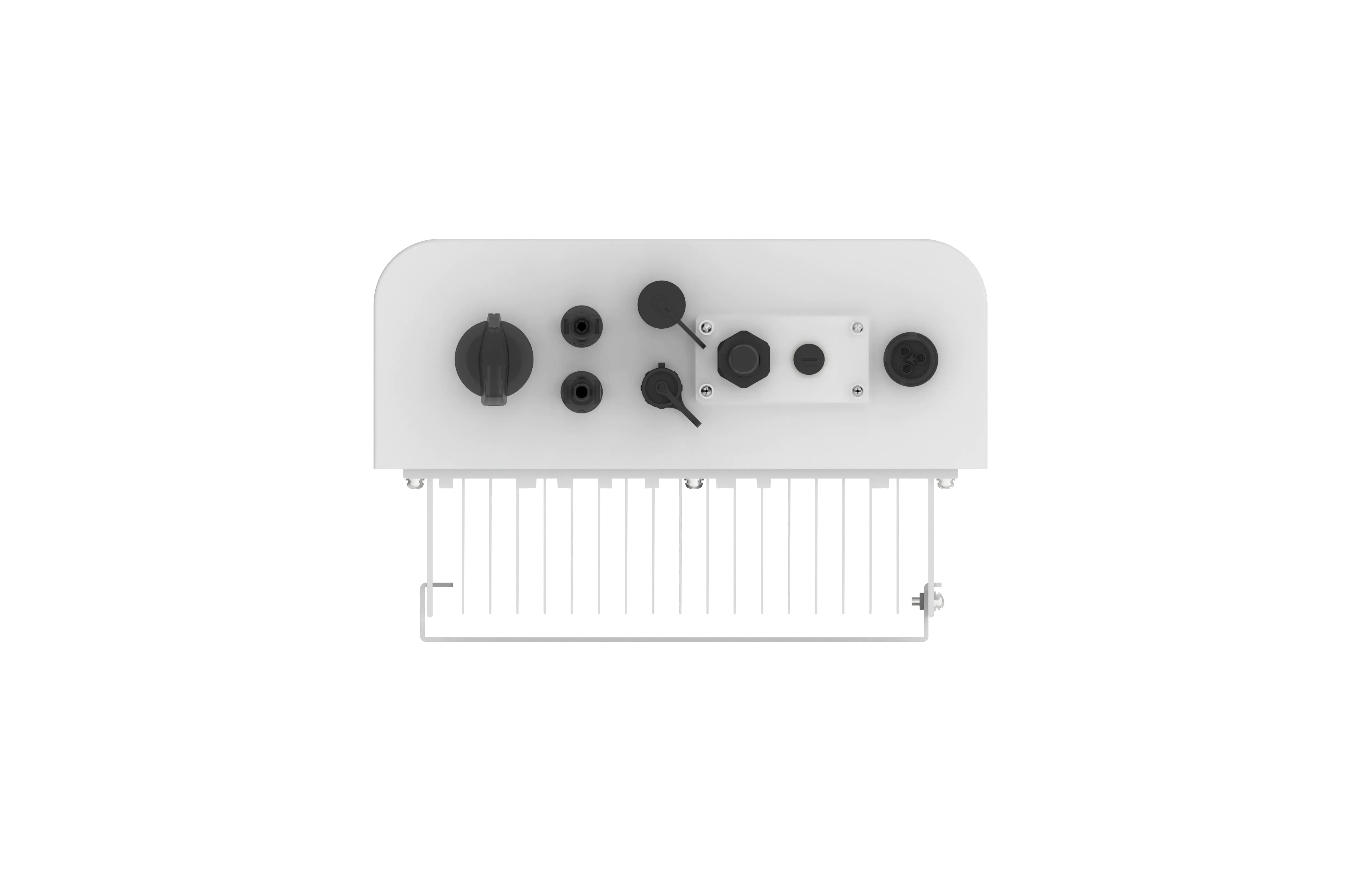

SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)

 Single Phase  | 1-4kW | 1 MPPT
SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1(Bangladesh)
  • 1 MPP tracker, Max. efficiency up to 97.5%
  • Zero export application,VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function(Optional)
  • Low start-up voltage of 80V
DOWNLOAD AREA
>> Download Datasheet <<

Technical Specifications

  • SUN-(1-4)K-G04P1-EU-AM1

  • Feedback
Model SUN-1K-G04P1-EU-AM1 SUN-1.5K-G04P1-EU-AM1 SUN-2K-G04P1-EU-AM1 SUN-2.2K-G04P1-EU-AM1 SUN-2.5K-G04P1-EU-AM1 SUN-2.7K-G04P1-EU-AM1 SUN-3K-G04P1-EU-AM1 SUN-3.3K-G04P1-EU-AM1 SUN-3.6K-G04P1-EU-AM1 SUN-4K-G04P1-EU-AM1
PV String Input Date
Max. PV Input Power(kW) 1.3 2 2.6 2.9 3.3 3.5 3.9 4.3 4.7 5.2
Max. PV Input Voltage(V) 550
Start-up Voltage(V) 80
MPPT voltage range(V) 70-500
Rated PV Input voltage(V) 360 420
Max. Operating PV Input Current (A) 20
Max. Input Short Circuit Current (A) 30
No. of MPP Trackers/No. of Strings  MPP Tracker 1/1
AC Output Side
Rated AC Output Active Power (kW) 1 1.5 2 2.2 2.5 2.7 3 3.3 3.6 4
Max. AC Output Apparent Power (kVA) 1.1 1.65 2.2 2.42 2.75 2.97 3.3 3.63 3.96 4.4
Rated AC output current (A) 4.6/4.4 6.8/6.5 9.1/8.7 10/9.6 11.4/10.9 12.3/11.8 13.7/13.1 15/14.4 16.4/15.7 18.2/17.4
Max. AC Output Current(A) 5/4.8 7.5/7.2 10/9.6 11/10.6 12.5/12 13.5/13 15/14.4 16.5/15.8 18/17.3 20/19.2
Rated output voltage/range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L+N+PE
Rated Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 97.30% 97.50%
Euro Efficiency 96.90% 97.00%
MPPT Efficiency ＞99%
Equipment Protection
DC Reverse Polarity Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
Insulation Impedance Detection Yes
DC Component Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection Yes
Residual Current Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch Yes
Interface
Communication Interface RS485/RS232

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C) -25 to +65℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤ 35
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 280mm*272.5mm*171.5mm（Excluding connectors and brackets）
Weight [kg] 5.6
Warranty  5 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,G99,VDE-AR-N 4105
Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
