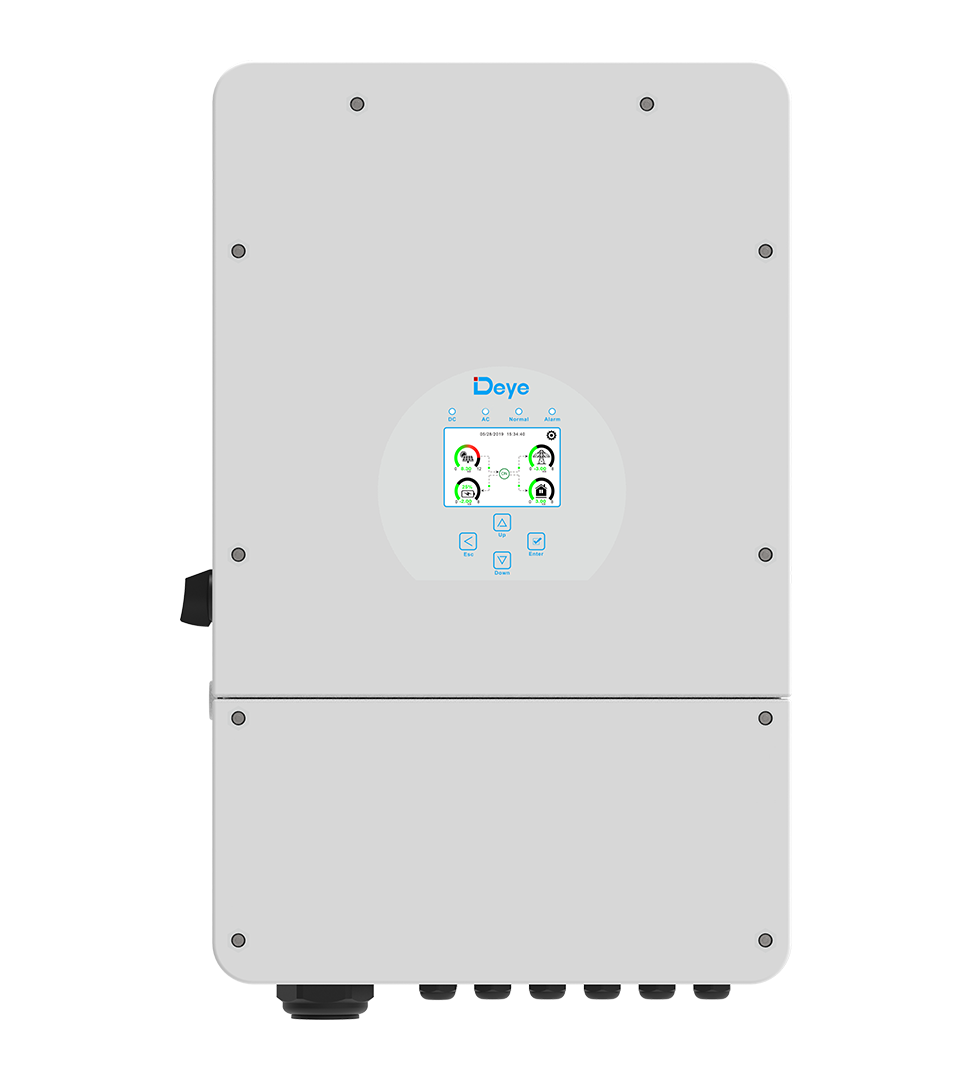

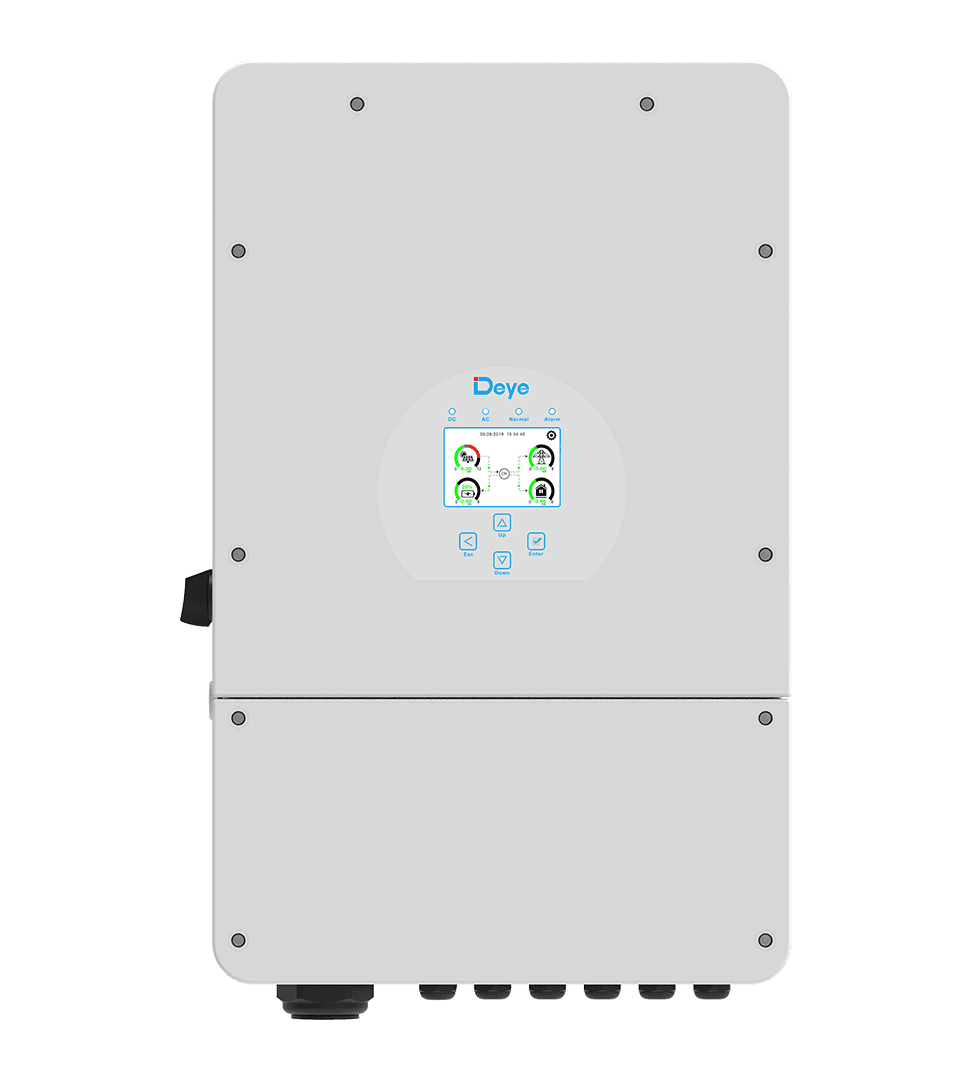

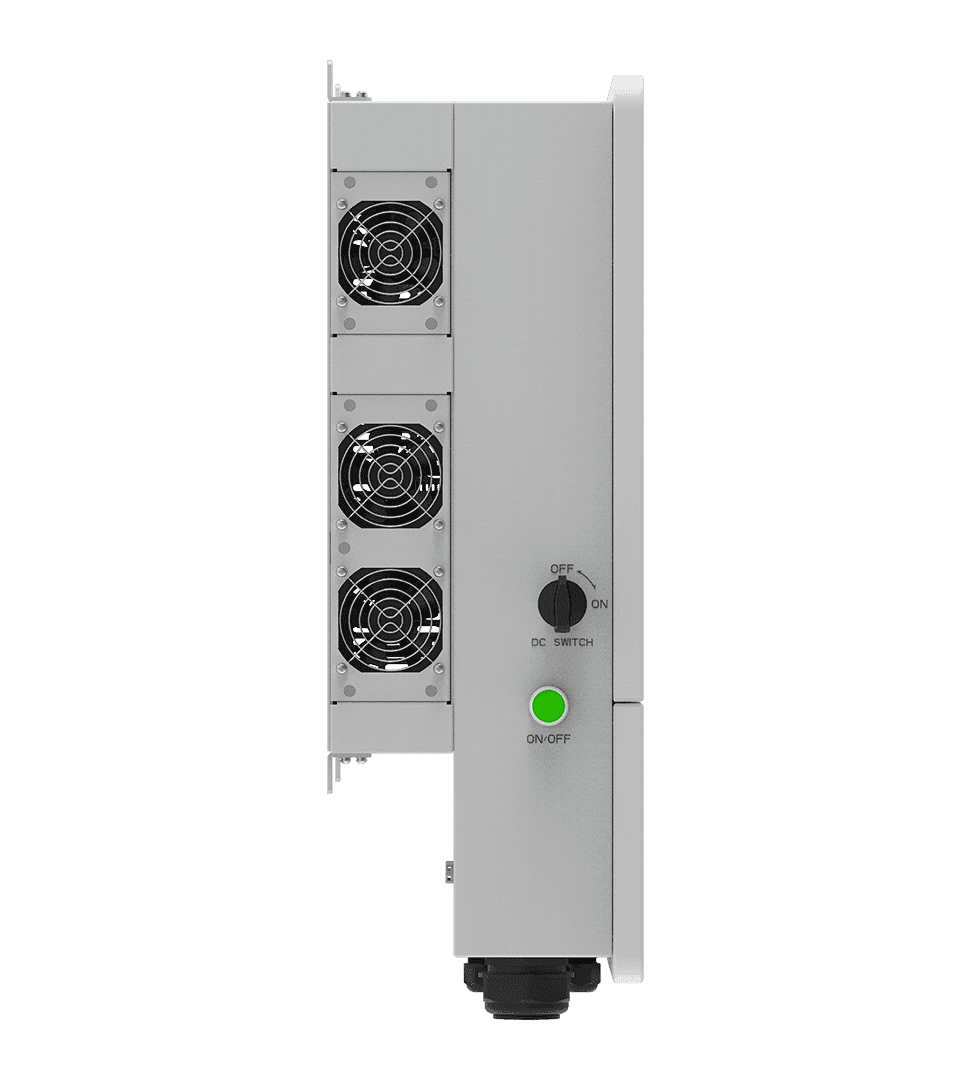

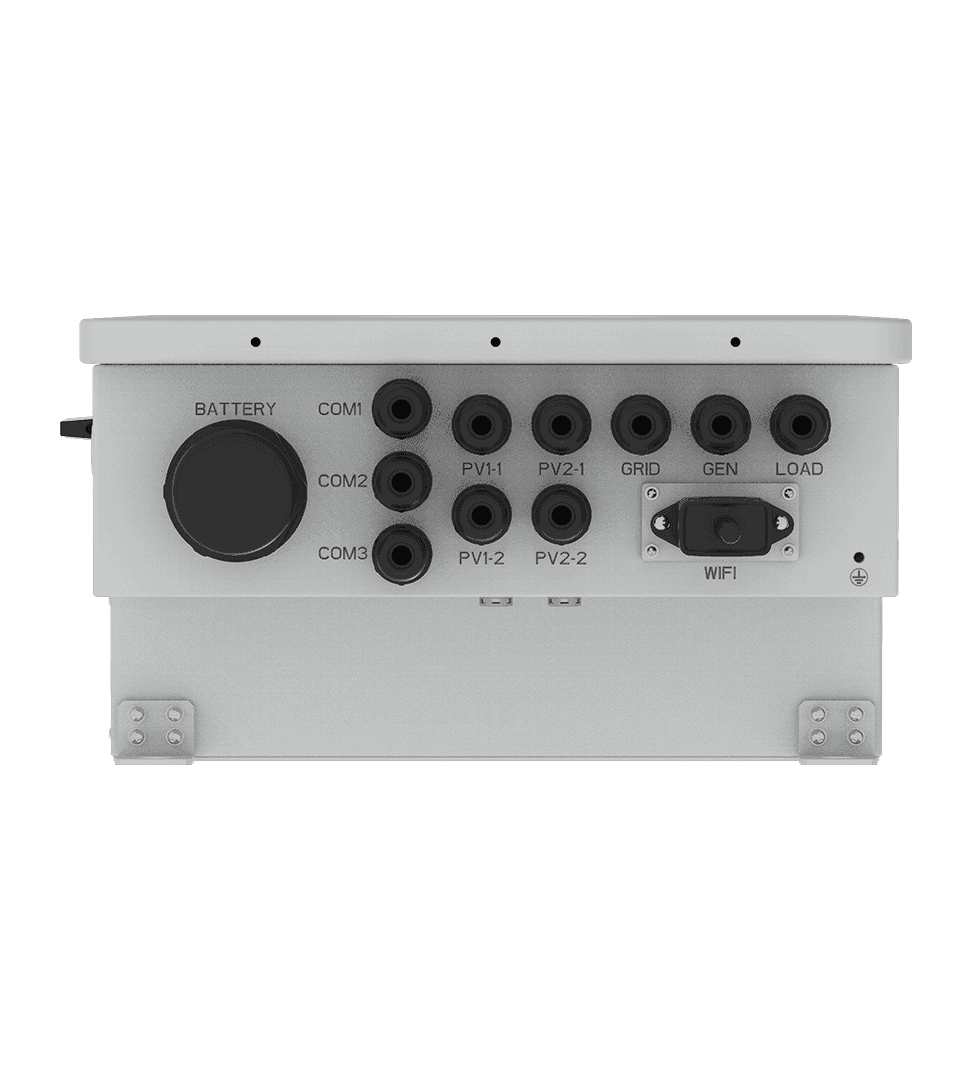

SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P

Single Phase Hybrid Inverter | 7.6-12kW  | 2/3 MPPT | LV Battery Supported

SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3-P
  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofit existing solar system
  • Max. charging/discharging current of 250A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
  • Max. 16 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(7.6-12)K-SG02LP1-EU-AM2-P
  • Feedback
Model SUN-7.6K-SG02LP1-EU-AM2-P SUN-8K-SG02LP1-EU-AM2-P SUN-10K-SG02LP1-EU-AM3-P SUN-12K-SG02LP1-EU-AM3-P
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging/Discharging Current(A) 190 190 220 250
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W)
 15200 16000 20000 24000
Max DC Input Power（W） 12160 12800 16000 19200
Max DC Input Voltage（V） 500
Start-up Voltage（V） 125
MPPT Voltage Range（V） 150-425
Rated DC Input Voltage(V) 370
Max. Operating PV Input Current (A) 32+32 32+32+32
Max. Input Short-Circuit Current (A) 60+60 60+60+60
No.of MPP Trackers/No.of String Per MPP Tracker 2/2+2 3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W） 7600 8000 10000 12000
Max AC Input/Output Apparent Power （VA） 8360 8800 11000 13200
Rated AC Input/Output Current（A） 34.6/33.1 36.4/34.8 45.5/43.5 54.6/52.2
Max AC Input/Output Current（A） 38/36.4 40/38.3 50/47.9 60/57.4
Max Continuous AC Passthrough (grid to load)（A） 50 60
Peak Power (off-grid)（W） 2 times of rated power,10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated input/output voltage 220/230V 0.85Un-1.1Un L+N+PE
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display LCD
Communication Interface
 WIFI, RS485, CAN
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 2000m
Noise ＜45
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated (solar), Isolated (battery)
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 420×670×233（Excluding connectors and brackets）
Weight[kg] 35.6
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation

IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,

OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
