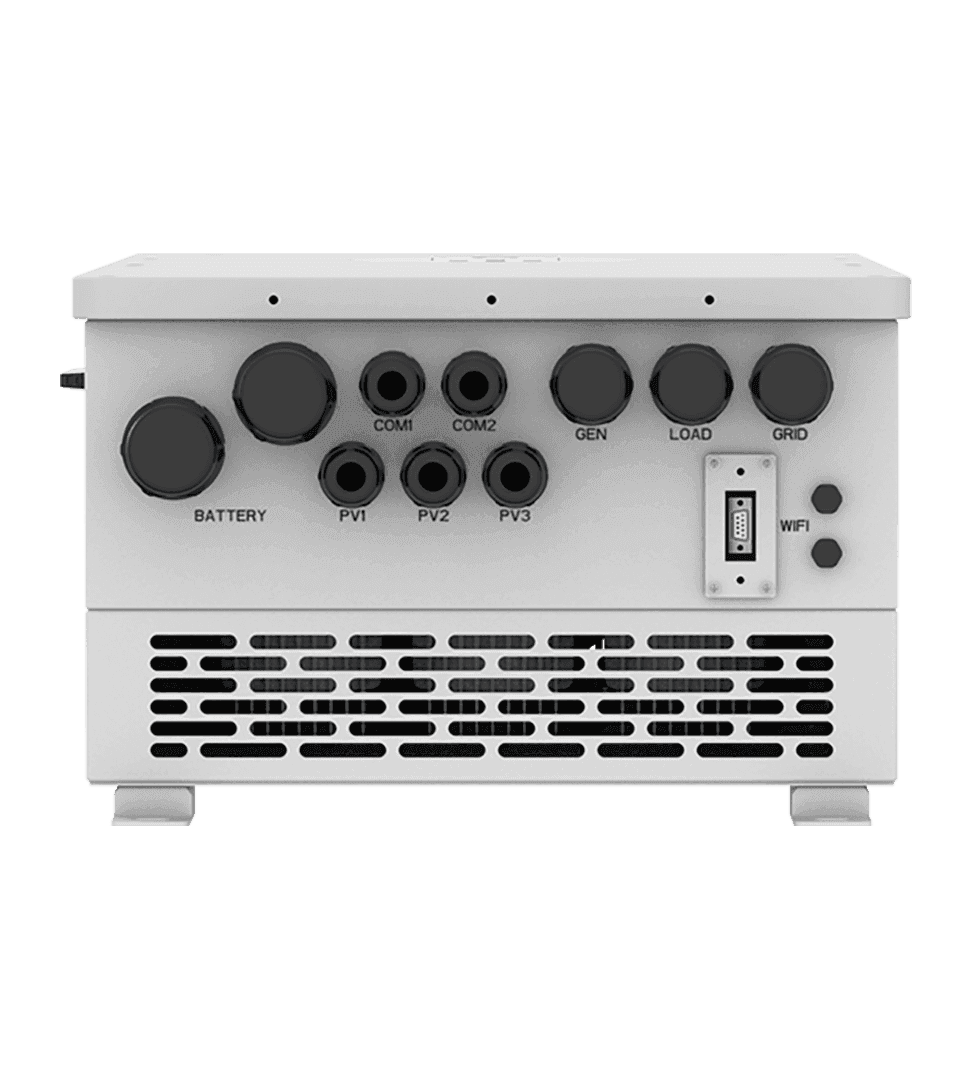

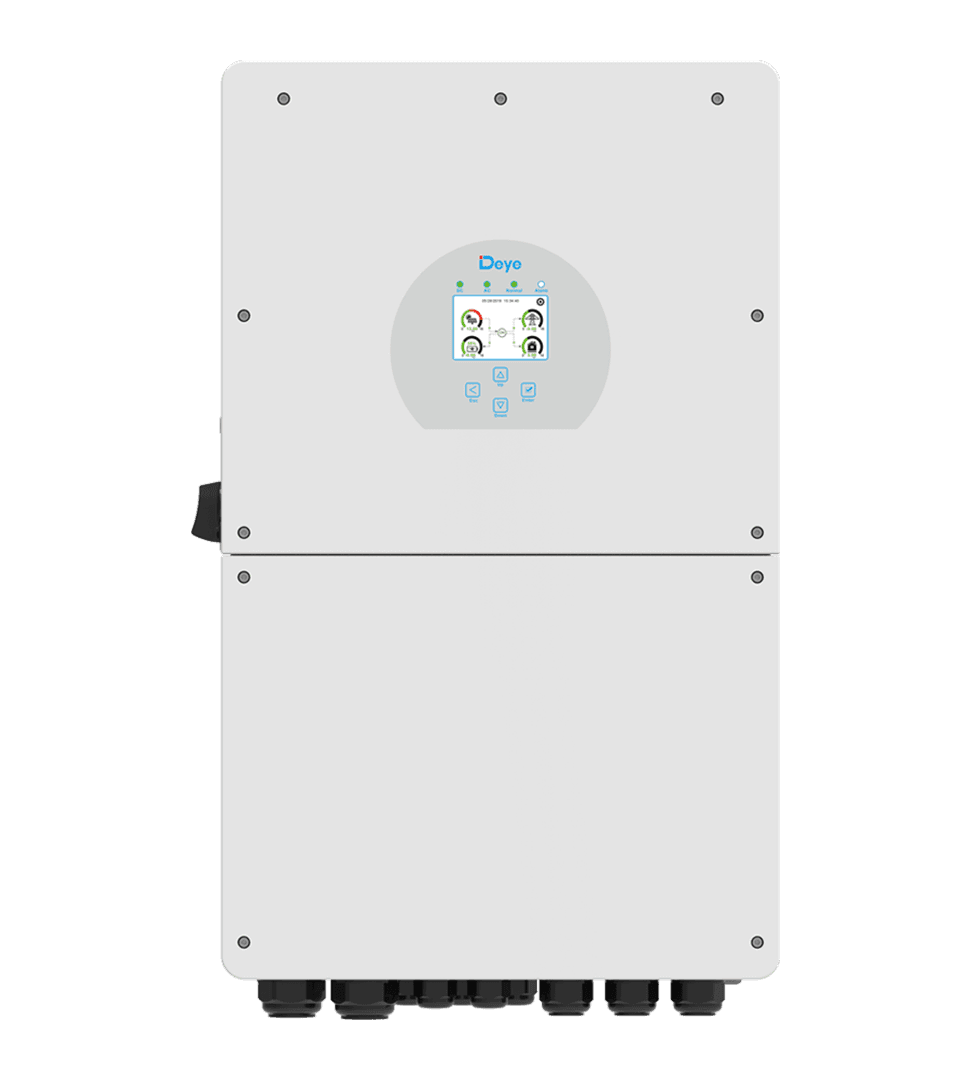

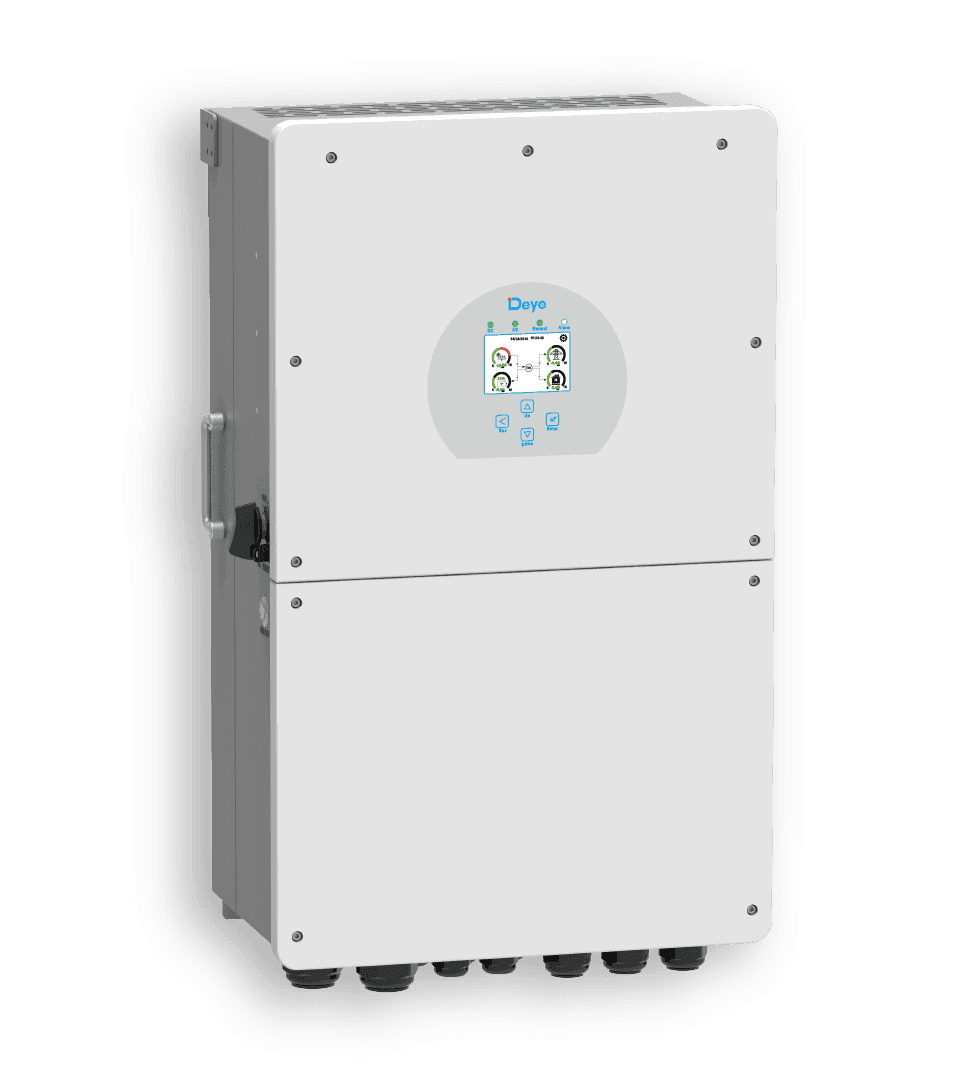

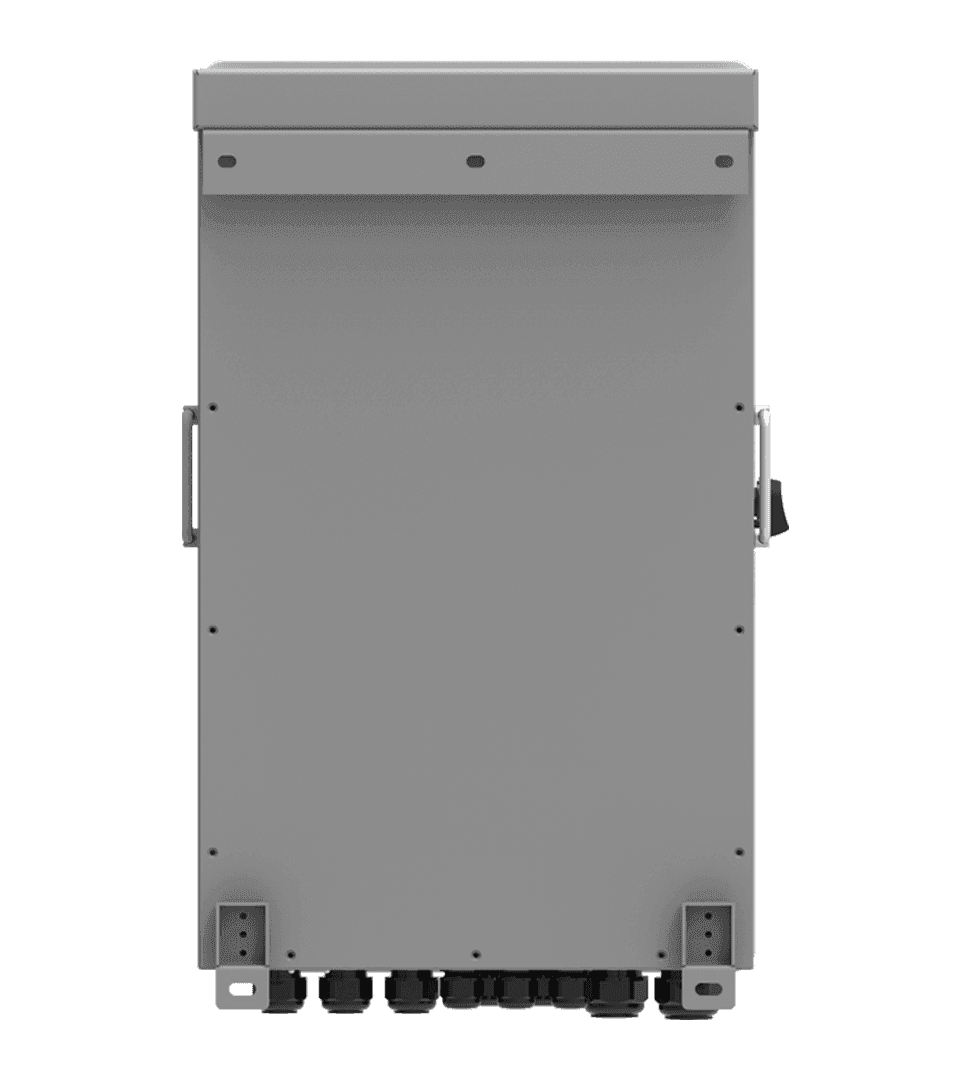

| Model |
SUN-12K-SG01LP1-EU |
SUN-14K-SG01LP1-EU |
SUN-16K-SG01LP1-EU |
| Battery Input Data |
|
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range(V) |
40-60 |
| Max.Charging/Discharging Current(A) |
220 |
250 |
290 |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| Number of battery input |
2 |
| PV String Input Data |
|
|
Max. PV Access Power (W)
|
24000 |
28000 |
32000 |
| Max PV Input Power（W） |
19200 |
22400 |
25600 |
| Max PV Input Voltage（V） |
500 |
| Start-up Voltage（V） |
125 |
| MPPT Voltage Range（V） |
150-425 |
| Rated PV Input Voltage(V) |
370 |
| Max Operating PV Input Current（A） |
32+32+32 |
| Max Input Short-Circuit Current（A） |
60+60+60 |
| No.of MPP Trackers/No.of Strings MPP Tracker |
3/2+2+2 |
| AC Input/Output Data |
|
| Rated AC Input/Output Active Power（W） |
12000 |
14000 |
16000 |
| Max AC Input/Output Apparent Power （VA） |
13200 |
15400 |
17600 |
| Rated AC Input/Output Current（A） |
54.5/52.2 |
63.6/60.9 |
72.7/69.6 |
| Max AC Input/Output Current（A） |
60/57.4 |
70/67
|
80/76.5 |
| Max Continuous AC Passthrough (grid to load)（A） |
100 |
| Peak Power (off-grid)（W） |
2 times of rated power,10s |
| Power Factor Adjustment Range |
0.8 leading-0.8lagging |
| Rated Input/Output Voltage |
220/230V 0.85Un-1.1Un L+N+PE |
| Rated Input/Output Grid Frequency/Range(Hz) |
50/45-55, 60/55-65 |
| Total Current Harmonic Distortion THDi |
<3% (of nominal power) |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max. Efficiency |
97.6% |
| Euro Efficiency |
96.5% |
| MPPT Efficiency |
＞99% |
| Equipment Protection |
|
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
|
| Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
| Interface |
|
| LCD/LED Display |
LCD |
|
Communication Interface
|
WIFI, RS485, CAN |
| General Data |
|
| Operating Temperature Range(℃) |
-40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity |
0~100% |
| Permissible Altitude |
2000m |
| Noise(dB) |
＜45 |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated (solar), Isolated (battery) |
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] |
464*763*282（Excluding Connectors and Brackets） |
| Weight[kg] |
52 |
| Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling |
Intelligent Air Cooling |
| Grid Regulation |
IEC 61727,IEC 62116,NRS 097 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
