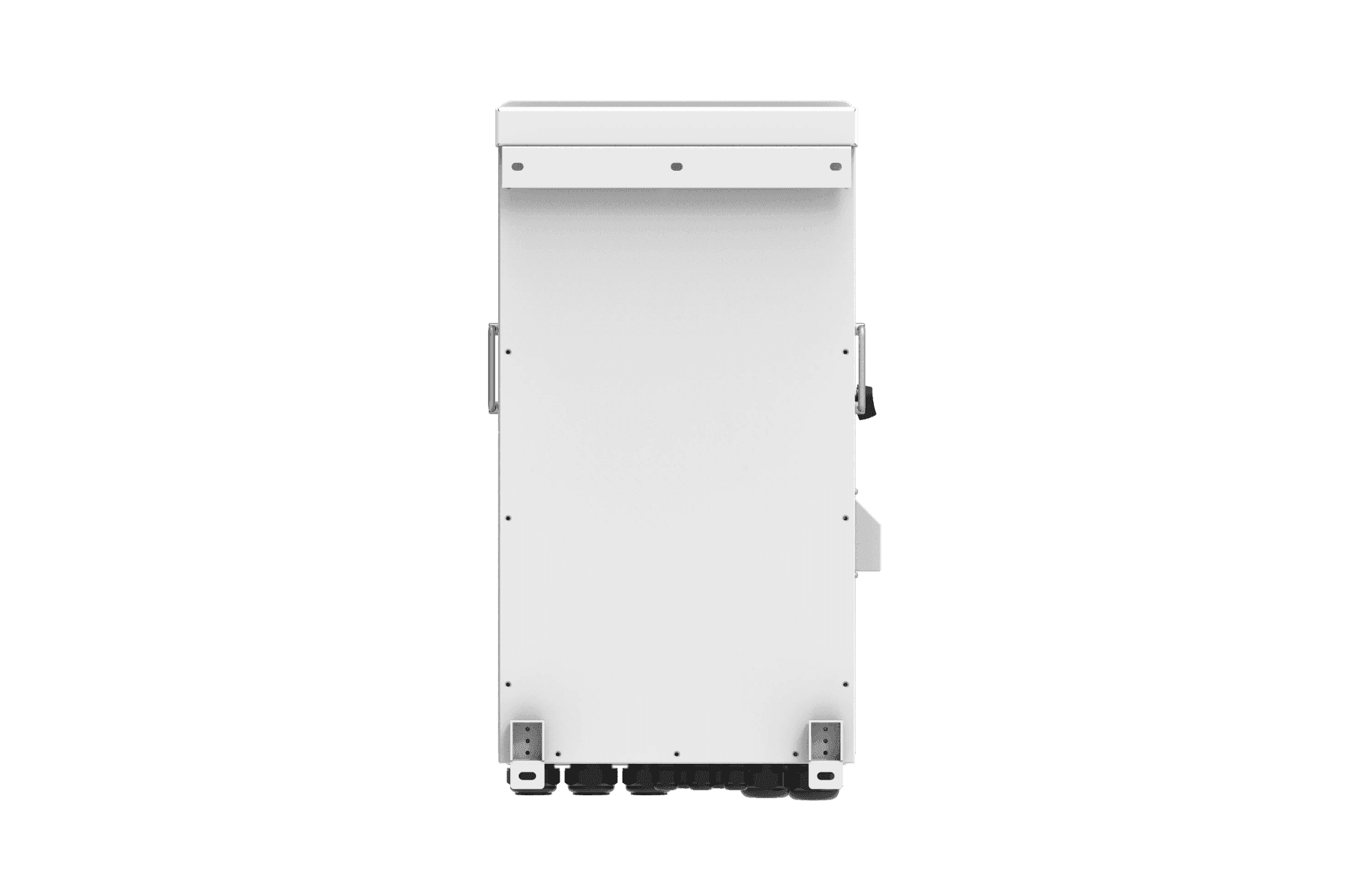

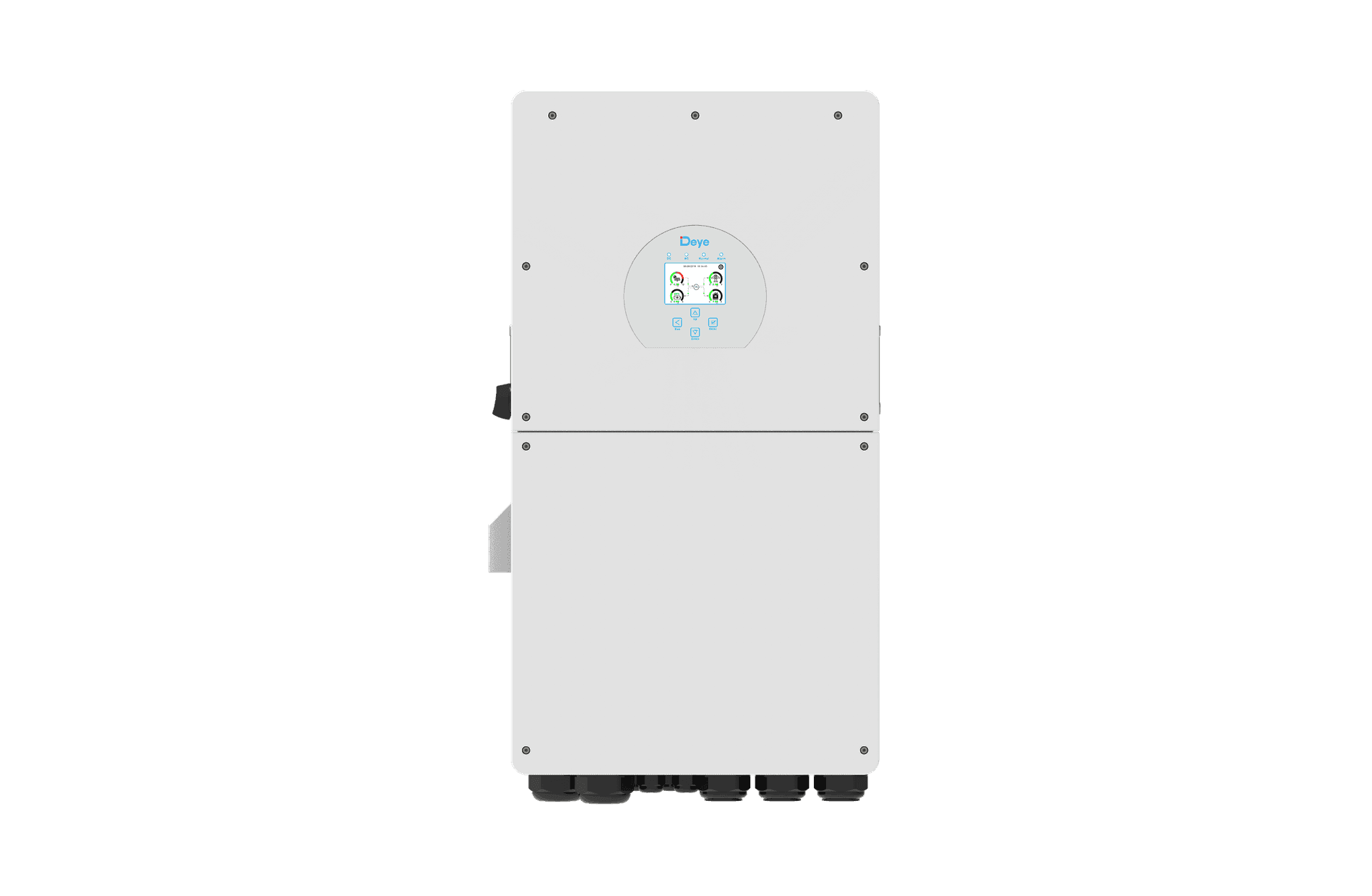

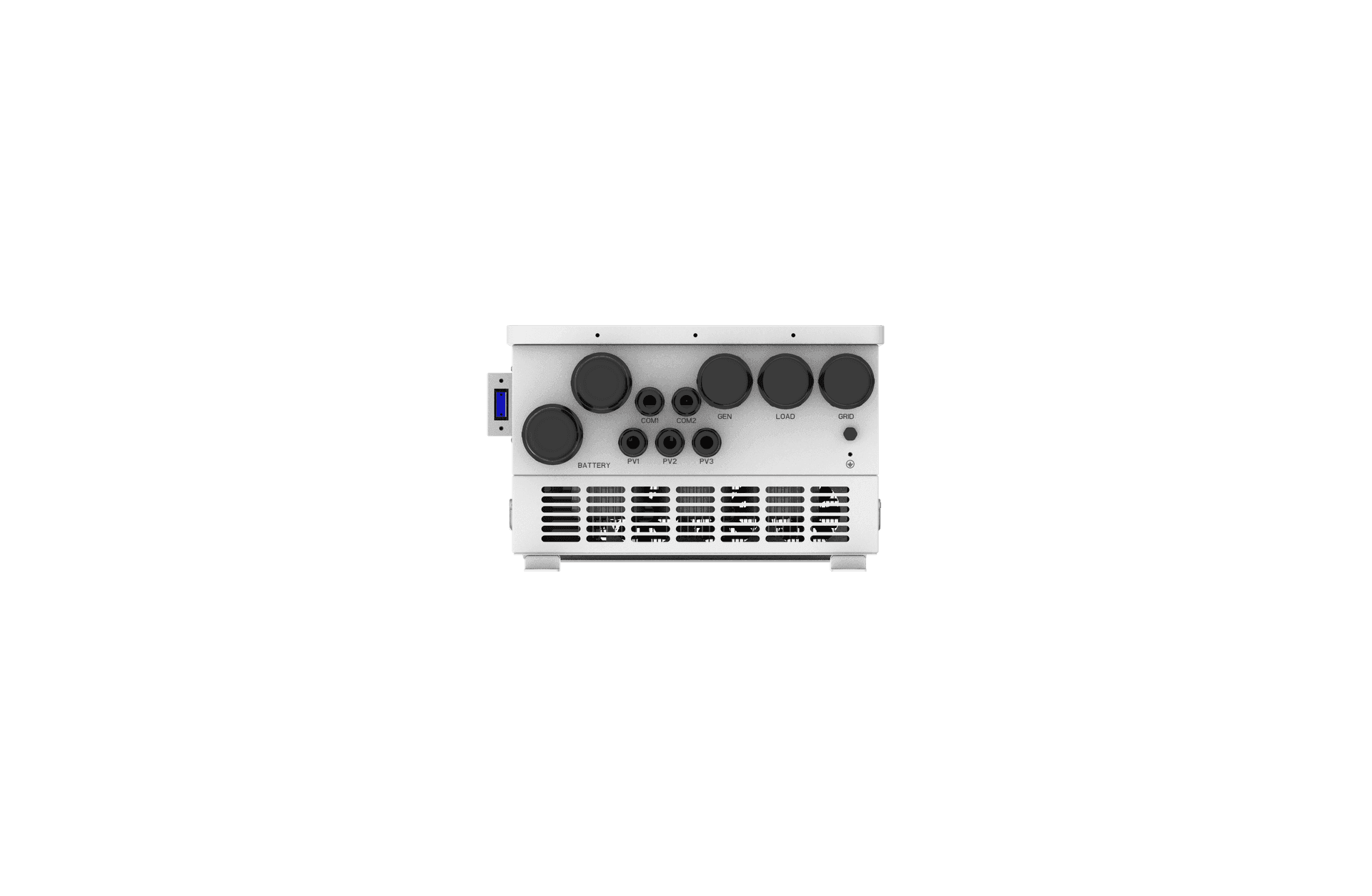

SUN-12/14/16/18K-SG01LP1-EU-AM3-P

Single Phase Hybrid Inverter | 12-18kW  | 3 MPPT | LV Battery Supported

SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • SUN-12/14/16/18K-SG01LP1-EU-AM3-P
  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofit existing solar system
  • Max. charging/discharging current of380A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
  • Max. 16 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<
>> Download Certificate <<

certificate_emc+en62920-13

certificate_emc+eniec61000-14

certificate_lvd+en62109-12

certificate_tuvmark+en62109-12

Technical Specifications

  • SUN-(12-18)K-SG01LP1-EU-AM3-P
  • Feedback
Model SUN-12K-SG01LP1-EU-AM3-P SUN-14K-SG01LP1-EU-AM3-P SUN-16K-SG01LP1-EU-AM3-P SUN-18K-SG01LP1-EU-AM3-P
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging/Discharging Current(A) 220 250 290 380
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W)
 24000 28000 32000 36000
Max. PV Input Power（W） 19200 22400 25600 28800
Max. PV Input Voltage（V） 500
Start-up Voltage（V） 125
MPPT Voltage Range（V） 150-425
Rated PV Input Voltage(V) 370
Max. Operating PV Input Current (A) 36+36+36
Max. Input Short-Circuit Current (A) 54+54+54
No.of MPP Trackers/No.of Strings MPP Tracker 3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W） 12000 14000 16000 18000
Max. AC Input/Output Apparent Power （VA） 13200 15400 17600 19800
Rated AC Input/Output Current（A） 54.6/52.2 63.7/60.9 72.8/69.6 81.9/78.3
Max. AC Input/Output Current（A） 60/57.4 70/67 80/76.6 90/86.1
Max. Continuous AC Passthrough (grid to load)（A） 100
 200
Peak Power (off-grid)（W） 2 times of rated power,10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated input/output voltage 220/230V 0.85Un-1.1Un L+N+PE
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display LCD
Communication Interface
 WIFI, RS485, CAN
General Data
Operating Temperature Range(℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 3000m
Noise(dB) ＜55
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated (solar), Isolated (battery)
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 464×763×282 (Excluding Connectors and Brackets)
 464×863×282
Weight[kg] 54.1
 59.8
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, AS 4777.2, NRS 097
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
