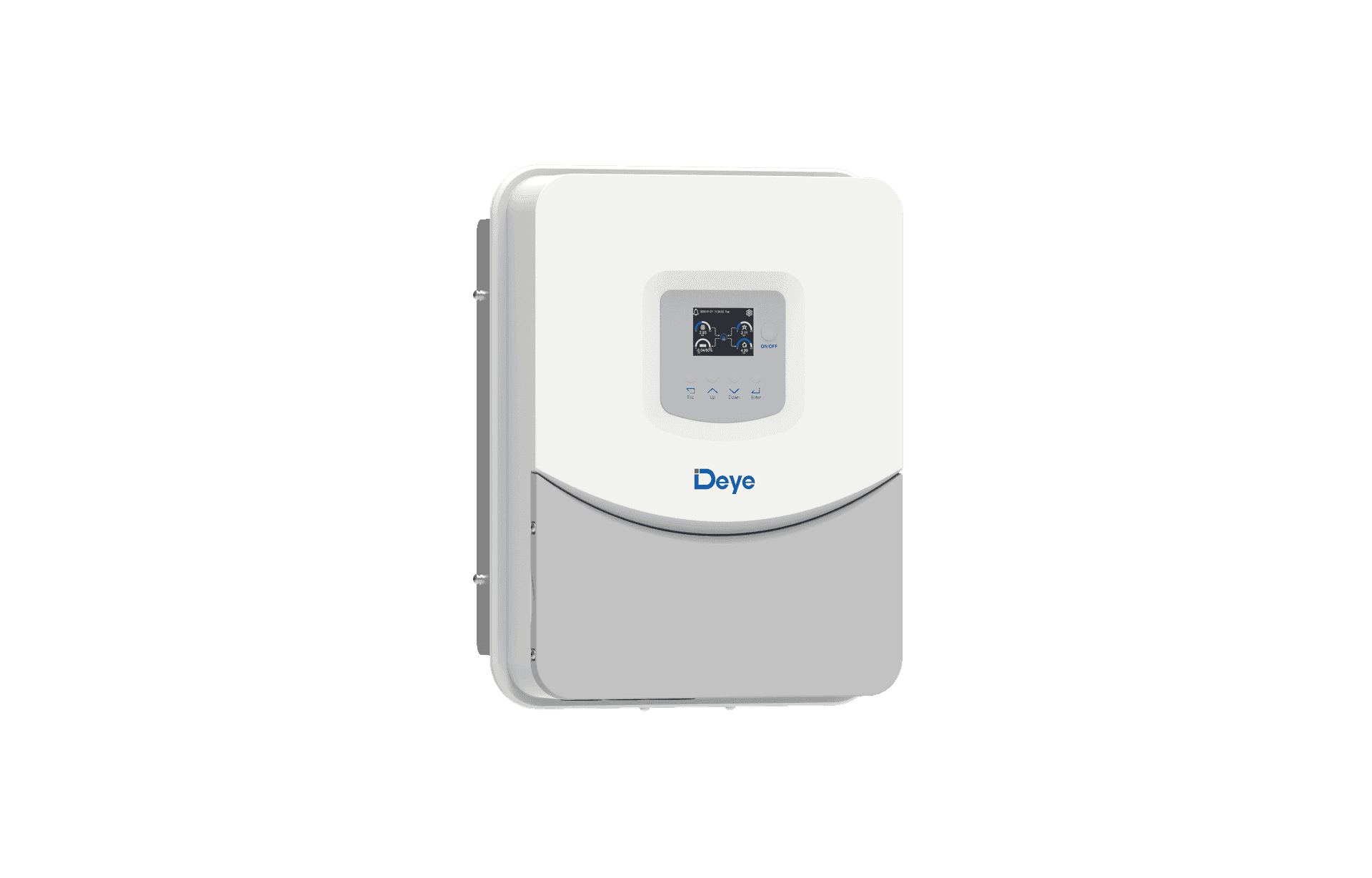

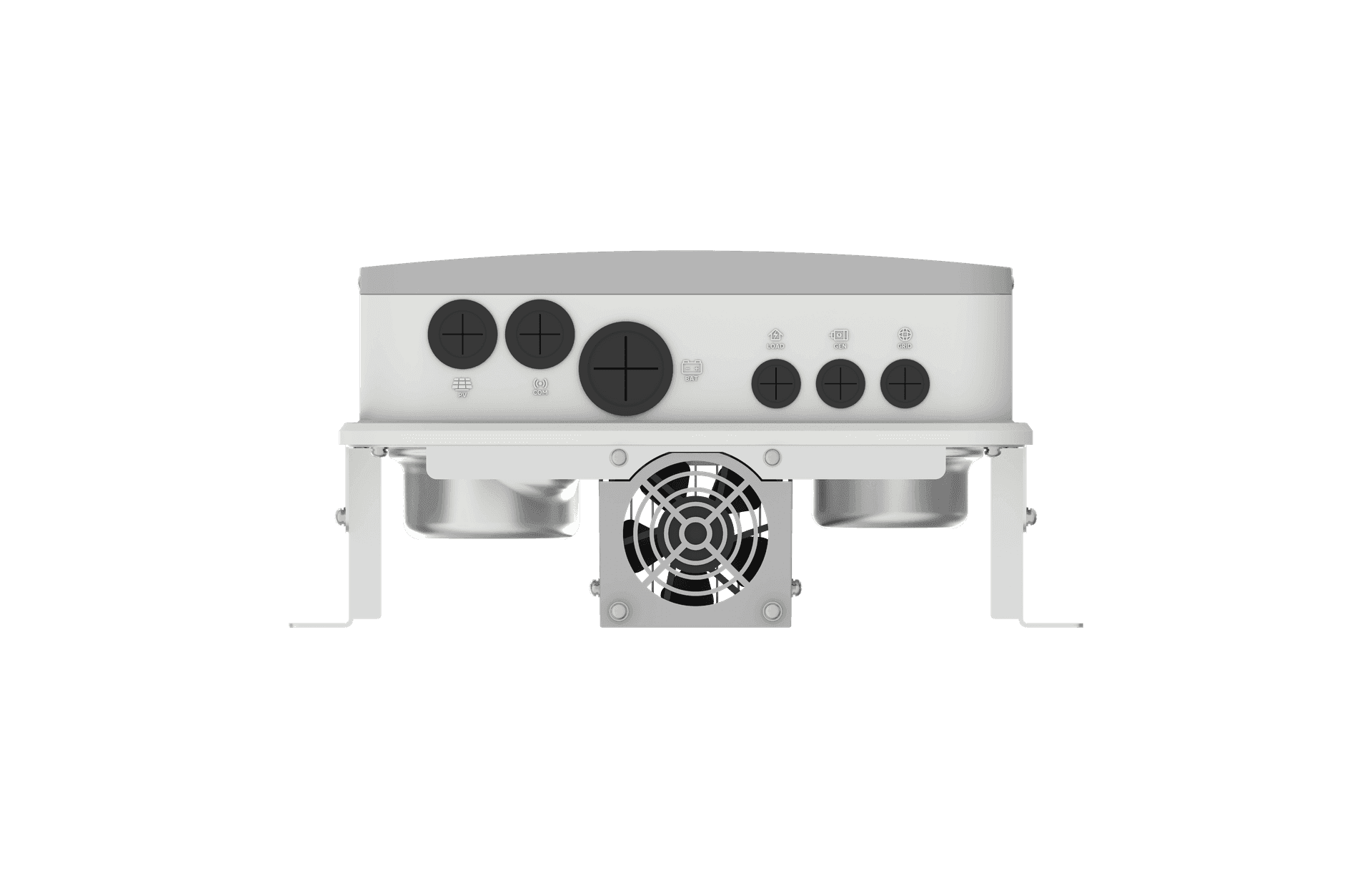

SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2

Lighter, Simpler, Easier to Install.
SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2
  • Lightweight Design for Easy Installation
  • Max. 140A Charge/Discharge Current
  • 2× PV Oversizing Capability
  • Compatible with 18A PV Modules
  • 200% Peak Output
  • Up to 97.6% Conversion Efficiency
  • 4ms On/Off-Grid Switching
  • Max. 16 Units in Parallel
  • IP65 Protection Rating
  • Noise＜46 dB

DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-(3-6.6)K-OG03LP1-EU-AM1/AM2

  • Feedback
Model SUN-3K-OG03LP1
-24-EU-AM1		 SUN-3K-OG03LP1
-EU-AM1		 SUN-3.6K-OG03LP1-EU-AM1 SUN-4K-OG03LP1-EU-AM1 SUN-5K-OG03LP1-EU-AM2 SUN-6K-OG03LP1-EU-AM2 SUN-6.6K-OG03LP1-EU-AM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 20-30 40-60
Max. Charging/Discharging Current (A) 135 70 90 95 120 135 140
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 6000 7200 8000 10000 12000 13200
Max. PV Input Power (W) 4800 5760 6400 8000 9600 10560
Max. PV Input Voltage (V） 500
Start-up Voltage (V) 125
MPPT Voltage Range(V） 150-425
Rated PV Input Voltage (V) 370
Max. Operating PV Input Current (A） 18 18+18
Max. Input Short-Circuit Current (A) 27 27+27
No. of MPP Trackers/No. of Strings MPP Tracker 1/1 2/1+1
AC Output Data
Rated AC Output Power (VA/W) 3000 3600 4000 5000 6000 6600
Max. AC Output Power (VA/W) 3000 3600 4000 5000 6000 6600
Max. AC Output Current (A) 13.1 15.7 17.4 21.8 26.1 28.7
Rated AC Output Current (A) 13.1 15.7 17.4 21.8 26.1 28.7
Peak Power (W） 2 times of rated power, 10s
Rated Output Voltage (V) 230   L+N+PE
Rated Output Frequency 50Hz / 60Hz
Output Voltage Waveform Pure Sine Wave
Total Current Harmonic Distortion THDi ＜3%
AC Input Date(Grid and Generator)
Max. Input Power to Battery (W) 3000 3600 4000 5000 6000 6600
Rated Input Voltage (V） 230
Rated Input Frequency 50Hz / 60Hz
Gird Input Current (A) 35
Generator Input Current (A) 35
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Insulation Impedance Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display LCD
Communication Interface WIFI/RS485/CAN
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 3000m
Noise (dB) <46
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated (solar), Isolated (battery)
Over Voltage Category OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm) 323×424×176 (Excluding Connectors and Brackets)
Weight (kg） 8.6
Type of Cooling Intelligent Air Cooling
Warranty Standard 5 years, extendable warranty
Safety / EMC Standard IEC62109-1/2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
