SUN-M220/225G4-EU-Q0

 Micro Inverter | 2200-2250W | 4MPPT

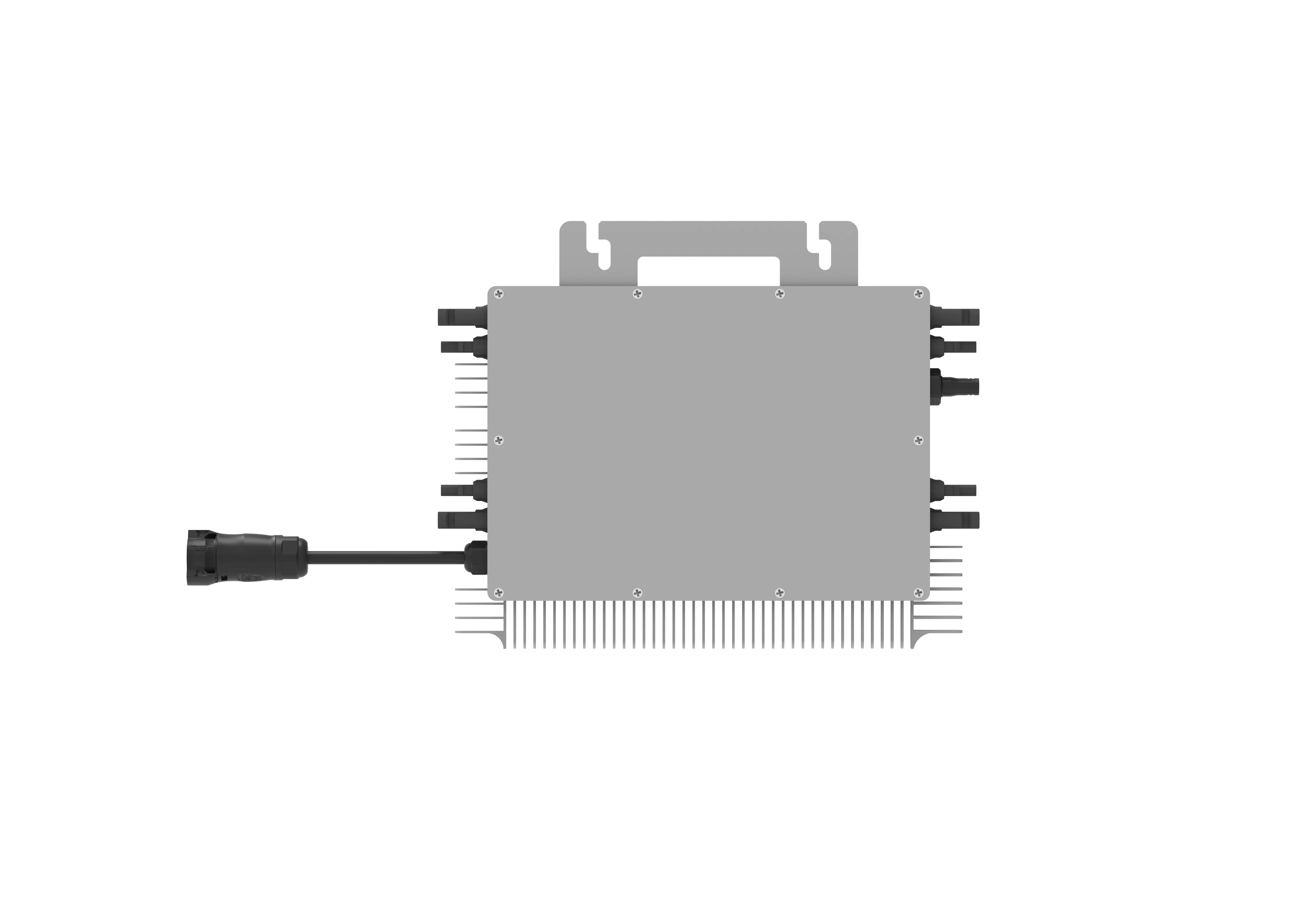

SUN-M220/225G4-EU-Q0

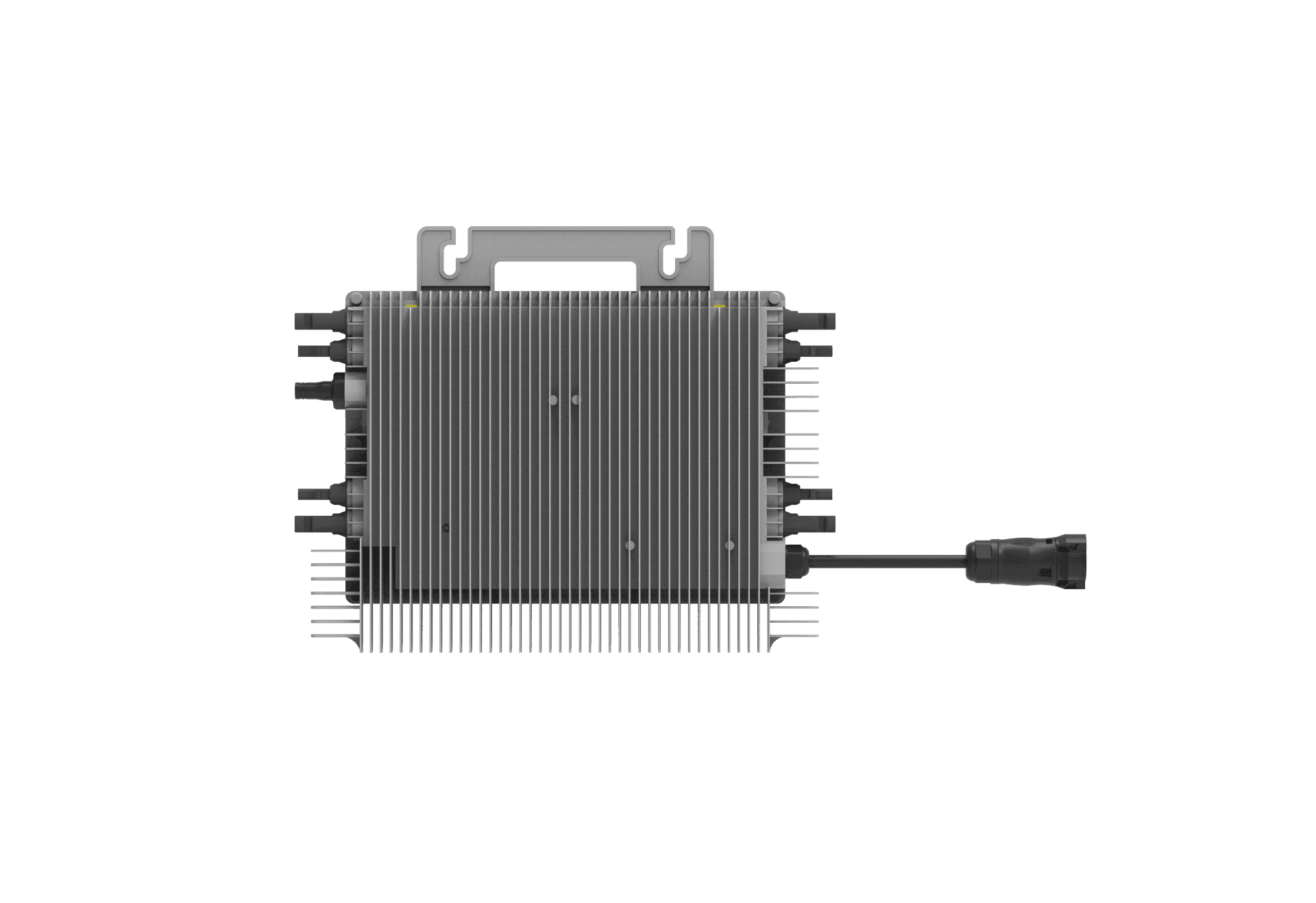

  • SUN-M220/225G4-EU-Q0

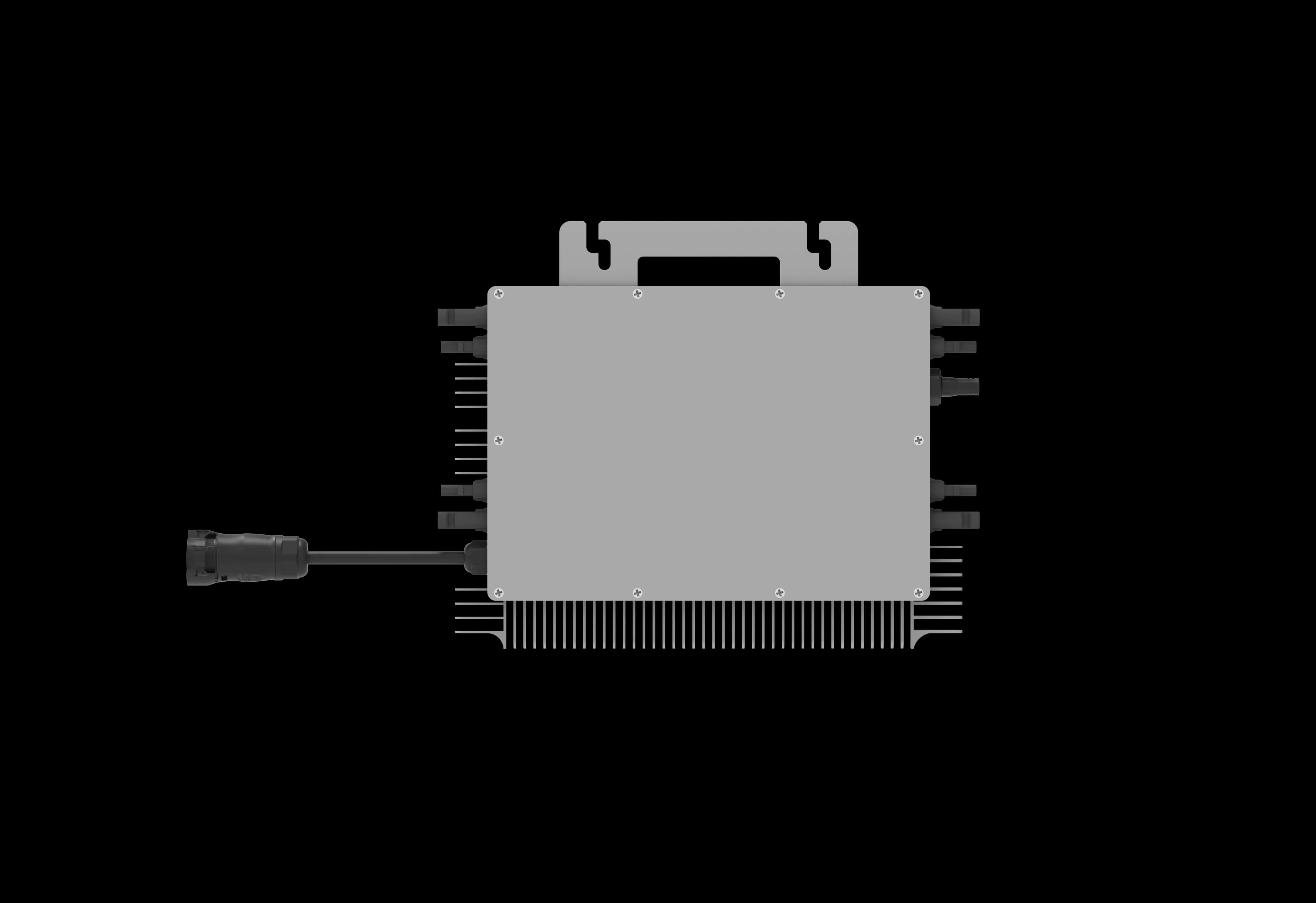

  • SUN-M220/225G4-EU-Q0

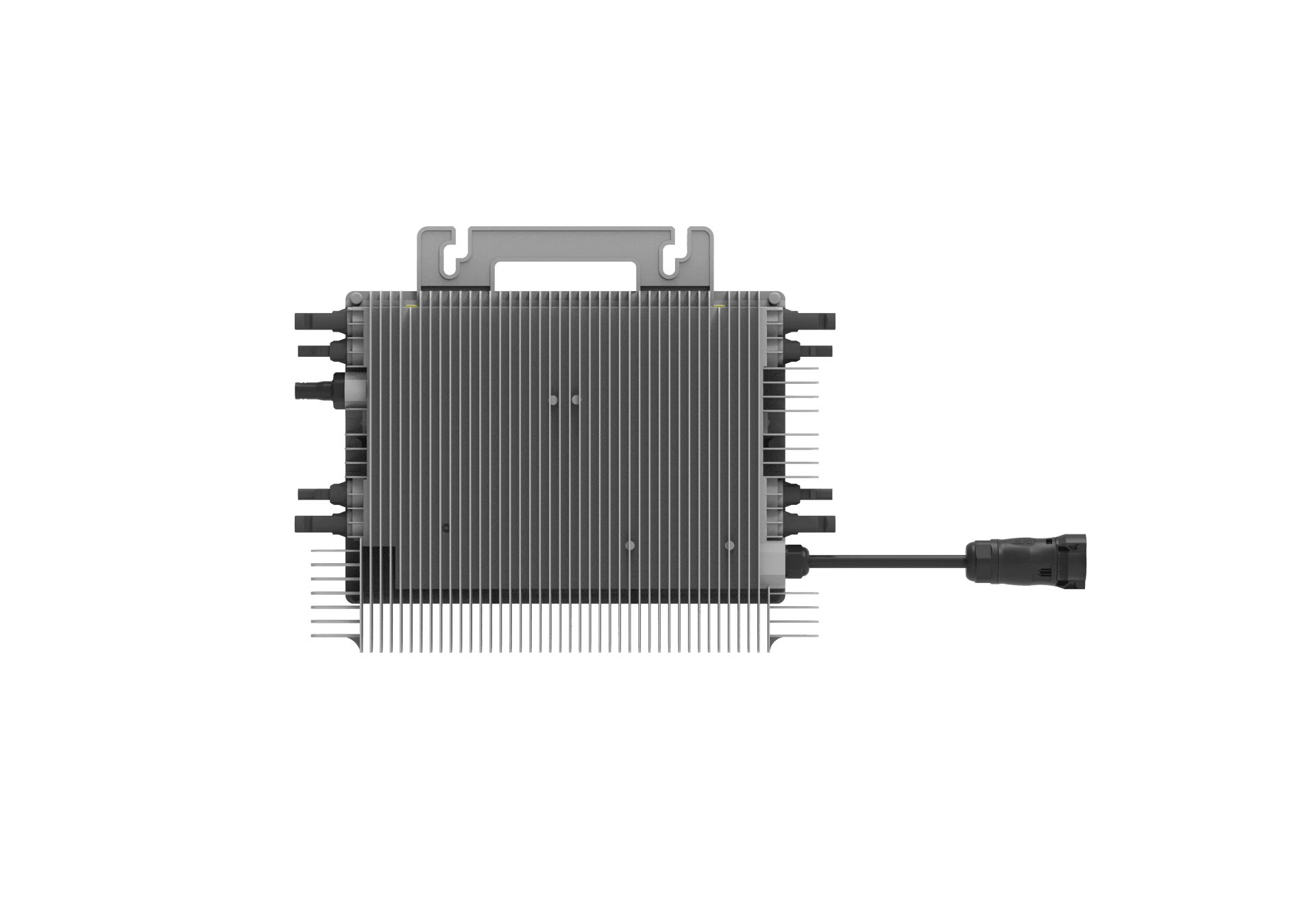

  • SUN-M220/225G4-EU-Q0
  • SUN-M220/225G4-EU-Q0
  • IP67 protection degree, *10 years warranty
  • Max. DC input current of 18A, adapt to 790W
    PV module
  • WIFI communication
  • Rapid shutdown function
  • 4 MPP trackers, module level monitoring
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-M(220-225)G4-EU-Q0
  • Feedback
Model SUN-M220G4-EU-Q0 SUN-M225G4-EU-Q0
PV String Input Data
Max. PV Input Power(W) 210-770(4 Piece) 210-790(4 Piece)
Max. PV Input Voltage(V) 60
Start-up Voltage(V) 20
MPPT voltage range(V) 25-55
Rated PV Input voltage(V) 42.5
Max. Input Short-Circuit Current (A) 27+27+27+27
Max. Operating PV Input Current(A)

18+18+18+18
No. of MPP Trackers/No. of String per MPP Tracker 4/1
AC Output Side
Rated AC Output Active Power(W) 2200 2250
Max.AC Output Apparent Power(VA) 2200 2250
Rated AC output current (A) 10/9.6 10.3/9.8
Max.AC Output Current(A) 10/9.6 10.3/9.8
Rated output voltage/range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Max. unit per branch 3 3
Power Factor Adjustment Range 0.9 leading to 0.9 lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 96.5%
Euro Efficiency 96.0%
MPPT Efficiency >99%
Equipment Protection
DC Polarity Reverse Connection Protection YES
AC Output Overcurrent Protection YES
AC Output Overvoltage Protection YES
AC Output Short Circuit Protection YES
Thermal Protection YES
Insulation Impedance Detection YES
Anti-islanding Protection YES
Surge Protection Level TYPE II(AC)
Interface
Communication Interface WiFi
General Data
Operating Temperature Range (°C) -40 to +65℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤ 25
Ingress Protection(IP) Rating IP 67
Inverter Topology Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size（W*H*Dmm)

358×255.5×36.5 (Excluding Connectors and Brackets)
Weight (kg) 5.2
Warranty
 10 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
