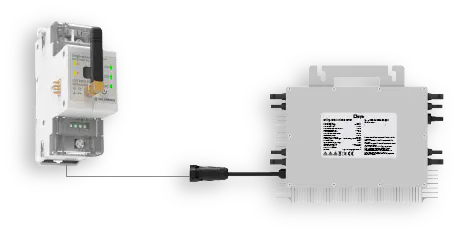

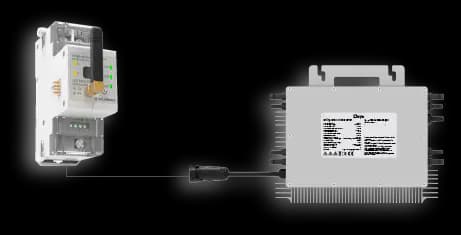

SUN-M130/160/180/200/220G4-EU-Q0-I

Micro Inverter |1300-2200W | Single Phase |  4 MPPT

SUN-M130/160/180/200/220G4-EU-Q0-I
  • SUN-M130/160/180/200/220G4-EU-Q0-I
    • IP67 protection degree, 10 years warranty
    • Bidirectional measurement can record electricity consumption data while also preventing backflow
    • Max. DC input current of 18A, adapt to 700W PV module
    • 4 MPP trackers, module level monitoring
    • Rapid shutdown function
    • Wireless wifi communication, no wiring required
    DOWNLOAD AREA
    >> Download Datasheet << >> Download Manual 1 <<
    >> Download Certificate <<

    utility-interactiveinverter_eudeclaration-sun-m130-220g4-eu-q0-231110001

    certificate_tuvmark+en62109

    certificate_spain+une217002

    certificate_spain+rd647+rd413+rd1699

    certificate_spain+nts

    certificate_red

    certificate_iec61727+iec62116

    certificate_germany+vde-ar-n4105-nsprotection

    certificate_germany+vde-ar-n4105

    certificate_france+en50549-10

    certificate_en50549-10

    certificate_ce+en62109

    Technical Specifications

    • SUN-M(130-220)G4-EU-Q0-I
    • Feedback
    Model SUN-M130G4-EU-Q0-I SUN-M160G4-EU-Q0-I SUN-M180G4-EU-Q0-I SUN-M200G4-EU-Q0-I SUN-M220G4-EU-Q0-I
    PV String Input Data
    Max. PV Input Power(W) 210-460(4 Pieces) 210-560(4 Pieces) 210-630(4 Pieces) 210-700(4 Pieces) 210-770(4 Pieces)
    Max. PV Input Voltage(V) 60
    Start-up Voltage(V) 20
    MPPT voltage range(V) 25-55
    Rated PV Input voltage(V) 42.5
    Max. Operating PV Input Current (A) 18+18+18+18
    Max. Input Short Circuit Current (A) 27+27+27+27
    No. of MPP Trackers/No. of String per MPP Tracker 4/1
    AC Output Side
    Rated AC Output Active Power(W) 1300 1600 1800 2000 2200
    Max.AC Output Apparent Power(VA) 1300 1600 1800 2000 2200
    Rated AC output current (A) 6/5.7 7.3/7 8.2/7.9 9.1/8.7 10/9.6
    Max.AC Output Current(A) 6/5.7 7.3/7 8.2/7.9 9.1/8.7 10/9.6
    Rated output voltage/range (V) 220/230 0.85Un-1.1Un
    Grid Connection Form L/N/PE
    Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
    Max. unit per branch 5 4 3 3 3
    Power Factor Adjustment Range 0.9 leading to 0.9 lagging
    Total Current Harmonic Distortion THDi <3%
    DC Injection Current <0.5%ln
    Efficiency
    Max. Efficiency 96.50%
    Euro Efficiency 96
    MPPT Efficiency >99%
    Equipment Protection
    DC Reverse Polarity Protection YES
    AC Output Overcurrent Protection YES
    AC Output Overvoltage Protection YES
    AC Output Short Circuit Protection YES
    Thermal Protection YES
    Insulation Impedance Detection YES
    Anti-islanding Protection YES
    Surge Protection Level TYPE II(AC)
    Interface
    Communication Interface Wi-Fi
    General Data
    Operating Temperature Range (°C) -40 to +65℃
    Permissible Ambient Humidity 0~100%
    Permissible Altitude (m) 2000m
    Noise (dB) ≤ 25
    Ingress Protection(IP) Rating IP 67
    Inverter Topology Isolated
    Over Voltage Category OVC II(DC),OVC III(AC)
    Cabinet Size（W*H*D）[mm] 311×250.5×36.5 (Excluding Connectors and Brackets)
    Weight [kg] 4.95
    Warranty [year] 10 Years
    Type Of Cooling natural cooling
    Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
     G98, VDE-AR-N 4105
    Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
