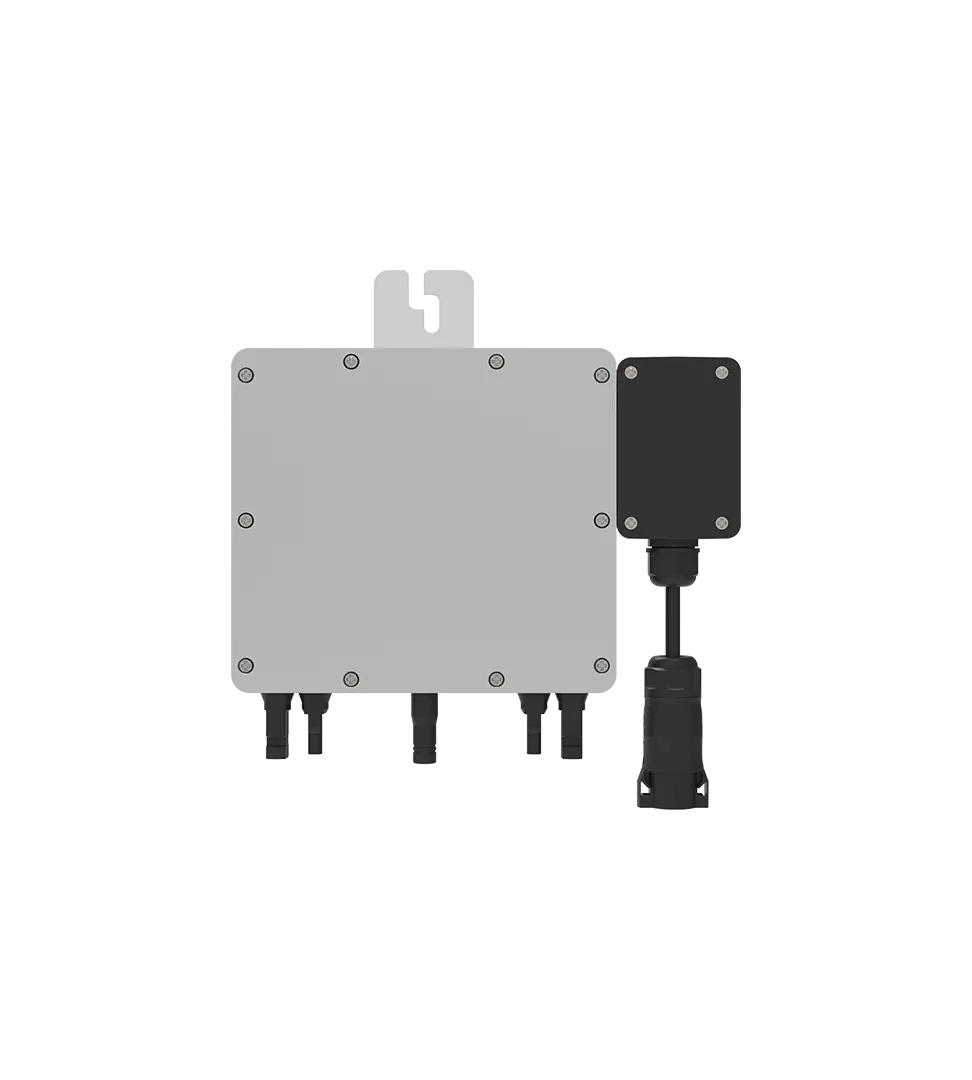

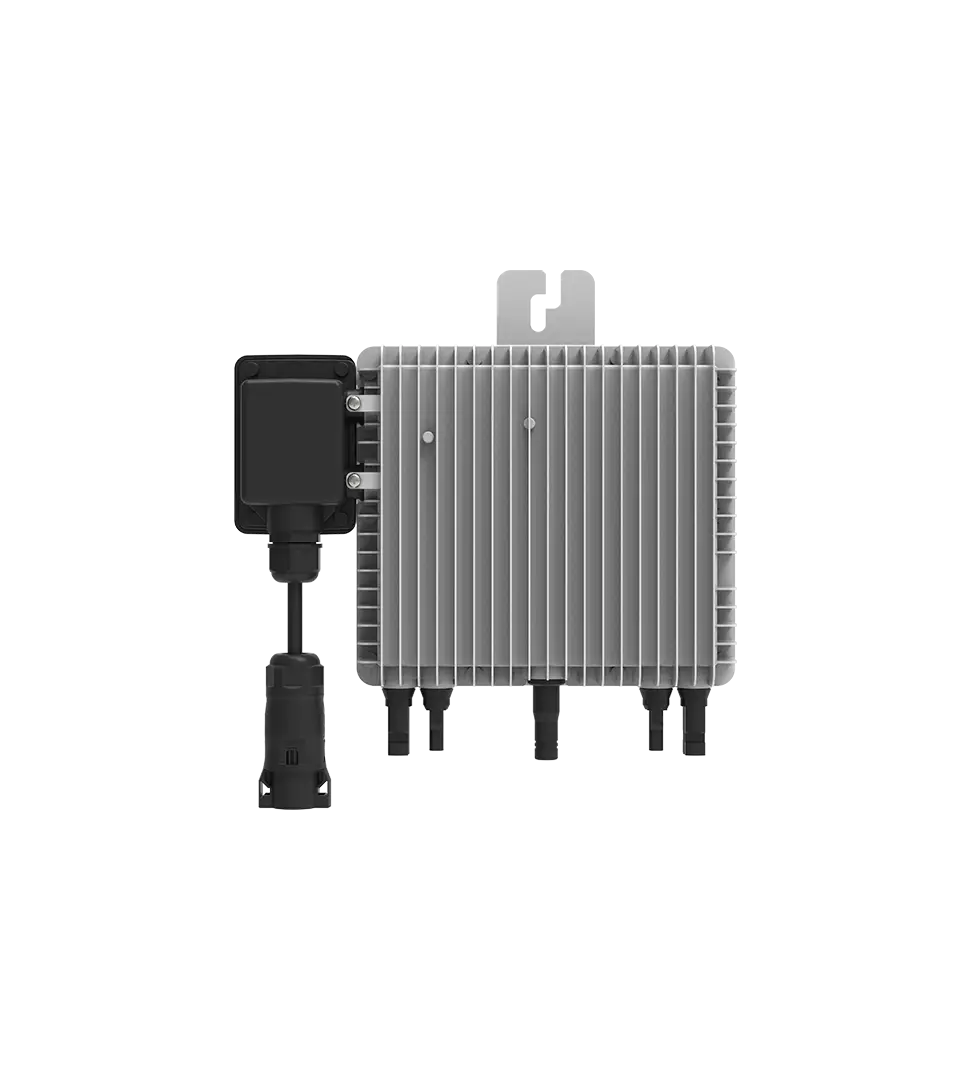

SUN-M60/80/100G4-EU-Q0

 Micro Inverter | 600-1000W | Single Phase | 2 MPPT

SUN-M60/80/100G4-EU-Q0
  • SUN-M60/80/100G4-EU-Q0
  • SUN-M60/80/100G4-EU-Q0
  • SUN-M60/80/100G4-EU-Q0
  • SUN-M60/80/100G4-EU-Q0
  • 2 MPP trackers, module level monitoring
  • IP67 protection degree
  • WIFI communication
  • Rapid shutdown function
  • Easy installation, suitable for quick-plug balcony PV system
  • <100ms AC fast discharge, compliant with new required standard DIN VDE  V 0126-95 (<200ms) to protect human safety
  • Complete NS protection with self-check function
  • External relay advantage with low temperature, long life,easier maintenance
  • 25 years design lifetime and 15 years warranty
  • With integrate WIFI
DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<
>> Download Certificate <<

certificate_germany+vde4105

certificate_germany+vde4105-nsprotection

certificate_red

eudeclaration-sun-m60-100g4-eu-q0-231012001

Technical Specifications

  • SUN-M(60-100)G4-EU-Q0
  • Feedback
Model SUN-M60G4-EU-Q0 SUN-M80G4-EU-Q0 SUN-M100G4-EU-Q0
PV String Input Data
Max. PV Input Power(W) 210-420(2 Pieces) 210-560(2 Pieces) 210-700(2 Pieces)
Max. PV Input Voltage(V) 60
Start-up Voltage(V) 20
MPPT voltage range(V) 25-55
Rated PV Input voltage(V) 42.5
Max. Input Short-Circuit Current (A) 19.5+19.5
Max. Operating PV Input Current(A) 13+13
No. of MPP Trackers/No. of String per MPP Tracker 2/1
AC Output Side
Rated AC Output Active Power(W) 600 800 1000
Max.AC Output Apparent Power(VA) 600 800 1000
Rated AC output current (A) 2.8/2.7 3.7/3.5 4.6/4.4
Max.AC Output Current(A) 2.8/2.7 3.7/3.5 4.6/4.4
Rated output voltage/range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Max. unit per branch 8 6 5
Power Factor Adjustment Range 0.9 leading to 0.9lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 96.5%
Euro Efficiency 96.0%
MPPT Efficiency >99%
Equipment Protection
DC Reverse Polarity Protection YES
AC Output Overcurrent Protection YES
AC Output Overvoltage Protection YES
AC Output Short Circuit Protection YES
Thermal Protection YES
Insulation Impedance Detection YES
Anti-islanding Protection YES
Surge Protection Level TYPE II(AC)
Interface
Communication Interface WiFi
General Data
Operating Temperature Range (°C) -40 to +65℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤ 25
Ingress Protection(IP) Rating IP 67
Inverter Topology Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size（W*H*D）[mm] 280.5*190*40（Excluding connectors and brackets）
Weight [kg] 3
Warranty [year] 15 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002, ,G98,VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
