100kW-2.5MW C&I ESS Solution Inverter Company, Supplier

MPPT Module	SUN-MPPT-L01-EU-AM8
PV String Input Data
Max. PV access power(kW)	200
Max. PV Input Power(kW)	160
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	200
MPPT Voltage Range (V)	180-750
Full Load MPPT Voltage Range（V）	450-750
Rated PV Input Voltage (V)	600
Max. Operating PV Input Current (A)	40+40+40+40+40+40+40+40
Max. Input Short-Circuit Current (A)	60+60+60+60+60+60+60+60
No. of MPP Trackers	8
Eﬃciency
Max. Eﬃciency	>99%
MPPT Eﬃciency	>99.9%
Equipment Protection
DC input reverse protection	YES
DC ARC protection	Optional
Anti-PID(Potential Induced Degradation)	Optional
DC Input Switch	YES
Surge Protection Level	TYPE II
General Data
Ingress Protection(IP) Rating	IP65
Over Voltage Category	OVC II
Cabinet Size[W×H×D] (mm)	543x198x700
Weight (kg)	41.75
Type Of Cooling	Intelligent air cooling
Safety EMC/Standard	IEC/EN 62109-1
DC Output Current(A)
DC Output VoltageRange ( V )	630-1000
Max. DCOutput Current ( A )	200

STS Module	SUN-STS500L
Grrid/PCS Side Data
Rated AC Input/Output Active Power（kW）	500
Rated AC Input/Output Current（A）	758/725
Rated Input/Output Voltage(V)	220/380, 230/400 (three phase)
Grid Connection Form	3L/N/PE
Rated Input/Output Grid Frequency	50Hz/60Hz
Load Side Data
Rated Output Active Power（kW）	500
Rated Output Current（A）	758/725
Rated Output Voltage(V)	220/380, 230/400 (three phase)
Grid Connection Form	3L/N/PE
Rated Output Grid Frequency	50Hz/60Hz
GEN Side Data
Rated AC Input Active Power（kW）	500
Rated AC Input Current（A）	758/725
Rated Input Voltage(V)	220/380, 230/400 (three phase)
Grid Connection Form	3L/N/PE
Rated Input Grid Frequency	50Hz/60Hz
General Data
Oﬀ grid switching time	<10ms
Ingress Protection(IP) Rating	IP20
Over Voltage category	OVC III
Cabinet Size[W×H×D] (mm)	543x575x671
Weight (kg)	108
Type Of Cooling	Natural Cooling
Safety EMC/Standard	IEC/EN 61439-1/-2

PCS Model	SUN-100K-PCS01HP3	SUN-125K-PCS01HP3
Battery Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	630-1000
Max. Charging Current (A)	175	200
Max. Discharging Current (A)	175	200
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
DC Input Data
DC Input Voltage Range(V)	630-1000
Max. DC Input Current(A)	200
AC Input/Output Data
Rated AC Input/Output Active Power (kW)	100	125
Max. AC Input/Output Apparent Power (kVA)	110	125
Rated AC Input/Output Current (A)	151.6/145	189.4/181.2
Max. AC Input/Output Current (A)	166.7/159.5	189.4/181.2
Rated Input/Output Voltage/Range(V)	220/380, 230/400 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	-1~1
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Eﬃciency
Max. Eﬃciency	98.5%
Euro Eﬃciency	97.8%
Equipment Protection
	AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, Anti - islanding Protection, Insulation Impedance Detection,Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
LCD/LED display	LCD
Communication Interface	WIFI, RS485, CAN, Meter
General Data
Operating Temperature Range(℃)	-40℃to -60℃,>45℃ Derating
Permissible Ambient Humidity	0-95%
Permissible Altitude	4000m
Noise	<75dB
Ingress Protection(IP) Rating	IP 65(PCS Module)
Cabinet Size[W×H×D] (mm)	543x310x775（Excluding connectors and brackets）
Weight (kg)	81.86
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety/EMC Standard	IEC/EN 62477-1

Model	BOS-B Pro-A3
Main Parameter
Battery Module Energy ( kWh )	16.08
Battery Module Nominal Voltage ( V )	51.2
Battery Module Capacity ( Ah )	314
Module Weight Approximate ( kg )	126
Battery Module Qty In Series ( Optional )	5~16
Matching Mode	PCS:14-16 units for PCS on-grid applications, 15-16 units for PCS off-grid applications
	PCS + MPPT: 16units (on/off-grid) for MPPT Open-Circuit Voltage ≤800V;15 units (on/off-grid) for MPPT Open-Circuit Voltage ≤750V; 14units (on-grid) for MPPT Open-Circuit Voltage ≤ 700V
Max.System Nominal Voltage ( V )	819.2
Max.System Energy ( kWh )	257.23
Max.System Usable Energy ( kWh )	231.51
Max.Charge/Discharge Current ( A)	180
Other Parameter
Operating Temperature ( ℃ )	Charge ：0 ~ 55 Discharge ：-20 ~ 55
Storage Temperature ( ℃ )	0 ~ 35
Thermal Management	Smart fan cooling
LCD Display	SOC / Fault Code
Status Indicator	Yellow : Battery High Voltage Power On Red : Battery System Alarm
Communication Port	TCP / RS485 / CAN
Communication With BMS	CAN
Humidity	5% ~ 85%
Altitude	≤3000m
IP Rating of Enclosure	IP20
Noise ( dB )	TBD
System Dimension ( W × H × D, mm )	2150 × 1305 × 800
System Weight Approximate ( kg )	2240
Installation Location	Rack Mounted
Recommend Depth of Discharge	90%
Cycle Life	25±2°C, 0.5C / 0.5C, EOL70%≥6000
Warranty Period	10 years
Certiﬁcation	CE / IEC62619 / IEC62040 / UN38.3

Product Search

Share

Exit Menu

Products >>

100kW-2.5MW C&I ESS Solution

100/125kW PCS + 200kW MPPT + 500kW STS

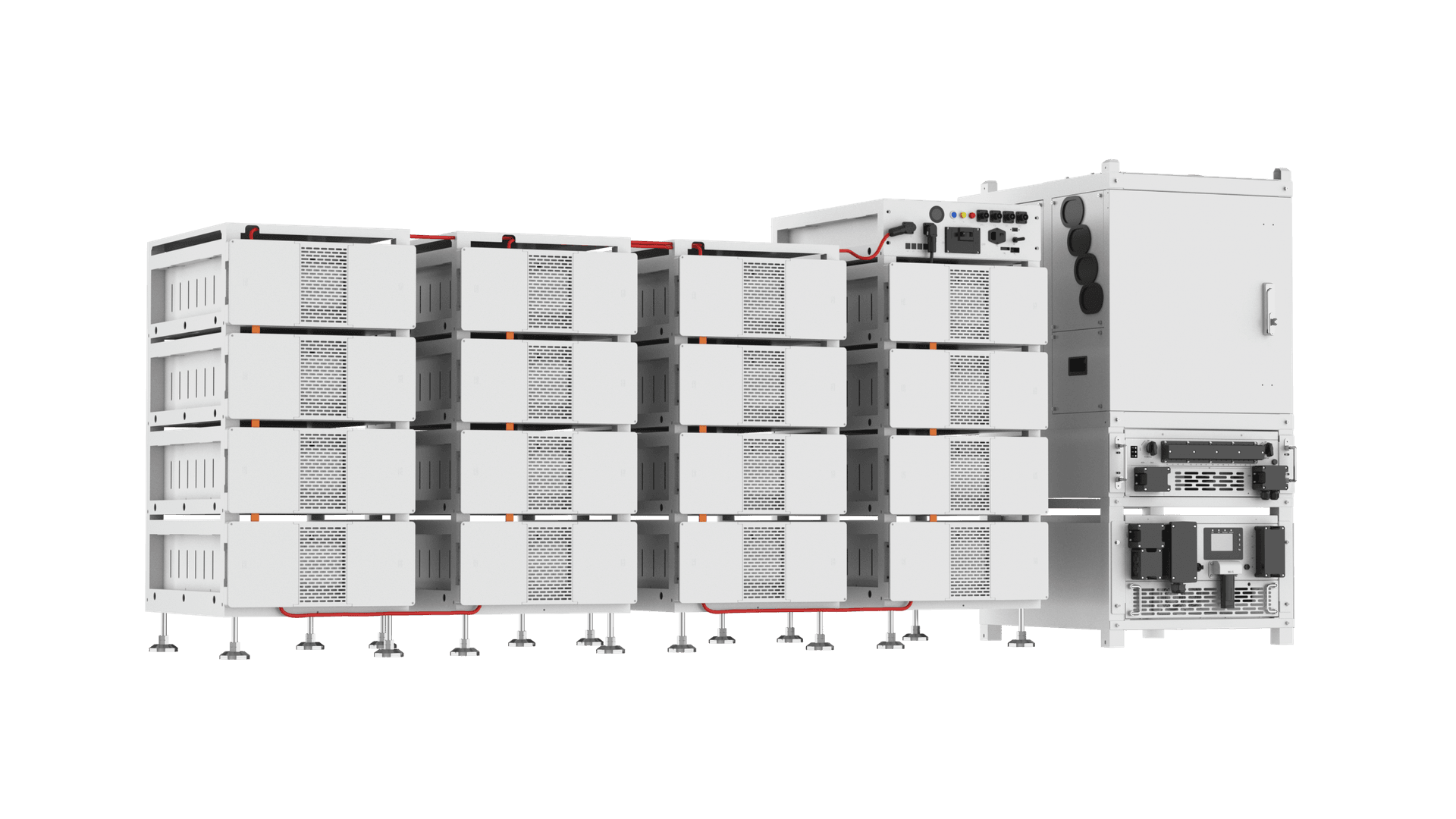

BOS-B Pro-A3 Battey, 257kWh | 314Ah
