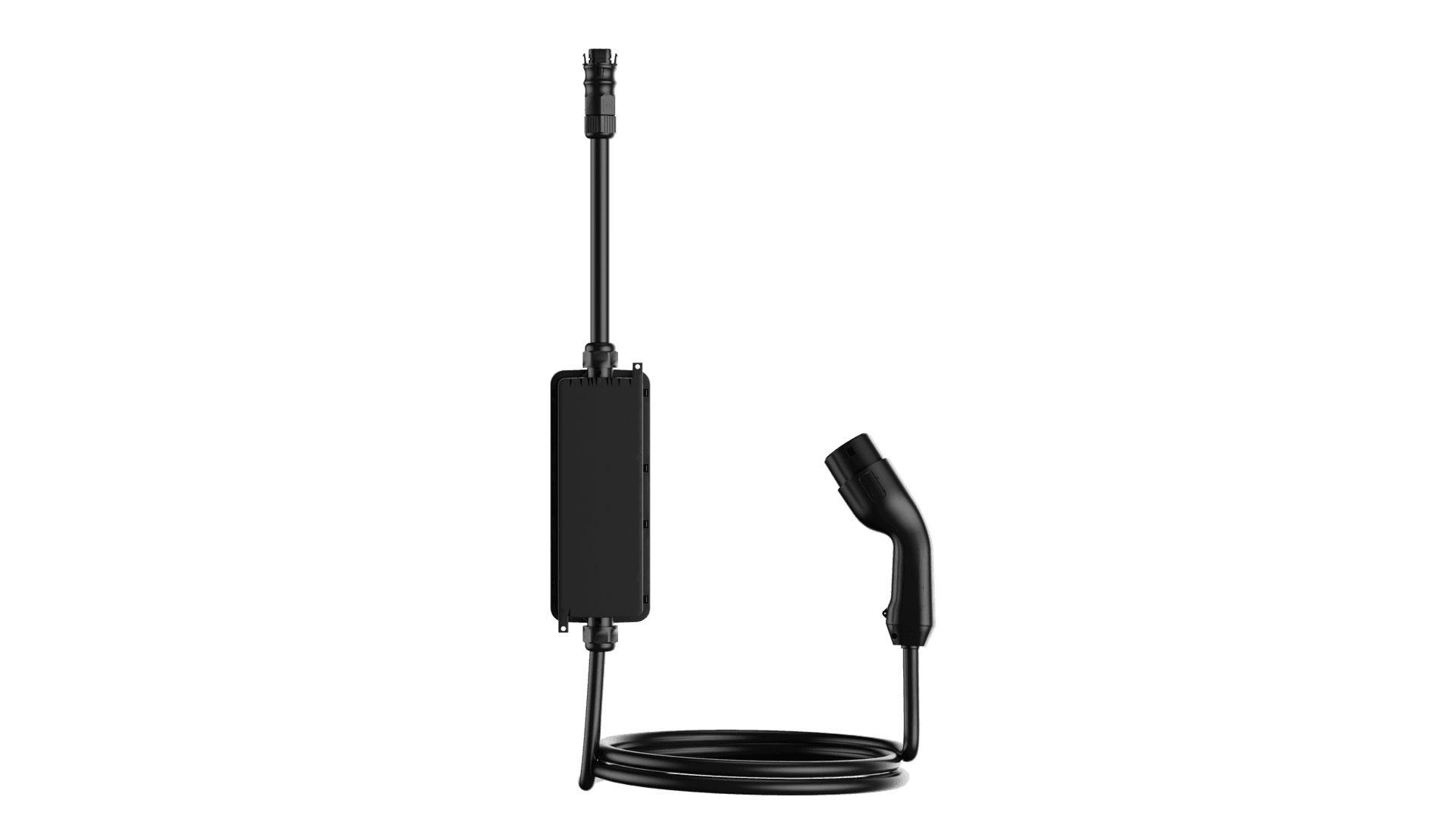

Smart EV Charger

Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.

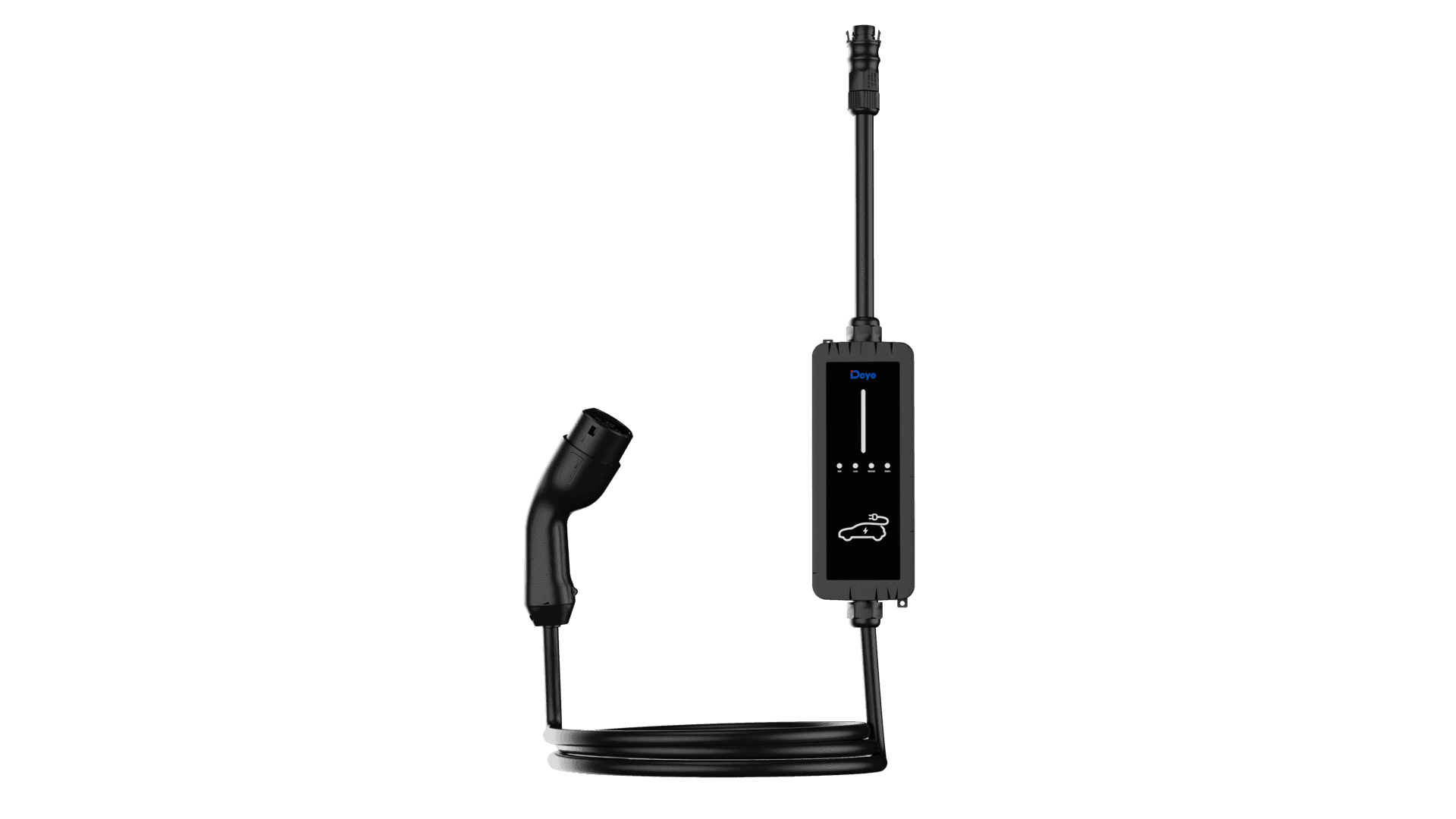

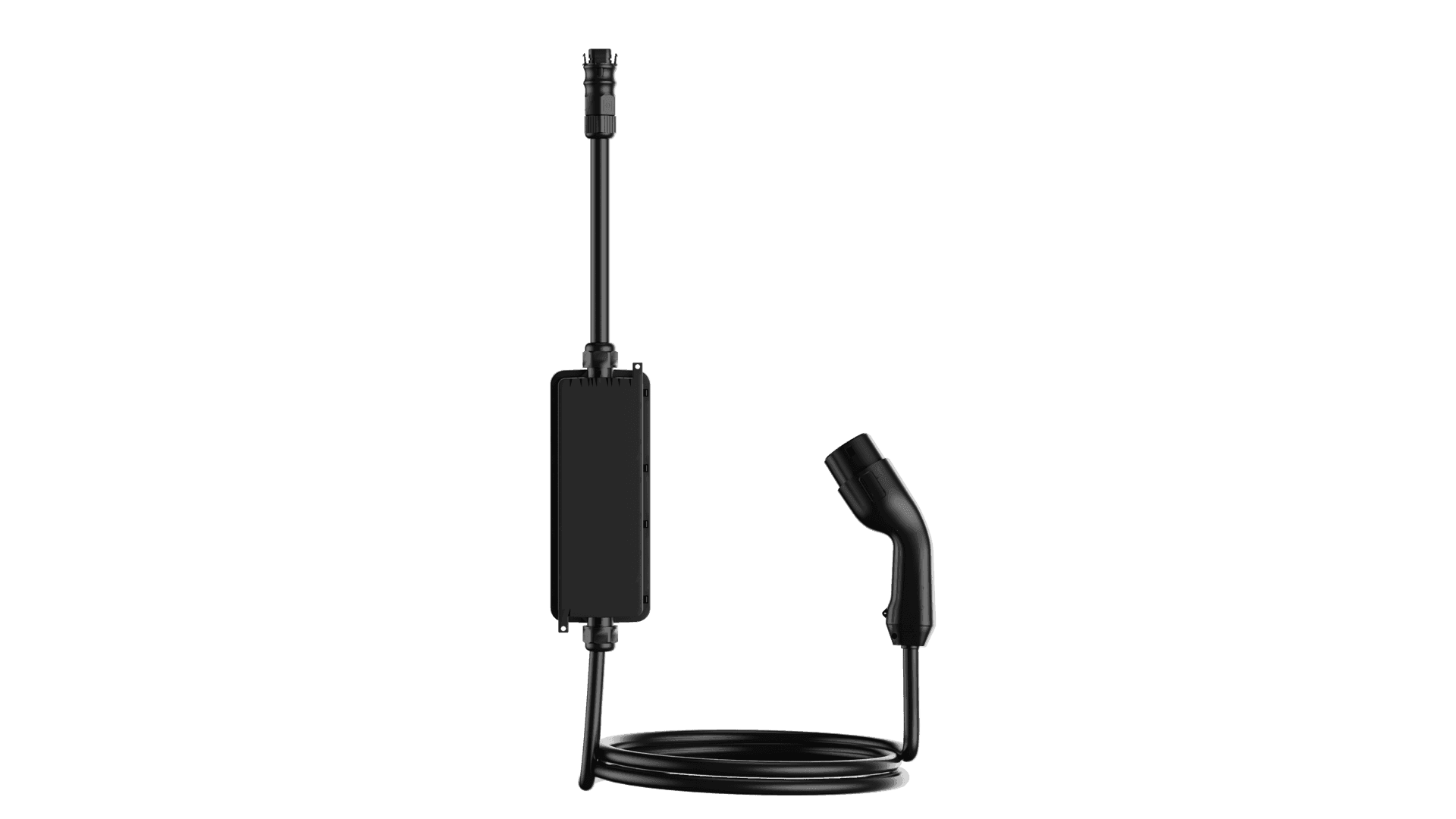

Smart EV Charger
  • Smart EV Charger
  • Smart EV Charger
  • Smart EV Charger
  • Smart EV Charger

  • Type B leakage & 6mA DC fault protection

  • IP66 rated for outdoor use

  • Auto charging via time and solar-only mode

  • Real-time power monitoring and control via Deye Cloud

  • Supports 7/11/22kW multi-power charging

  • Supports single-phase & three-phase power charging

  • Low latency

  • Long-range communication

  • Offline operation

DOWNLOAD AREA
>> Download Datasheet << >> Download Manual 1 <<

Technical Specifications

  • SUN-EVSE11K01-EU-AC

  • SUN-EVSE22K01-EU-AC

  • Feedback
Model SUN-EVSE11K01-EU-AC SUN-EVSE22K01-EU-AC
Product Parameter
Input Voltage/Range (V)   230/400 230(single phase), 230/400(three phase)
Connection Mode 3L+N+PE L+N+PE,3L+N+PE
Input Current (A) 16  32
Input Frequency/Range 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
Maximum Output Power (kW)  11 7(single phase)/ 22(three phase)
Starting Method

Plug and Play /Scheduled Charging
Equipment Protection
Over Temperature Protection Yes
Low Temperature Protection Yes
Over Voltage Protection Yes
Under Voltage Protection Yes
Short Circuit Protection Yes
Over Load Protection Yes
Earth Fault Protection Yes
Leakage Current Protection DC 6mA
Surge Protection Level TYPE II
General Data
Operating Temperature Range (°C) -40 to +55℃
Permissible Ambient Humidity 5%~95% No condensation
Permissible Altitude (m) <3000
Noise (dB) ≤25
Ingress Protection(IP) Rating IP 66
Cabinet Size (WxHxD mm) 104x264x57.5
Weight (kg) 3.7
Gun Cable Length (m) 4.2
Number Of Charging Guns 1
MTBF 100,000h
Safety EMC/Standard EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021
Interface
Communication Mode LoRa/Wi-Fi/BLE
