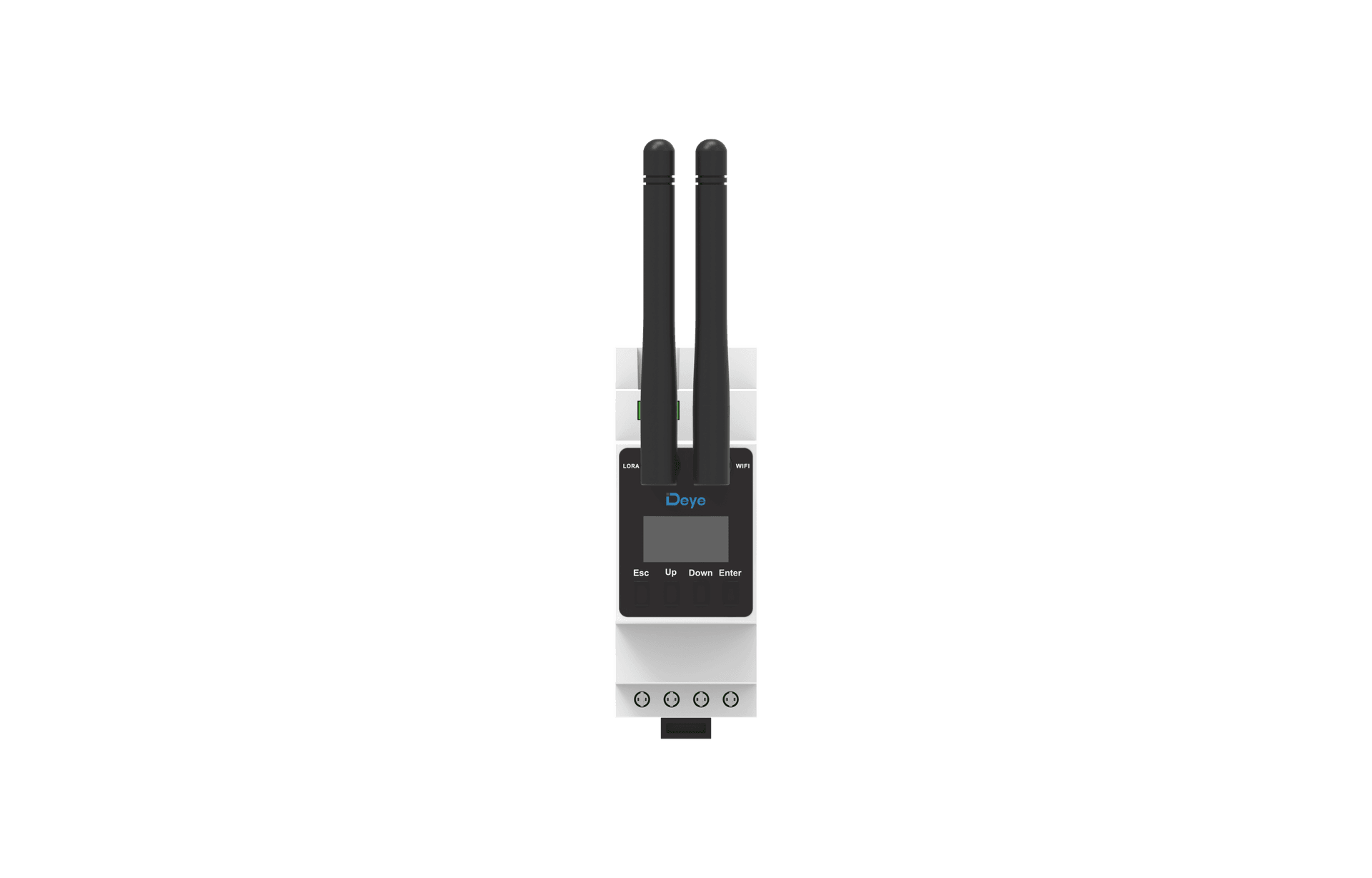

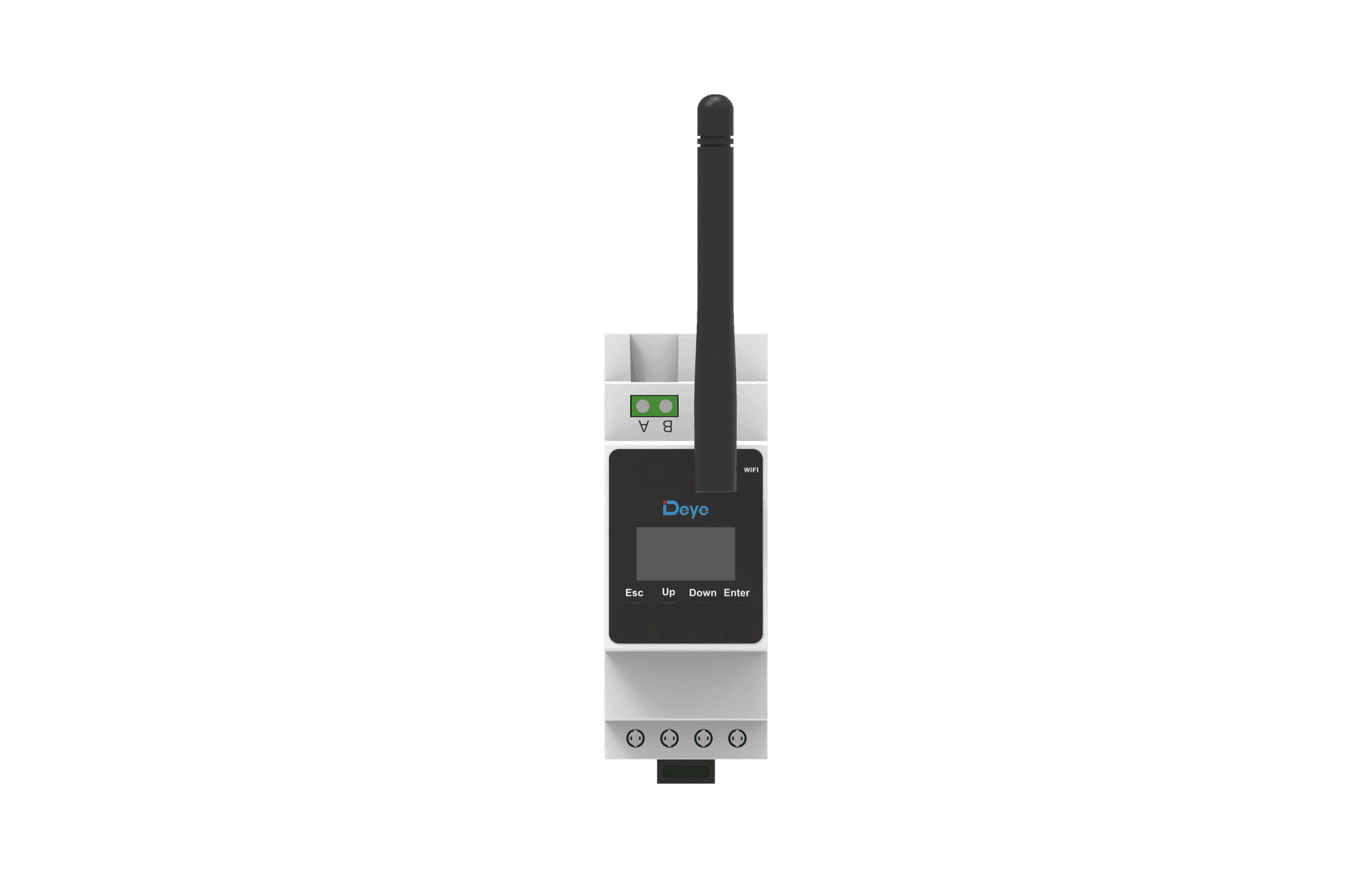

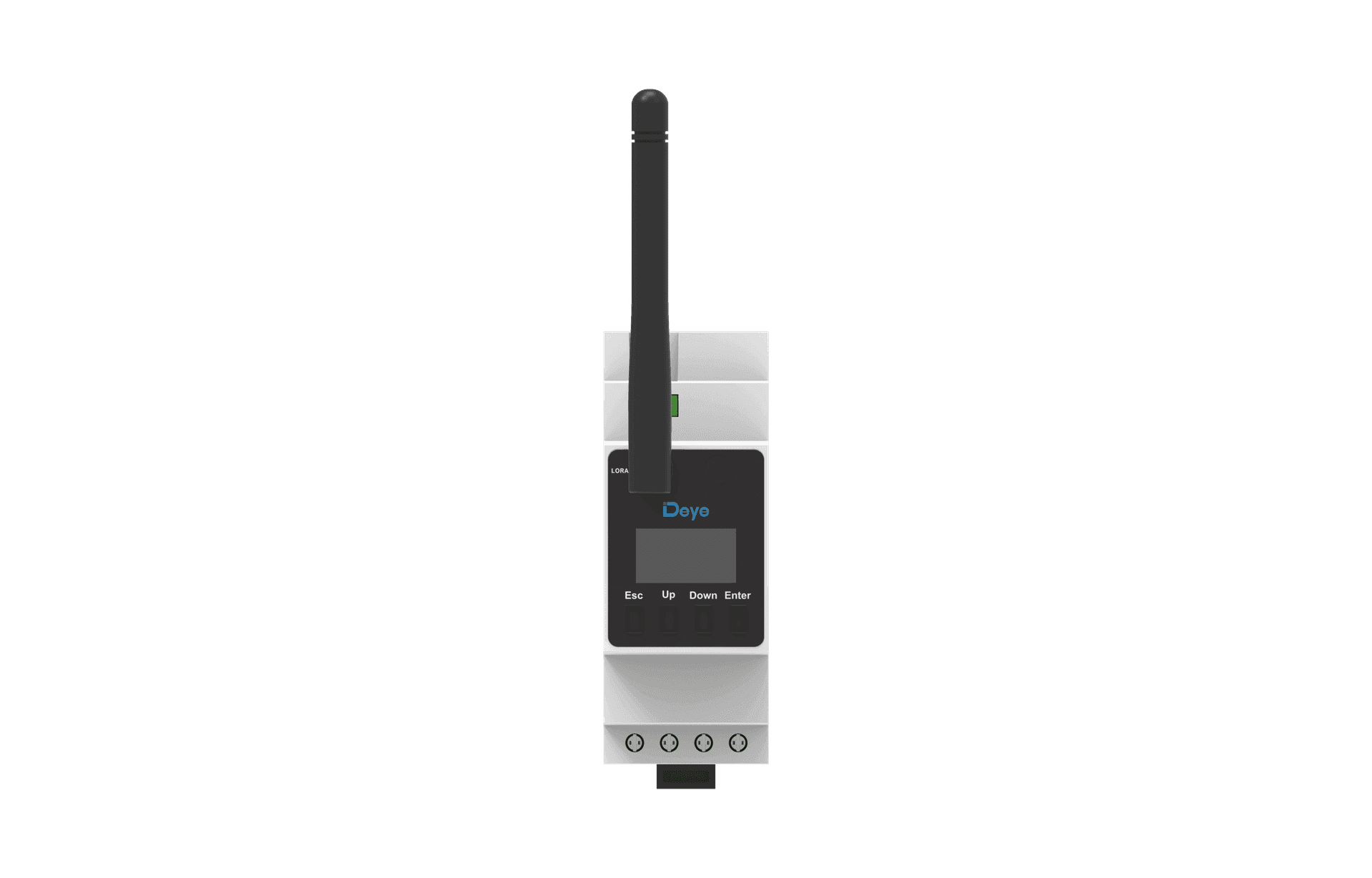

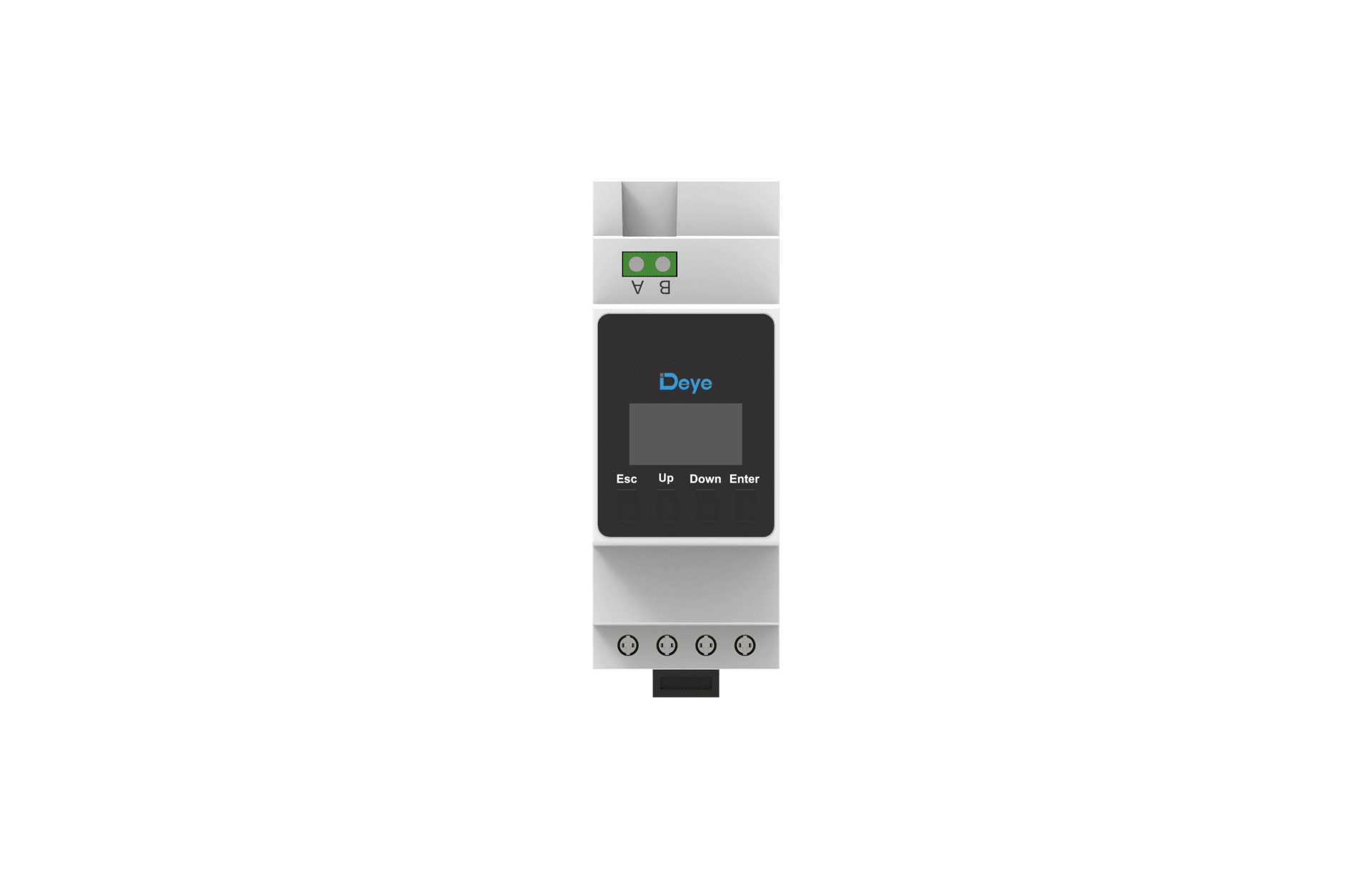

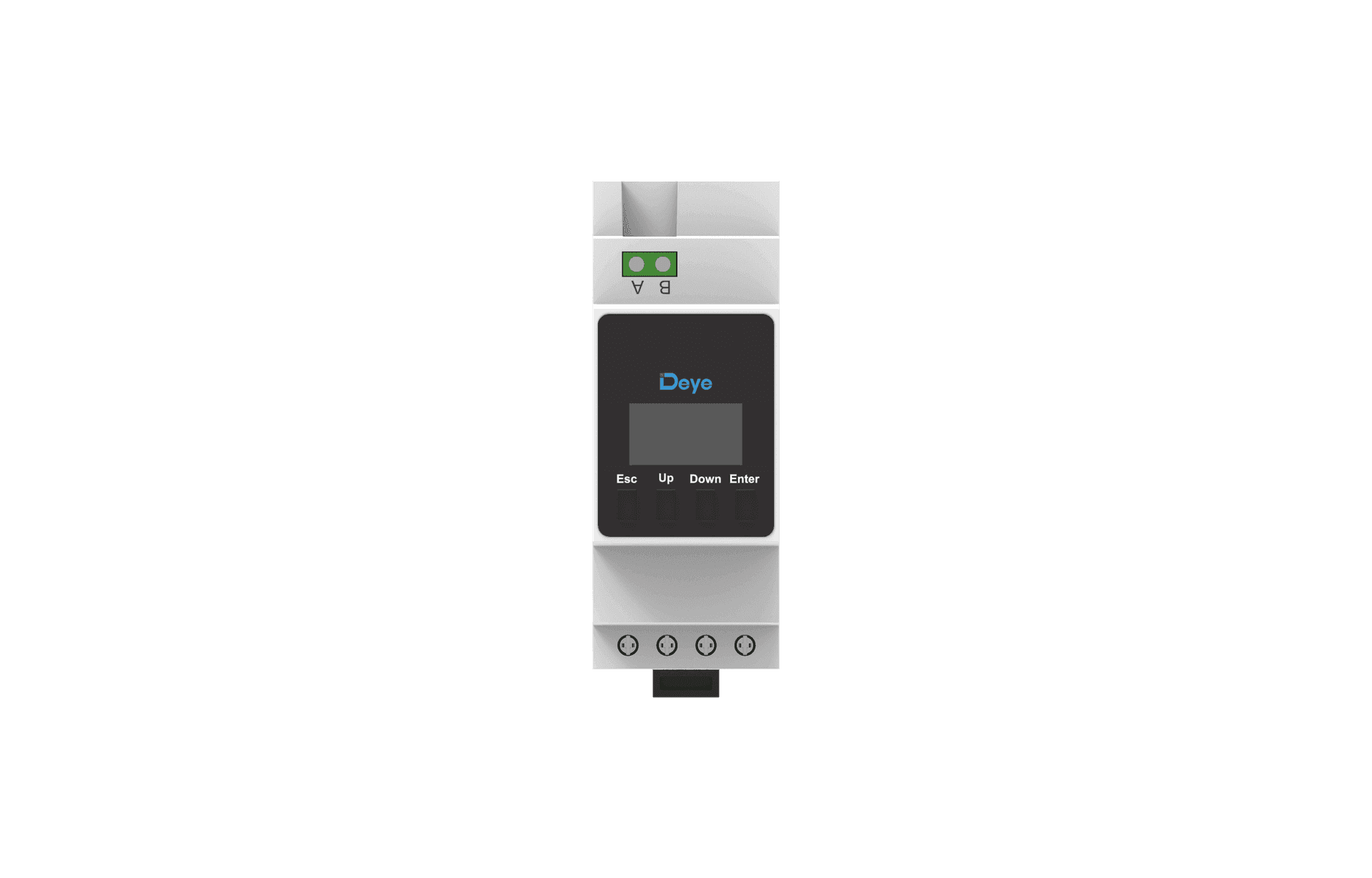

Wireless CT 02

Model	SUN-SMART-CT02	SUN-SMART-CT02-W	SUN-SMART-CT02-L	SUN-SMART-CT02-WL
Electrical parameters
Connection Type	L1/N(Single phase), L1/L2/L3/N(Three phase) L1/L2/N (split phase)		L1/N(Single phase), L1/L2/L3/N(Three phase)
CT(Rated Secondary Output)	50mA/5A
Operation Voltage	85~300V a.c.(L-N)
Rated Frequency/Range	50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Self Consumption Power	≤2W
AC voltage withstand	4KV/1min
Accuracy
Voltage	±0.1V
Current	±0.01A
Frequency	±0.01Hz
Power	±1W
Communication and Display
Communication Interface	RS485	WIFI/RS485	LoRa/RS485	LoRa/RS485/WI-FI
Lora Communication Distance	/	/	=200m(Barrier free)
Display	LCD
Display Data	Voltage、Current、Active power、Reactive power、Frequency、Power Factor、Energy
General Data
Operation Temperature	-40 to +60℃
Operation Humidity	0-75%
Ingress Protection(IP) Rating	IP20
Altitude	≤3000
Mounting	DIN-Rail Mounting
Size	36x94x64mm
Weight	0.12kg
Warranty	5 Years
Certification standards	IEC/EN 61010-1
Lora Data
Frequency Range	/	/	863MHz-870MHz
Antenna	/	/	External Antenna
Antenna Gain	/	/	0.79dBi@868MHz
WIFI Data
Frequency Range	/	2412MHz-2484MHz	/	2412MHz-2484MHz
Antenna	/	External Antenna	/	External Antenna
