Stick Logger

Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging configuration to collect operation and power generation data from inverters.It pairs with solarman professional platform to enable remote PV system monitoring and to realize distributed power station management with lower cost and higher efficiency.

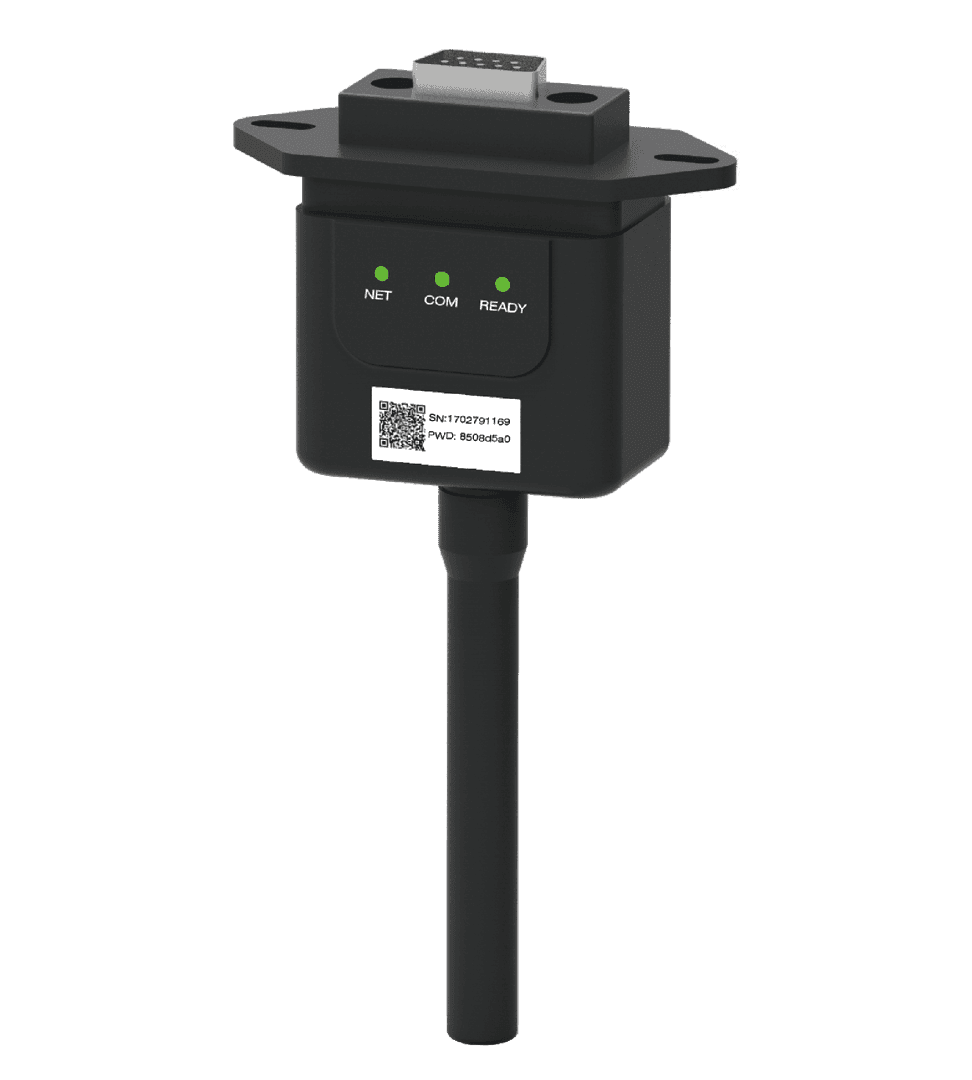

Stick Logger
  • Stick Logger

    • Plug & Play for effortless installation

    • No external power required

    • IP65-rated for reliable outdoor use

    • External light indicator, logger status at a glance

    • Real-time yield monitoring via Deye Cloud

    • Independent design safeguards internal components

    • External design simplifies replacement

    DOWNLOAD AREA
    >> Download Datasheet << >> Download Manual 1 <<

    Technical Specifications

    • LSW-6-A525530

    • LSW-5A5253

    • LSW-3A5251-C

    • LSE-4WA5252

    • LSE-3
    • Feedback
    Model LSW-6-A525530 LSW-5A5253 LSW-3A5251-C LSE-4WA5252
    Remote Communication Interface WIFI WIFI WiFi Internet
    Working Frequency 2.400 GHz ~ 2.4835 GHz 2.412 GHz~2.472 GHz 2.412 GHz~2.472 GHz 2.412GHz~2.472GHz
    Satellite Positioning / / / /
    Antenna / Integrated PCB antenna External WiFi stick antenna /
    Data Interface RS232 RS232 RS232 RS232
    Working Voltage DC5V-12V(±5%) DC5V ~DC12V DC5V~DC12V DC 5-12V
    Working Power 2W 1.5W 1.5W 1.5W
    SIM Card / / / /
    Memory 8MB FLASH Default configuration: 8 MB of FLASH 2M Default configuration: 4 MB of flash memory
    Working Temperature -30°C~70°C
    Working Humidity 10%~90% relative humidity, non-condensing
    No.of Connections One
    Serial Communication Rate 9600 bps (adjustable from 1200 to 115200 bps) 9600 bp Default setting: 9600 bps (Adjustable from 1200 to 115200 bps) Default setting: 9600 bps (Adjustable from 1200 to 57600 bps)
    Data Acquisition Interval Default setting: 5 minutes
    User Configuration App Configuration AT+ command set AT+ command set AT+ command set
    Local web page configuration Local web page configuration Local web page configuration
    Remote server Remote server Remote server
    Bluetooth Remote server Bluetooth
    Firmware Upgrade Local upgrade Remote upgrade Local web page update Remote update Local web page update Remote update Local web page update Remote update
    Others Real-time Control Real-time control, breakpoint resume Real-time Control Data resuming Real-time control, breakpoint resume

    Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging configuration

    to collect operation and power generation data from inverters.

    It pairs with Deye Cloud professional platform to enable remote PV system monitoring and to realize distributed power station management

    with lower cost and higher efficiency.
