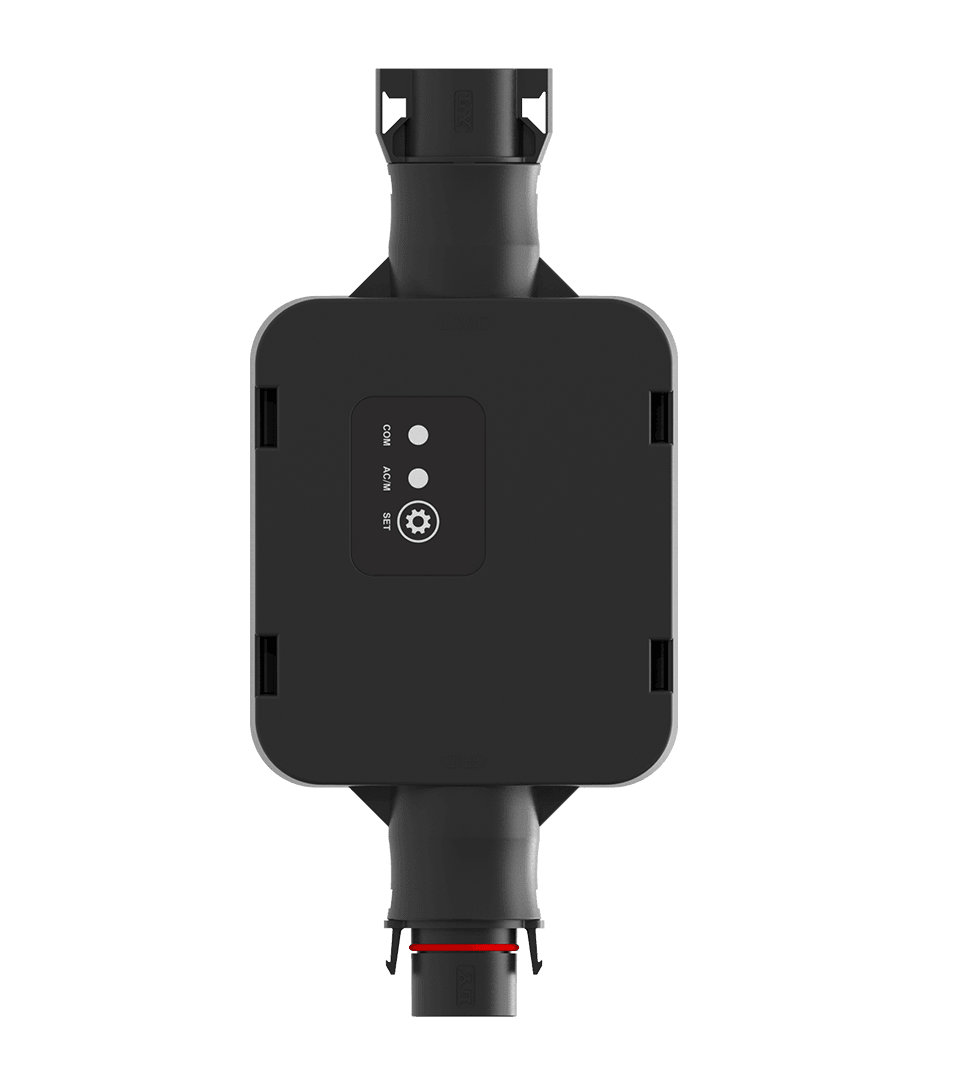

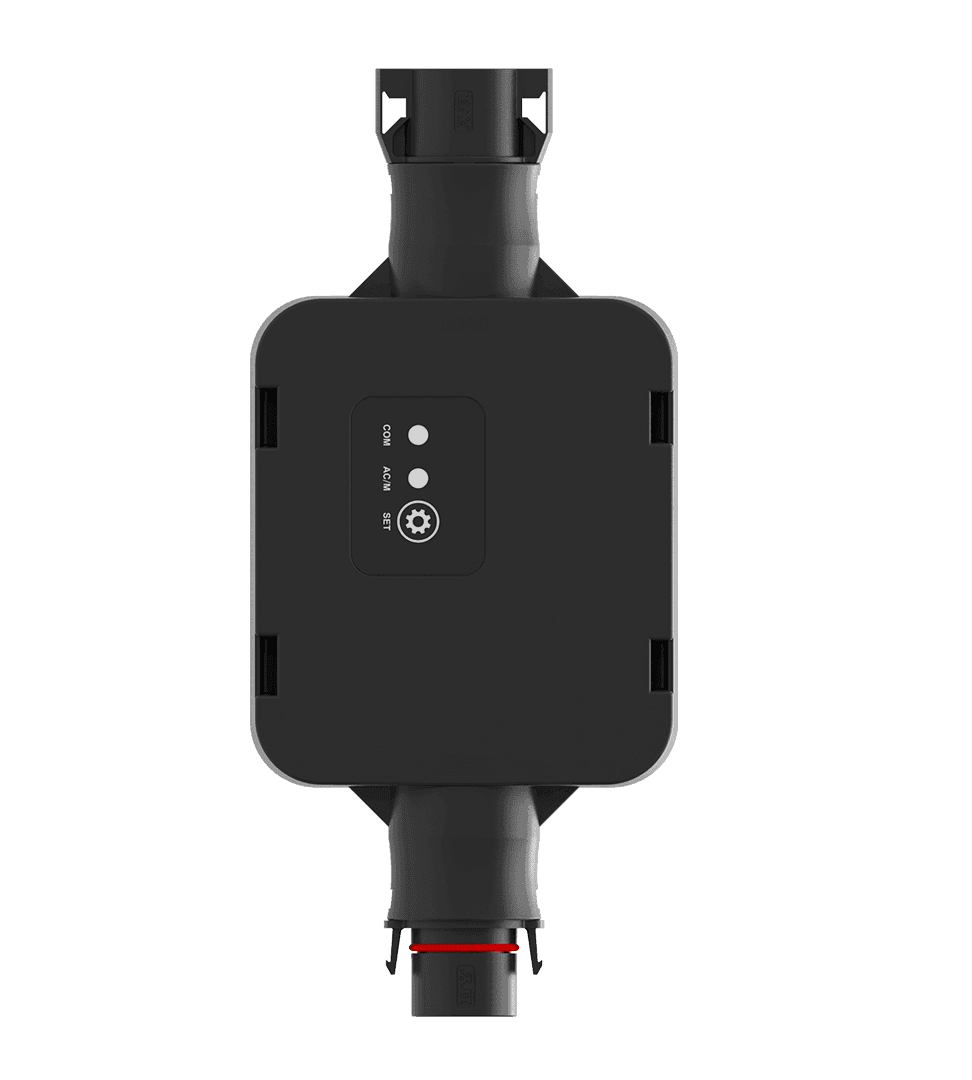

SUN-SMART-SWITCH02P3

SUN-SMART-SWITCH02P3
  • SUN-SMART-SWITCH02P3
    • Low latency
    • Long-range communication
    • Offline operation
    • Class I protection and multiple electrical safeguards
    • Flame-retardant housing
    • Single-phase & three-phase system compatibility
    • Custom strategies by time, SOC & grid status
    • Real-time power monitoring and control via Deye Cloud
    • Easily define critical and non-critical loads
    DOWNLOAD AREA
    >> Download Datasheet <<

    Technical Specifications

    • SUN-SMART-SWITCH02P3

    • Feedback
    Model SUN-SMART-SWITCH02P3
    Electrical Parameters
    Voltage Range 94-238V a.c. (Phase voltage)
    Connection Type L1/N (single phase), L1/L2/L3/N (three phase)
    Maximum current 25A a.c. (Phase current)
    Frequency and Range 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
    Connection Connector plug-in type
    Communication
    Communication Model LoRa
    Lora Communication Distance ≈200m (Barrier free)
    Basic Parameters
    Working Temperature Range -40 to +45°C
    Allow Environmental Humidity 0-100% RH
    Ingress Protection (IP) Rating IP65
    Protection Level CLASS I
    Allowable Altitude ≤4000m
    Product size (WxHxD) 96.7x204.7x37.7mm
    Weight 0.4kg
    Warranty 2 Years
    Standard IEC/EN 61010-1
    LoRa Parameters
    Frequency Range 863MHz-870MHz
    Antenna Internal antenna
    Antenna Gain 0.38dBi@868MHz
