Smart Plug

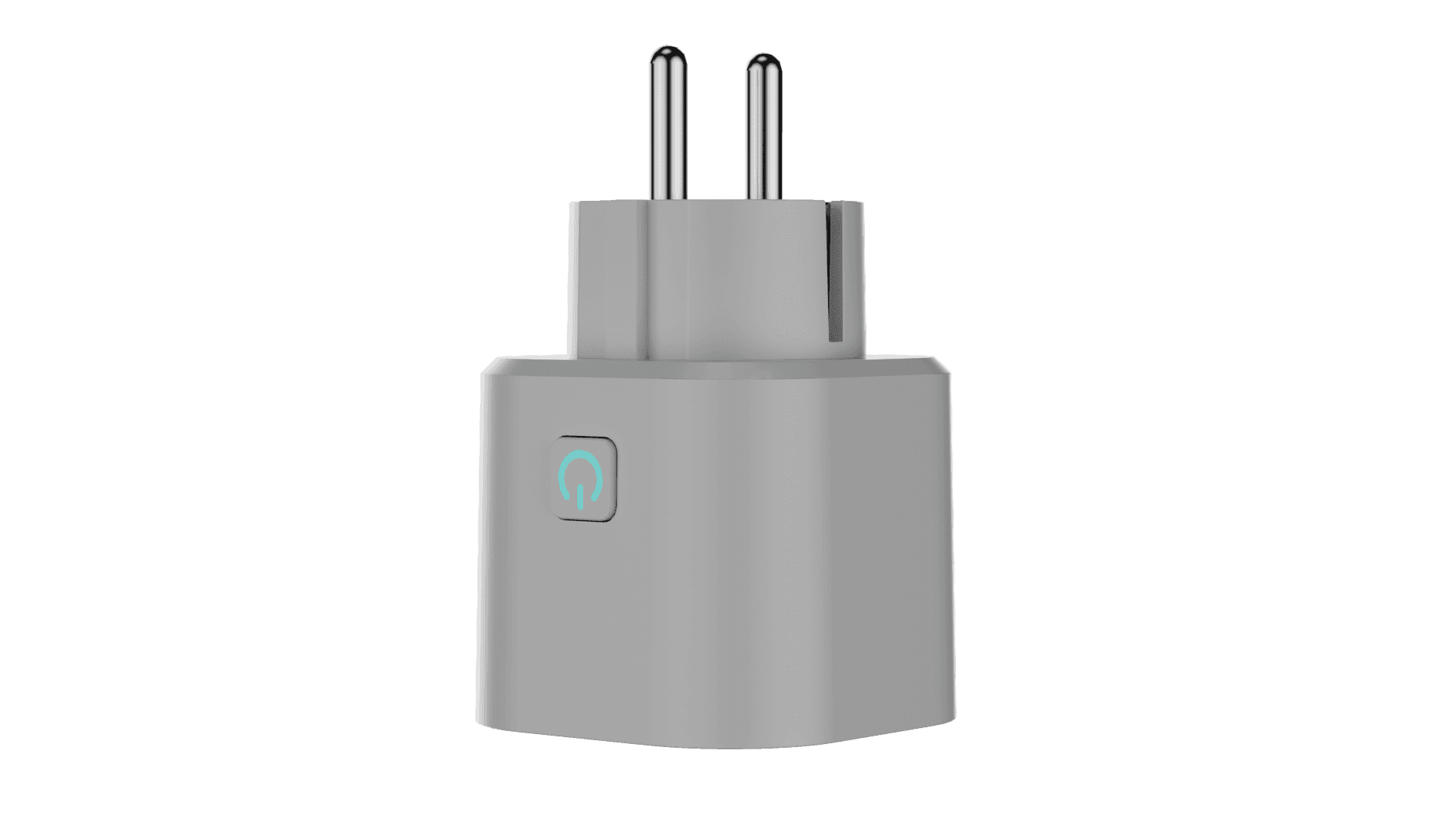

Smart Plug
  • Smart Plug
  • Smart Plug
  • Smart Plug
  • Smart Plug
  • Smart Plug
  • Smart Plug
  • Low latency
  • Long-range communication
  • Offline operation
  • Plug in for instant smart upgrade
  • Custom strategies by time, SOC & grid status
  • Real-time power monitoring and control via Deye Cloud
  • Easily define critical and non-critical loads
  • Class I protection and multiple electrical safeguards
  • Flame-retardant housing
DOWNLOAD AREA
>> Download Datasheet <<

Technical Specifications

  • SUN-SMART-PLUG01-F

  • Feedback
Model SUN-SMART-PLUG01-F
Electrical Parameters
Rated voltage 220-250V a.c.
Maximum current 16A a.c.
Frequency and Range 50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Connection Plug-type
Communication
Communication Model LoRa
Lora Communication Distance ≈200m (Barrier free)
Basic Parameters
Working Temperature Range -40 to +60°C
Allow Environmental Humidity 0-95%RH
Ingress Protection (IP) Rating IP20
Protection Level CLASS I
Allowable Altitude ≤3000m
Product size (WxHxD) 51.2x51.2x64mm
Weight 0.08kg
Warranty 5 Years
Standard VDE 0620-2-1; EN 61058
LoRa Parameters
Frequency Range 863MHz-870MHz
Antenna Internal antenna
Antenna Gain 0.3.23dBi@868MHz
