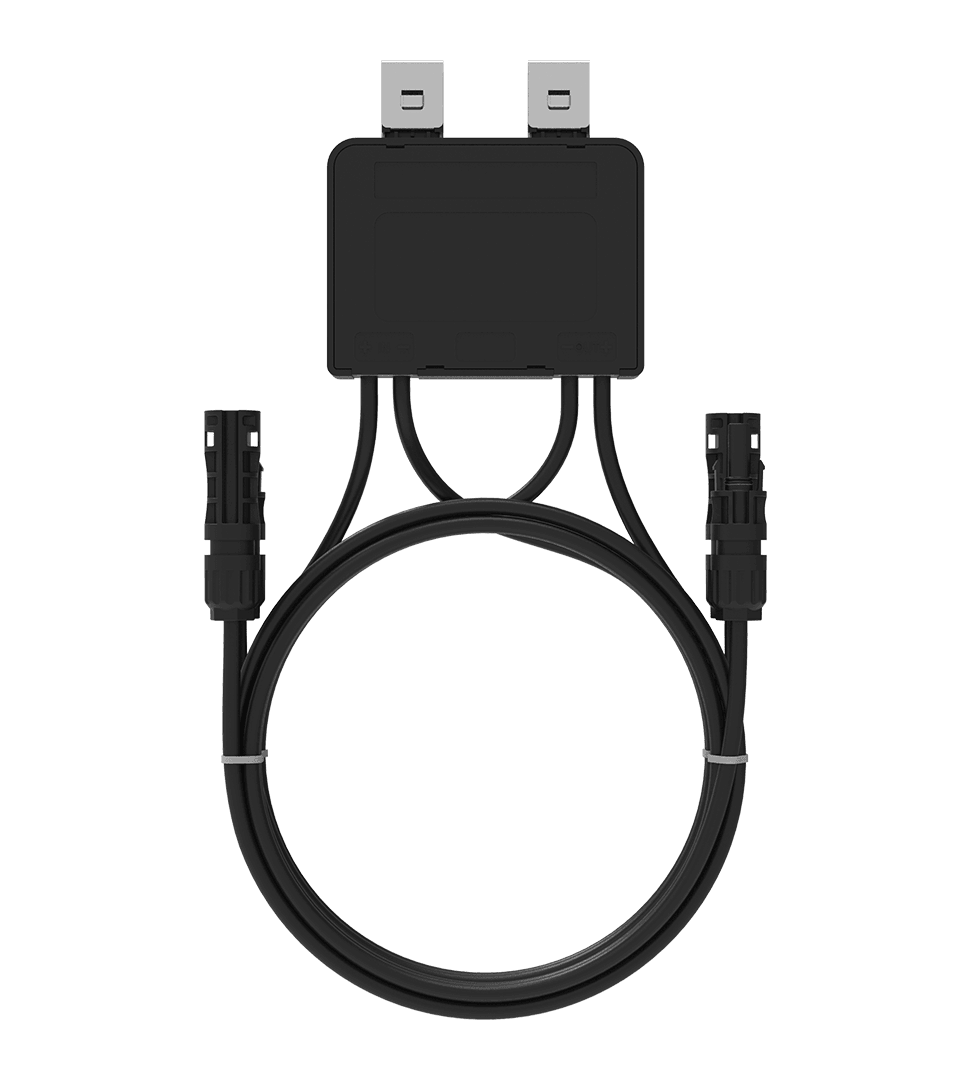

SUN-XL02-B

Increase in power generation capacity:

Module-level maximum power point tracking (MPPT) can increase

power generation by 5% to 25%.

Monitoring:

Real-time monitoring of the operation status of each photovoltaic

module allows for timely detection of issues and precise

troubleshooting[1].

Stable and reliable communication:

Using photovoltaic cables carrier communication eliminates the

need for additional communication cables[1].

Rapid shutdown function:

Quickly reduces the DC voltage of the photovoltaic array to a safe

range[1].

*This function is only available when used with Optimizer Concentrators.

Model	SUN-XL02-B
Project	Parameter
Maximum input power(W)	700W
Maximum input voltage(V)	80V
MPPT voltage range (V)	12-80V
Maximum input current (A)	15A
Peak conversion efﬁciency	99.5%
Installation speciﬁcations dimensions(mm)	105×105×22mm
Weight (g)	660g
Cable	4.0mm² input 70cm output 100cm
Connector	MC4 Or Compatible with MC4
Operating temperature range	-40℃~ +85℃
Level of protection	IP68
Product certiﬁcation	CE
Communication mode	PLC
